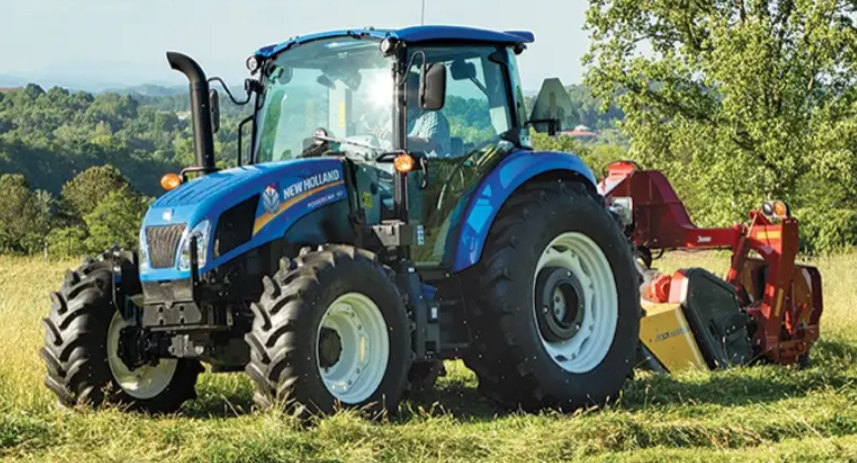

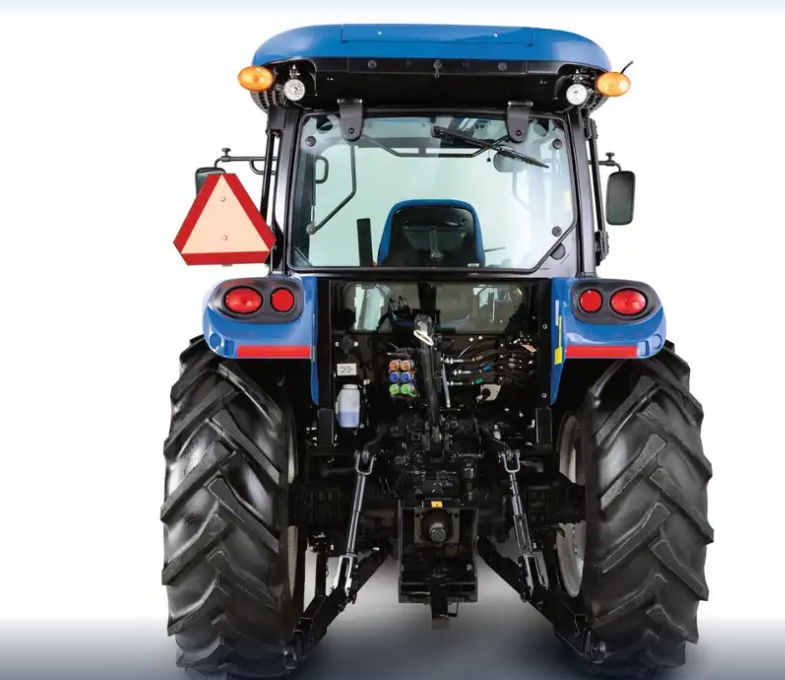

New Holland WORKMASTER 70 – Utility Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
WORKMASTER 70 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel (B7 Biodiesel Compatible) |
|
Application |
Agricultural Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
70 HP (Gross); 62 HP (PTO) |
|
Engine Type |
FPT R753 (3-cylinder, Turbocharged) |
|
Engine Capacity |
2.2 Litres (136 cu in) |
|
Engine Nominal Speed |
2600 RPM |
|
Transmission Type |
8x8 Gear with Synchronized Shuttle |
Suspension & Brakes
|
Specification |
Details |
|
Emissions Compliance |
Tier 4B/Final |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
9.5x24 inches (R1 Agricultural) |
|
Standard Tyres Rear |
14.9x28 inches (R1 Agricultural) |
Components & Features
|
Specification |
Details |
|
Drive |
2WD or 4WD |
|
Rear PTO |
540 RPM (Independent) |
|
Hydraulics Type |
Open Centre with Dual Tandem Pumps |
|
Hydraulic Pump |
45 l/min (12 gal/min) Implement; 21 l/min (5.5 gal/min) Service |
|
Max Valves (Rear) |
1 (Standard); 2 (Optional) |
|
Max Lift Capacity (Rear) |
1225 kg (2701 lb) at 0.6 m |
|
Overall Length |
3404 mm (134 in) with 4WD |
|
Total Height |
2479 mm (97.6 in) to Top of ROPS |
|
Wheelbase |
1970 mm (77.6 in) with 4WD (ROPS) |
|
Total Weight |
2995 kg (5059 lb) with 4WD (ROPS) |
