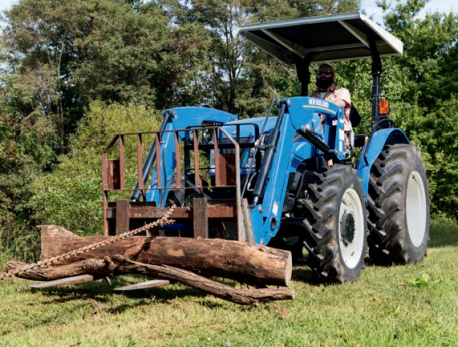

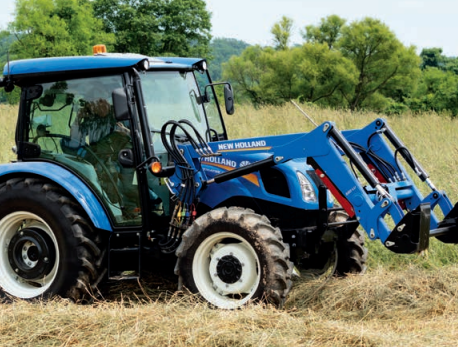

New Holland WORKMASTER 55 – Utility Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
WORKMASTER 55 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
54 HP (Gross); 40 HP (PTO) |
|
Engine Type |
S8000 (3-cylinder, Turbocharged) |
|
Engine Capacity |
2.9 Litres (179 cu in) |
|
Engine Nominal Speed |
2300 RPM |
|
Transmission Type |
12x12 Hydraulic Shuttle |
Suspension & Brakes
|
Specification |
Details |
|
Emissions Compliance |
Tier 4B (CEGR + DOC) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
12x16.5 inches (R4 Industrial) |
|
Standard Tyres Rear |
16.9x30 inches (R1 Agricultural) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540 RPM at 1960 RPM (Hydraulically Engaged) |
|
Hydraulics Type |
Open Centre with Dual Pumps |
|
Hydraulic Pump |
48 l/min (12.6 gal/min) Implement; 29 l/min (7.6 gal/min) Steering |
|
Max Valves (Rear) |
2 (Standard); 3 (Optional) |
|
Max Valves (Mid-Mount) |
2 (Standard, for Loader) |
|
Max Lift Capacity (Rear) |
1587 kg (3500 lb) Standard; 1814 kg (4000 lb) with Optional Assist Cylinder at 0.6 m |
|
Overall Length |
3915 mm (154.1 in) with 4WD |
|
Total Height |
2545 mm (100.2 in) to Top of Cab |
|
Wheelbase |
2123 mm (83.6 in) with 4WD (Cab) |
|
Total Weight |
3100 kg (6800 lb) with 4WD (Cab) |
