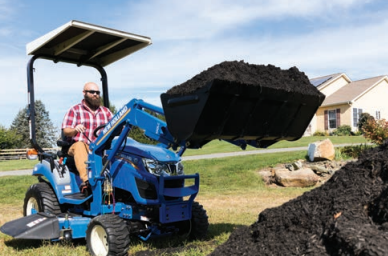

New Holland WORKMASTER™ 35 – Compact Tractor for Landscaping
Specifications
|
Specification |
Details |
|
Tractor Model |
WORKMASTER™ 35 |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Food Plot, Livestock, Landscaping |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, Turbocharged, 1.9 L (114.7 cu.in.) |
|
Gross Horsepower |
35 HP (26.1 kW) @ 2600 RPM |
|
PTO Power |
Gear: 29.7 HP (22.1 kW); Hydrostatic: 28.0 HP (20.9 kW) @ 540 RPM |
|
Transmission Type |
12x12 Gear or 3-Range Hydrostatic |
|
Maximum Forward Speed |
Gear: 14.2 mi/h (22.9 km/h); Hydrostatic: 14.8 mi/h (23.9 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Rear Differential Lock |
Mechanical |
|
Brake Type |
Wet, Multi-Disc |
Components & Features
|
Specification |
Details |
|
Emissions Level |
Tier 4B Final |
|
Alternator |
70 A |
|
Fuel Tank Capacity |
28 L (7.4 gal) |
|
PTO Type |
Independent Electro-Hydraulic Engagement |
|
Rear PTO Speed |
540 RPM |
|
Mid PTO Speed |
2000 RPM (Standard on Hydrostatic; Optional on Gear) |
|
Cruise Control |
Standard on Hydrostatic Models |
|
Engine Speed Management |
Standard |
|
Hydraulic Flow (Implement) |
8.2 gal/min (31 L/min) |
|
Hydraulic Flow (Steering) |
Gear: 4.2 gal/min (15.9 L/min); Hydrostatic: 5.3 gal/min (19.9 L/min) |
|
Total Hydraulic Flow |
Gear: 12.4 gal/min (46.8 L/min); Hydrostatic: 13.5 gal/min (50.8 L/min) |
|
Remote Control Valves |
1 or 2 (Optional) |
|
3-Point Hitch |
Category I, Telescopic Stabilizers, Fixed Link Ends |
|
3-Point Hitch Lift Capacity (Ball Ends) |
820 kg (1808 lb) |
|
3-Point Hitch Lift Capacity (24 in Behind Ball Ends) |
650 kg (1433 lb) |
|
Compatible Front Loaders |
140TL |
|
140TL Loader: Lift Capacity (500 mm Forward, Max Height) |
499 kg (1100 lb) |
|
140TL Loader: Lift Capacity (Bucket Pivot, Max Height) |
680 kg (1500 lb) |
|
140TL Loader: Breakout Force (500 mm Forward) |
862 kg (1900 lb) |
|
140TL Loader: Breakout Force (Bucket Pivot) |
1225 kg (2700 lb) |
|
140TL Loader: Max Lift Height (Bucket Pivot) |
2324 mm (91.5 in) |
|
140TL Loader: Max Dump Angle |
48 degrees |
|
140TL Loader: Max Rollback Angle |
30.4 degrees |
|
140TL Loader: Lift Time |
3.8 seconds |
|
140TL Loader: Lowering Time |
1.7 seconds |
|
140TL Loader: Bucket Dump Time |
2.2 seconds |
|
140TL Loader: Bucket Retract Time |
1.7 seconds |
|
Wheelbase |
1715 mm (67.5 in) |
|
Length |
3074 mm (121 in) |
|
Width |
1689 mm (66.5 in) |
|
Height (Top of ROPS) |
2227 mm (87.7 in) |
|
Weight |
1391 kg (3067 lb) |
|
Operator Platform |
Foldable ROPS |
