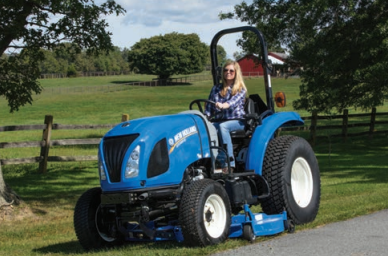

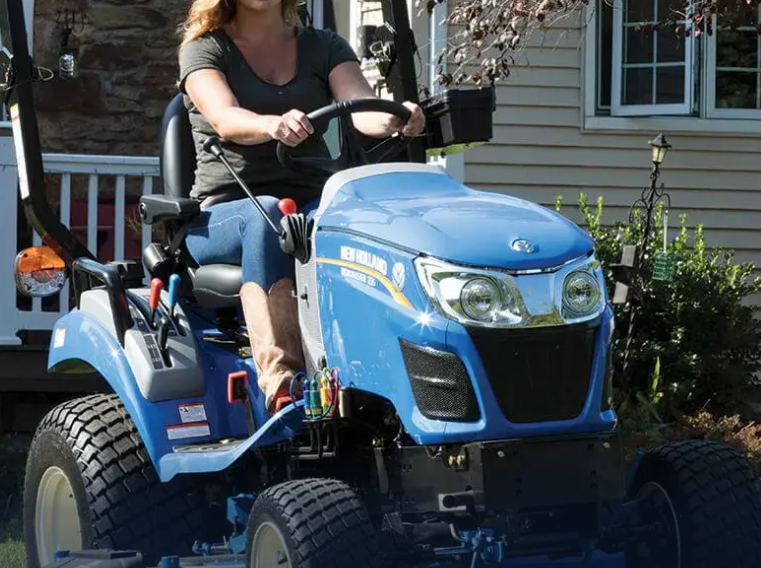

New Holland WORKMASTER™ 25S – Sub-Compact Tractor for Property Maintenance
Specifications
|
Specification |
Details |
|
Tractor Model |
WORKMASTER™ 25S |
|
Vehicle Category |
Sub-Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Yard, Landscape, Gardening, Property Maintenance |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, Naturally Aspirated, 1.26 L (77.3 cu.in.) |
|
Gross Horsepower |
24.7 HP (18.4 kW) @ 3000 RPM |
|
PTO Power |
17.2 HP (12.8 kW) @ 540 RPM |
|
Transmission Type |
2-Range Hydrostatic, Dual Pedal |
|
Maximum Forward Speed |
9.1 mi/h (14.7 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Rear Differential Lock |
Mechanical |
|
Brake Type |
Wet, Multi-Disc |
Components & Features
|
Specification |
Details |
|
Emissions Level |
Tier 4B Final |
|
Alternator |
50 A |
|
Fuel Tank Capacity |
25 L (6.6 gal) |
|
PTO Type |
Independent Electro-Hydraulic Engagement |
|
Rear PTO Speed |
540 RPM |
|
Mid PTO Speed |
2500 RPM |
|
Cruise Control |
Standard |
|
Hydraulic Flow (Implement) |
4.6 gal/min (17.4 L/min) |
|
Hydraulic Flow (Steering) |
2.1 gal/min (8 L/min) |
|
Total Hydraulic Flow |
6.7 gal/min (25.4 L/min) |
|
Remote Control Valves |
1 (Optional) |
|
3-Point Hitch |
Category I, Chain Stabilizers, Fixed Link Ends |
|
3-Point Hitch Lift Capacity (Ball Ends) |
450 kg (992 lb) |
|
3-Point Hitch Lift Capacity (24 in Behind Ball Ends) |
330 kg (728 lb) |
|
Compatible Front Loaders |
100LC, 200LC |
|
100LC Loader: Lift Capacity (500 mm Forward, Max Height) |
314 kg (693 lb) |
|
100LC Loader: Lift Capacity (Bucket Pivot, Max Height) |
456 kg (1005 lb) |
|
100LC Loader: Breakout Force (500 mm Forward) |
647 kg (1426 lb) |
|
100LC Loader: Breakout Force (Bucket Pivot) |
943 kg (2078 lb) |
|
100LC Loader: Max Lift Height (Bucket Pivot) |
1829 mm (72 in) |
|
100LC Loader: Max Dump Angle |
46 degrees |
|
100LC Loader: Max Rollback Angle |
28 degrees |
|
100LC Loader: Lift Time |
3.6 seconds |
|
100LC Loader: Lowering Time |
2.1 seconds |
|
100LC Loader: Bucket Dump Time |
2.3 seconds |
|
100LC Loader: Bucket Retract Time |
1.5 seconds |
|
200LC Loader: Lift Capacity (500 mm Forward, Max Height) |
551 kg (1214 lb) |
|
200LC Loader: Lift Capacity (Bucket Pivot, Max Height) |
726 kg (1600 lb) |
|
200LC Loader: Breakout Force (500 mm Forward) |
874 kg (1926 lb) |
|
200LC Loader: Breakout Force (Bucket Pivot) |
1196 kg (2637 lb) |
|
200LC Loader: Max Lift Height (Bucket Pivot) |
2395 mm (94.3 in) |
|
200LC Loader: Max Dump Angle |
51 degrees |
|
200LC Loader: Max Rollback Angle |
41 degrees |
|
200LC Loader: Lift Time |
3.1 seconds |
|
200LC Loader: Lowering Time |
2.0 seconds |
|
200LC Loader: Bucket Dump Time |
1.7 seconds |
|
200LC Loader: Bucket Retract Time |
2.7 seconds |
|
Wheelbase |
1425 mm (56.1 in) |
|
Length |
2473 mm (97.4 in) |
|
Width |
1187 mm (46.7 in) |
|
Height (Top of Cab or ROPS) |
2220 mm (87.4 in) |
|
Weight |
ROPS: 655 kg (1444 lb); Cab: 819 kg (1805 lb) |
|
Operator Platform |
Cab or Foldable ROPS |
