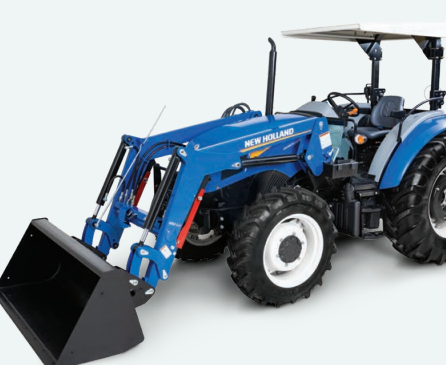

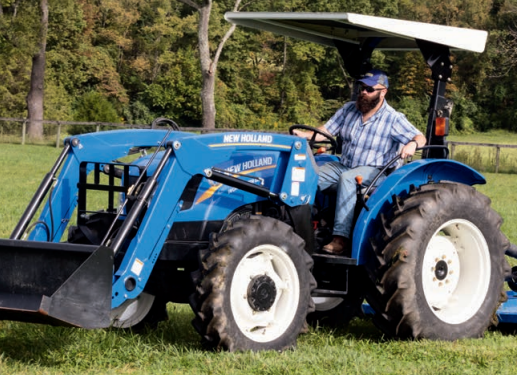

New Holland WORKMASTER 120 – Utility Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
WORKMASTER 120 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
120 HP (Gross); 100 HP (PTO) |
|
Engine Type |
F5 (4-cylinder, Turbocharged) |
|
Engine Capacity |
3.4 Litres (207 cu in) |
|
Engine Speed at Max Power |
1800 RPM |
|
Engine Nominal Speed |
2300 RPM |
|
Transmission Type |
12x12 Hydraulic Shuttle (Optional Creeper Gear) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
12x16.5 inches (R4 Industrial, Cab/All-Purpose); 320/70R24 inches (R1 Agricultural, Low-Profile) |
|
Standard Tyres Rear |
18.4x30 inches (R1 Agricultural, Cab/All-Purpose); 500/60-22.5 inches (R1 Agricultural, Low-Profile); 19.5L-24 inches (R4 Industrial, Low-Profile) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540 RPM at 1960 RPM; 540/540E at 1535 RPM; 540/1000 at 2125 RPM (All Hydraulically Engaged) |
|
Hydraulics Type |
Open Centre with Dual Pumps |
|
Hydraulic Pump |
64 l/min (16.9 gal/min) or 81.7 l/min (21.6 gal/min) Implement; 36 l/min (9.7 gal/min) Steering |
|
Max Valves (Rear) |
2 (Standard); 3 (Optional) |
|
Max Valves (Mid-Mount) |
2 (Standard, for Loader) |
|
Max Lift Capacity (Rear) |
1451 kg (3200 lb) Standard; 2812 kg (6200 lb) with Optional Assist Cylinder at 0.6 m |
|
Overall Length |
4091 mm (161.1 in) with 4WD |
|
Total Height |
2676 mm (105.4 in) to Top of Cab; 2617 mm (103.0 in) to Top of ROPS (All-Purpose); 1828 mm (71.9 in) to Top of ROPS (Low-Profile) |
|
Wheelbase |
2260 mm (88.9 in) with 4WD (Cab); 2125 mm (83.7 in) with 4WD (ROPS) |
|
Total Weight |
3795 kg (8367 lb) with 4WD (Cab); 3510 kg (7738 lb) with 4WD (ROPS) |
