Specification

Details

Tractor Model

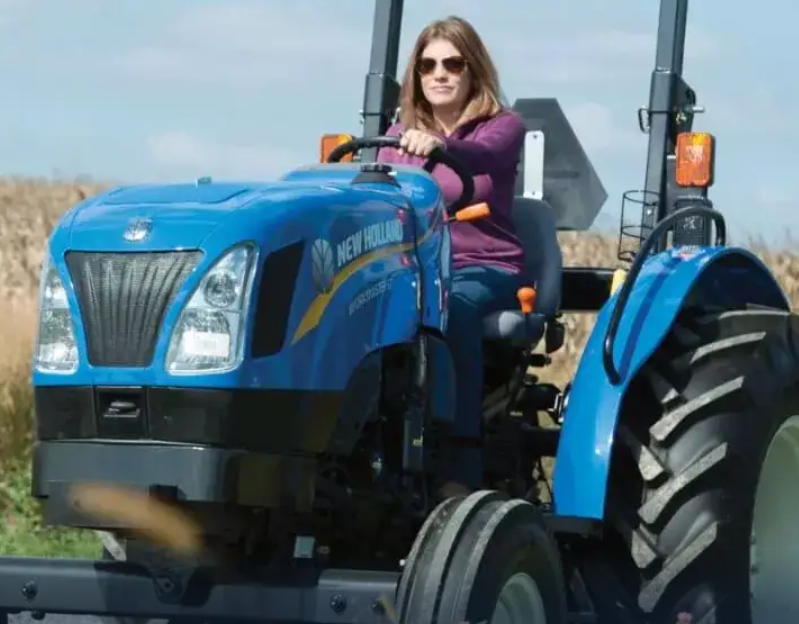

WORKMASTER 100

Vehicle Category

Compact Tractor

Fuel Type

Diesel

Application

Mixed Farming, Livestock, Landscaping, Haymaking, Loading

Specification

Details

Engine

4 cylinders, Turbocharged, 3.4 L (207 cu.in.), F5 by FPT

Gross Horsepower

112 HP

PTO Power

92 HP

Transmission Type

12x12 with Power Shuttle

Maximum Forward Speed

19 mi/h (30 km/h)

Specification

Details

Rear Differential Lock

Mechanical

Specification

Details

Standard Tyres Rear (Cab/All-Purpose)

18.4x30

Standard Tyres Rear (Low-Profile ROPS)

500/60-22.5 R1 or 19.5L24 R4

Specification

Details

Emissions System

SCR + CUC, Tier 4B

PTO Type

Independent Hydraulic

PTO Speed

540 @ 1960 RPM; 540/540E (Optional) @ 1535 RPM; 540/1000 (Optional) @ 2125 RPM

Hydraulic Flow (Implement)

16.9 gal/min (64 L/min); Optional: 21.6 gal/min (82 L/min)

Hydraulic Flow (Steering)

9.7 gal/min (36 L/min)

Remote Control Valves

2 (Standard); 3 (Optional)

3-Point Hitch Lift Capacity (24 in Behind Ball Ends)

3200 lb (1451 kg); Optional Cylinder: 6200 lb (2812 kg)

632TL Loader: Max Lift Height

3415 mm (134.5 in) (NSL)

632TL Loader: Lift Capacity (800 mm from Pivot)

2028 lb (920 kg)

637TL Loader: Max Lift Height

3415 mm (134.5 in) (MSL)

637TL Loader: Lift Capacity (800 mm from Pivot)

3174 lb (1440 kg)

Loader Bucket Width

2134 mm (84 in)

Wheelbase

Cab: 2260 mm (88.9 in); ROPS: 2125 mm (83.7 in)

Length

4091 mm (161.1 in)

Width

Cab/All-Purpose: 1115 mm (43.9 in); Low-Profile ROPS: 1205 mm (47.4 in)

Height (Top of Cab or ROPS)

Cab: 2676 mm (105.4 in); ROPS: 2617 mm (103.0 in); Low-Profile ROPS: 1828 mm (71.9 in)

Weight

Cab/4WD: 3795 kg (8367 lb); ROPS/4WD: 3510 kg (7738 lb)

Operator Platform

All-Season Cab or ROPS (All-Purpose or Low-Profile) with Ergonomic Console

Lift Control

Lift-O-Matic™
