New Holland TH7.42 ELITE – Telehandler for Material Handling
Specifications
|
Specification |
Details |
|
Model |
TH7.42 ELITE |
|
Vehicle Category |
Telehandler |
|
Fuel Type |
Diesel |
|
Application |
Material Handling, Bale Handling, Silage Removal |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.5 L (274 cu.in.), FPT NEF, Turbocharged, Intercooled, ECOBlue™ HI-eSCR |
|
Maximum Horsepower |
133 HP (98 kW) @ 1800 RPM |
|
Rated Horsepower |
121 HP (89 kW) @ 2200 RPM |
|
Maximum Torque |
549 Nm (405 ft-lb) @ 1500 RPM |
|
Transmission Type |
Powershift, 6 Forward / 3 Reverse |
|
Maximum Forward Speed |
40 km/h (24.8 mi/h) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Wet Disc Brakes, 6 Front / 4 Rear per Axle |
|
Park Brake |
SAHR (Spring-Applied, Hydraulic Release), Wet Disc |
|
Boom Suspension |
Anti-Pitch System, Auto-Off at 35° Lift Angle |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
460/70 R24, Agricultural/Industrial Pattern |
|
Standard Tyres Rear |
460/70 R24, Agricultural/Industrial Pattern |
|
1st Option for Front Tyres |
500/70 R24, Agricultural/Industrial Pattern |
|
1st Option for Rear Tyres |
500/70 R24, Agricultural/Industrial Pattern |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 4B/Final, ECOBlue™ HI-eSCR |
|
Fuel Tank Capacity |
36.9 gal (140 L) |
|
DEF Tank Capacity |
7.1 gal (27 L) |
|
Hydraulic System |
Variable Displacement Pump |
|
Hydraulic Flow |
36.9 gal/min (140 L/min) |
|
Hydraulic Oil Capacity |
27.7 gal (105 L) |
|
Boom Controls |
Lift: Electro-Proportional; Tilt: Electro-Proportional; Extension: Electro-Proportional; Auxiliary: Electro-Proportional |
|
Cycle Times (Unloaded) |
Lift/Lower: 6.7/5.2 sec; Extend/Retract: 6.2/4.5 sec; Bucket Dump/Crowd: 2.8/2.9 sec |
|
Maximum Lift Capacity |
9259 lb (4200 kg) |
|
Lift Capacity at Maximum Height |
5511 lb (2500 kg) |
|
Lift Capacity at Full Reach |
3306 lb (1500 kg) |
|
Maximum Lift Height |
276 in (7000 mm) |
|
Maximum Forward Reach |
159 in (4050 mm) |
|
Attachments |
Buckets (2.25 m³, 3.25 m³, 96 in wide), Silage Defacers, 48 in Manitou-Style Pallet Forks, Bale Spear, Dual Bale Spear, Large Square Bale Fork, 2.5 m³ Hay Grapple Bucket |
|
Wheelbase |
118 in (3000 mm) |
|
Overall Length |
261 in (6440 mm) |
|
Ground Clearance |
16 in (415 mm) |
|
Operating Weight |
17637 lb (8000 kg) |
|

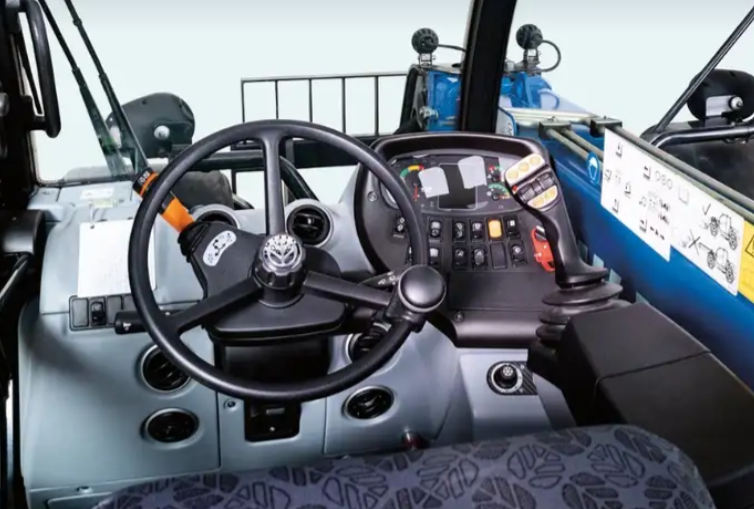

Operator Platform |
360° Vision Cab, Air-Conditioned, Heated Pneumatic Suspension Seat, Seat-Mounted Joystick |
|
Cab Sound Level |
71 dBA |
|
Front Axle |
4WD with Limited Slip Differential |
|
Rear Axle |
4WD with Limited Slip Differential |
