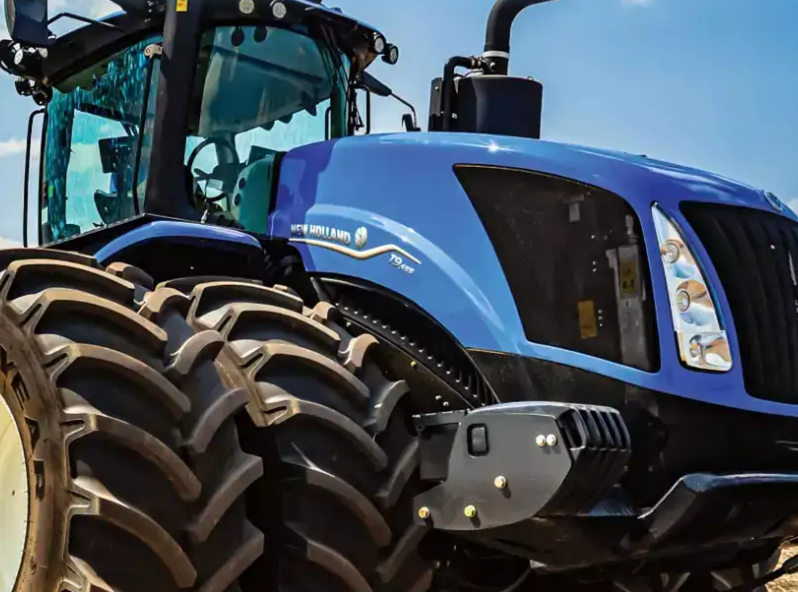

New Holland T9.470 with PLM Intelligence™ – Articulated Tractor for Row Crop
Specifications
|
Specification |
Details |
|
Tractor Model |
T9.470 |
|
Vehicle Category |
Articulated Tractor |
|
Fuel Type |
Diesel |
|
Application |
Row Crop, Tillage, Seeding, Nutrient Application |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 12.9 L (787 cu.in.), FPT Cursor 13, Single-Stage Turbo with eVGT, Air-to-Air Cooling |
|
Gross Horsepower |
425 HP (312 kW) @ 2100 RPM |
|
Peak Horsepower |
467 HP (344 kW) @ 1900 RPM |
|
PTO Power |
409 HP (301 kW) @ 1811 RPM/1000 PTO |
|
Transmission Type |
Ultra Command™ 16F/2R (Standard); Auto Command™ CVT (Optional) |
|
Maximum Forward Speed |
25 mi/h (40 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Terralock™ Front and Rear, Automatic |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Options |
Low Sidewall (LSW) for High Flotation and Heavy Traction |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 4B/Final-Stage V |
|
Fuel Tank Capacity |
310 gal (1170 L) |
|
DEF Tank Capacity |
42 gal (159 L) |
|
PTO Type |
1000 RPM, 1.75 in Shaft, 20 Splines (Optional) |
|
Hydraulic Flow (Standard) |
42 gal/min (159 L/min) |
|
Hydraulic Flow (High Flow Option) |
57 gal/min (216 L/min) |
|
Hydraulic Flow (MegaFlow™ II Option) |
113 gal/min (428 L/min) |
|
3-Point Hitch Lift Capacity (24 in Behind Ball Ends) |
20000 lb (9072 kg) |
|
3-Point Hitch Category |
CAT IV-N, Convertible to CAT III |
|
Drawbar Capacity |
CAT 4: 6000 lb (2722 kg) (Standard); 11000 lb (4990 kg) (Optional); CAT 5: 15000 lb (6804 kg) (Optional) |
|
Vertical Load Capacity |
11000 lb (4990 kg) |
|
Wheelbase |
3759 mm (148 in) |
|
Weight |
40800 lb (18507 kg) |
|
Gross Vehicle Weight |
56000 lb (25401 kg) |
|
Operator Platform |
Comfort Ride™ 4-Point Suspended Cab with SideWinder™ Ultra Armrest and IntelliView™ 12 Display |
|
Front Axle |
5.0 in (127 mm) Bar, 120 in (3048 mm) Width |
