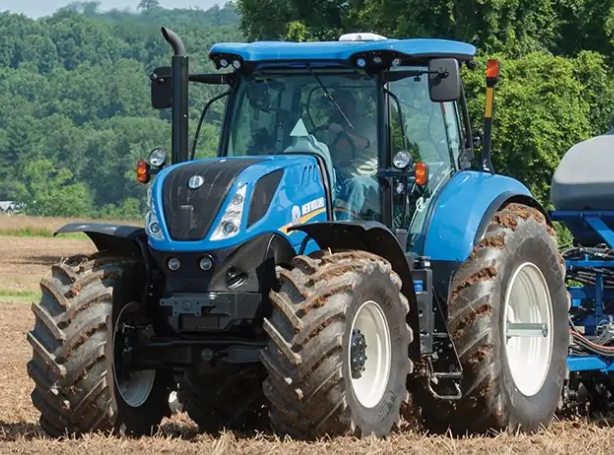

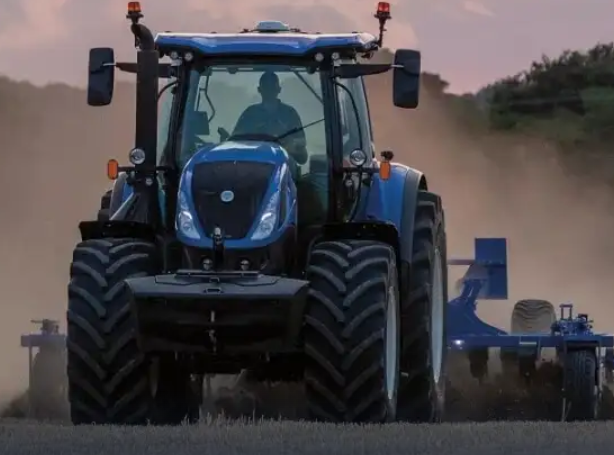

New Holland T7.340 HD – Row Crop Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
T7.340 HD |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Heavy-Duty Transport, Traction, Row Cropping |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
340 HP (254 kW) Rated; 340 HP (254 kW) Max with EPM |
|
Engine Type |
FPT NEF (6-cylinder, eVGT, Air-to-Air Intercooled) |
|
Engine Capacity |
6.7 Litres (411 cu in) |
|
Engine Speed at Rated Power |
2000 RPM |
|
Transmission Type |
Auto Command CVT (50 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Terraglide™ (Standard) |
|
Cab Suspension |
Comfort Ride (Standard, Semi-Active Optional) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
282 HP (210 kW) |
|
Hydraulics Type |
Closed Centre Load Sensing (CCLS) |
|
Hydraulic Pump |
165 l/min (44 gal/min) / 220 l/min (58 gal/min) |
|
Max Valves (Rear) |
Electrohydraulic |
|
Max Lift Capacity (Rear) |
10305 kg (22719 lb) |
|
Max Lift Capacity (Front) |
4181 kg (9218 lb) |
|
Wheelbase |
2995 mm (117.9 in) |
|
Total Weight |
10800 kg (23810 lb) |
|
Fuel Tank Capacity |
630 L (166 gal) |
|
DEF Capacity |
96 L (25 gal) |
|
Emissions Compliance |
Tier 4B/Final – Stage V |
