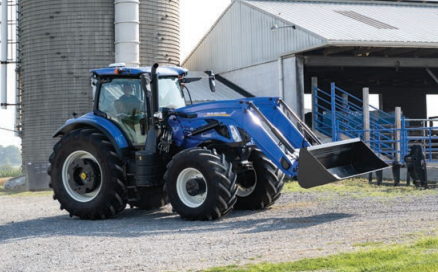

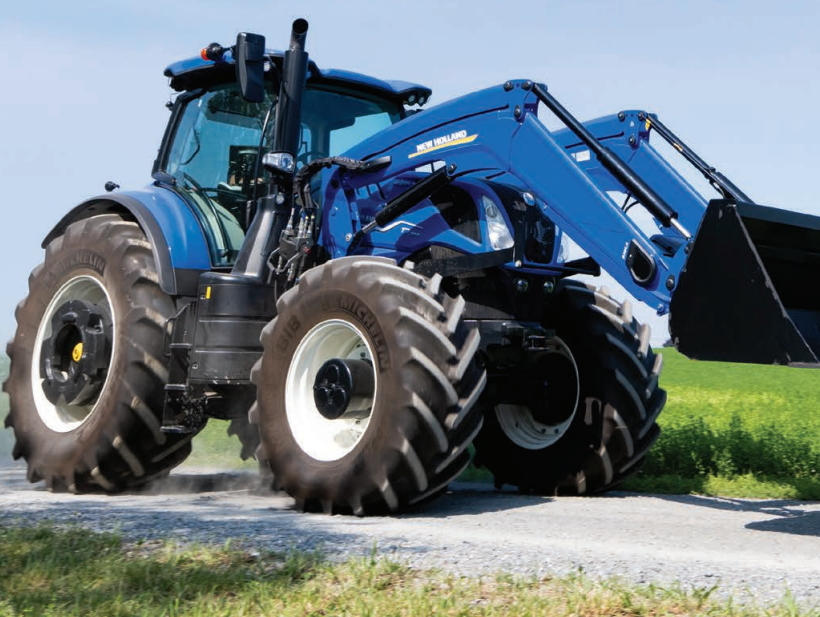

New Holland T7.245 – Row Crop Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
T7.245 |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Large-Scale Haymaking, Livestock, Row Cropping |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
200 HP (147 kW) Rated; 245 HP (180 kW) Max with EPM |
|
Engine Type |
FPT NEF (6-cylinder, Turbocharged, Air-to-Air Intercooled) |
|
Engine Capacity |
6.7 Litres (411 cu in) |
|
Engine Speed at Rated Power |
2000 RPM |
|
Transmission Type |
Power Command (40 km/h, 18x6, 19x6; 50 km/h, 19x6); Auto Command CVT (40 km/h, 50 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Terraglide™ (Optional) |
|
Cab Suspension |
Comfort Ride (Optional for Classic; Standard for PLM Intelligence) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
170 HP (126 kW) |
|
Hydraulics Type |
Closed Centre Load Sensing (CCLS) |
|
Hydraulic Pump |
120 l/min (32 gal/min) Power Command; 150 l/min (40 gal/min) Auto Command |
|
Max Valves (Rear) |
Mechanical or Electrohydraulic |
|
Max Lift Capacity (Rear) |
4964 kg (10944 lb) / 6129 kg (13512 lb) with 90 mm/110 mm opt. |
|
Max Lift Capacity (Front) |
3773 kg (8318 lb) |
|
Wheelbase |
2884 mm (113.5 in) - 2977 mm (117.2 in) |
|
Total Weight |
8500 kg (18740 lb) Classic; 9550 kg (21054 lb) PLM Intelligence |
|
Fuel Tank Capacity |
395 L (104 gal) Classic; 465 L (123 gal) PLM Intelligence |
|
DEF Capacity |
48 L (13 gal) Classic; 54 L (14 gal) PLM Intelligence |
|
Emissions Compliance |
Tier 4B/Final – Stage V |
