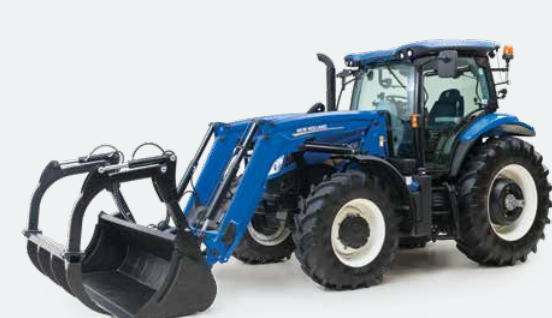

New Holland T6.175 – Compact Tractor for Hay and Loader Work
Specifications
|
Specification |
Details |
|
Tractor Model |
T6.175 |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Hay Production, Loader Work, Row Crop |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.5 L (274 cu.in.), FPT NEF, Turbocharged, Air-to-Air Intercooling |
|
Gross Horsepower |
145 HP (108 kW) @ 2100 RPM |
|
EPM Max Horsepower |
175 HP (130 kW) |
|
PTO Power |
122 HP (91 kW) |
|
Transmission Type |

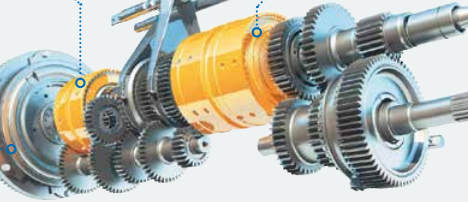

Electro Command™ 16x16 or 32x32 with AutoShift; Auto Command™ CVT |
|
Maximum Forward Speed |
19 mi/h (30 km/h) for 2WD; 25 mi/h (40 km/h) or 31 mi/h (50 km/h) for 4WD |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle Suspension |
TerraGlide™ (Optional) |
|
Cab Suspension |
Comfort Ride™ (Optional for Value; Standard for Plus, Elite, Auto Command™) |
|
Traction Management |
TerraLock™ Automatic Traction Management |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres Rear |
16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/60R38 |
Components & Features
|
Specification |
Details |
|
Emissions System |
ECOBlue™ HI-eSCR 2, Tier 5/Final |
|
Fuel Tank Capacity |
52.2 gal (197.2 L); 58.6 gal (222 L) with Auxiliary Tank |
|
DEF Tank Capacity |
10.4 gal (39.5 L) |
|
PTO Type |
540/1000 RPM, Reversible Shaft |
|
Hydraulic System |
Fixed Displacement (Value); Closed-Center Load-Sensing (Plus, Elite, Auto Command™) |
|
Hydraulic Flow (Value) |
21.1 gal/min (80 L/min) |
|
Hydraulic Flow (Plus, Elite, Auto Command) |
29.9 gal/min (113 L/min); Auto Command™: 33.5 gal/min (127 L/min) |
|
Steering Pump Flow |
12.4 gal/min (47 L/min); 17.2 gal/min (65.1 L/min) with Class 4 Axle |
|
Remote Control Valves |
2 Mechanical (Value, Plus, Elite); 3 Electro-Hydraulic (Auto Command™, Elite Optional) |
|
3-Point Hitch Lift Capacity |
8338 lb (3782 kg) with 80 mm Cylinders (Value); 9214 lb (4179 kg) with 80 mm Cylinders (Auto Command™); 11649 lb (5284 kg) with 90 mm Cylinders (Plus, Elite, Auto Command™) |
|
Front Hitch Lift Capacity |
6834 lb (3100 kg) |
|
Loader Compatibility |
810LA (NSL), 850LA (NSL), 855LA (MSL), 857LA (MSL) |
|
Loader Max Lift Height |
810LA: 11.9 ft (3627 mm); 850LA/855LA: 13.5 ft (4115 mm); 857LA: 13.9 ft (4237 mm) |
|
Loader Lift Capacity (Max Height, 31.5 in Forward) |
810LA: 2380 lb (1080 kg); 850LA: 2932 lb (1330 kg); 855LA: 5202 lb (2360 kg); 857LA: 4365 lb (1980 kg) |
|
Wheelbase |
Standard: 104 in (2642 mm); TerraGlide™: 105.7 in (2684 mm); SuperSteer™: 109.8 in (2788 mm) |
|
Weight (Minimum) |
10604 lb (4810 kg); 9380 lb (4250 kg) with 2WD |
|
Weight (Average) |
12555 lb (5695 kg) |
|
Weight (Maximum) |
15245 lb (6915 kg) |
|
Gross Vehicle Weight |
20944 lb (9500 kg) |
|
Operator Platform |
Horizon™ Cab with SideWinder™ II Armrest (Auto Command™), IntelliView™ IV Display |
|
Cab Sound Level |
69 dBA |
|
Front Axle |
2WD, Standard, TerraGlide™, or SuperSteer™; Class 3 or 4 |
