New Holland T5.90 Dual Command™ – Compact Tractor for Mixed Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
T5.90 |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Dairy, Livestock, Mixed Farming, Loading, Haymaking |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, Diesel, 3.4 L (207 cu.in.), F5G by FPT |
|
Gross Horsepower |
86 HP |
|
PTO Power |
73 HP |
|
Transmission Type |
24x24 Dual Command™ |
|
Maximum Forward Speed |
25 mi/h (40 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four-Wheel Drive (Standard); Terraglide™ Suspended 4WD (Optional) |
|
Brake Type |
Wet Disc |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
14.9R24 R1W |
|
Standard Tyres Rear |
18.4R34 R1W |
Components & Features
|
Specification |
Details |
|
Emissions System |
HI-eSCR ECOBlue™ with Cooled Low-Rate EGR |
|
PTO Type |
Electro-Hydraulic Engagement |
|
PTO Speed |
540/1000 RPM (Optional) |
|
Hydraulic Flow (Implement) |
16.9 gal/min (64 L/min) |
|
Hydraulic Flow (Steering) |
9.7 gal/min (37 L/min) |
|
Remote Control Valves |
2 or 3 (Standard) |
|
3-Point Hitch Lift Capacity (24 in Behind Ball Ends) |
5620 lb (2549 kg); Optional Cylinder: 7351 lb (3334 kg) |
|
Wheelbase |
2285 mm (89.9 in) |
|
Length |
4086 mm (160.9 in) |
|
Width |
1923 mm (75.7 in) |
|
Height (Top of Cab or ROPS) |
Cab: 2594 mm (102.1 in); ROPS: 2706 mm (106.5 in) |
|
Weight |
Cab/4WD: 3700 kg (8157 lb); ROPS/4WD: 3480 kg (7672 lb) |
|

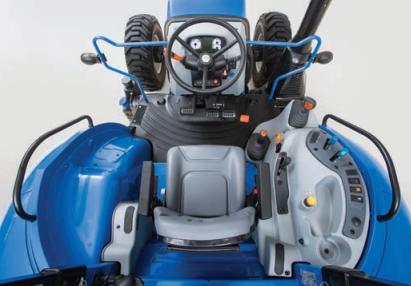

Operator Platform |
VisionView™ Cab or ROPS with Command Arc Console |
|
Lift Control |
Lift-O-Matic™ Plus (ROPS Models) |
