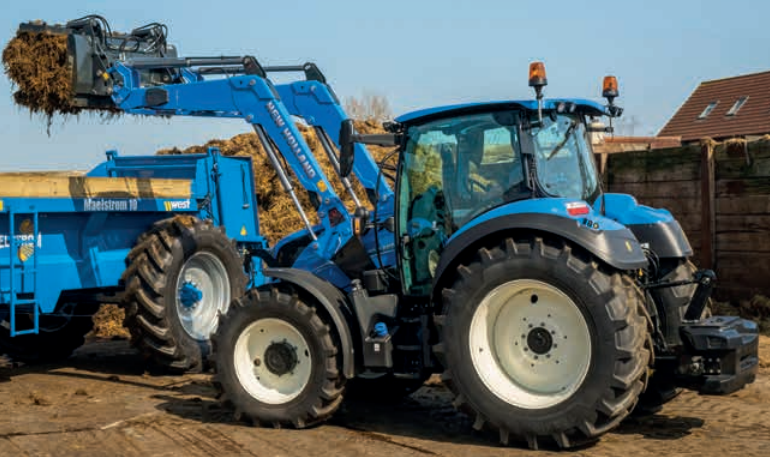

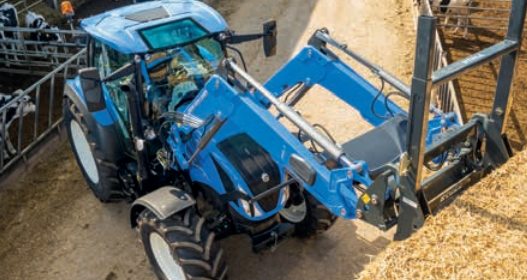

New Holland Dynamic Command™ T5.130 – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
T5.130 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
96 kW / 130 HP (Max); 88 kW / 120 HP (Nominal at 2200 RPM) |
|
Engine Type |
FPT Industrial NEF (4-cylinder) |
|
Engine Capacity |
4.5 Litres |
|
Engine Speed at Max Power |
1800 RPM |
|
Engine Nominal Speed |
2200 RPM |
|
Max Torque |
610 Nm at 1300 RPM |
|
Transmission Type |
Dynamic Command™: Semi-powershift 24x24, 8 speeds (Optional ECO 40 km/h); Auto Command™: CVT |
|
Speed Range |
Dynamic Command™: 0.216–40 km/h at 1650 RPM; Auto Command™: 0.02–40 km/h at 1600 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle Suspension |
Terraglide™ (Optional) |
|
Cab Suspension |
Comfort Ride™ (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
540/65R34 inches |
|
Standard Tyres Rear |
540/65R34 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/1000 at 1938/1926 RPM; 540/540E/1000 at 1969/1546/1893 RPM; 540E/1000/1000E at 1546/1893/1621 RPM |
|
Hydraulics Type |
Closed Centre Load Sensing (CCLS) |
|
Hydraulic Pump |
110 l/min at 200 bars (Main, MegaFlow™); 36.3 l/min at 230 bars (Auxiliary and Steering) |
|
Max Valves (Rear) |
4 (Mechanical or Electrohydraulic: 4 Mechanical, 2 Electro + 2 Mechanical, or 4 Electro) |
|
Max Valves (Mid-Mount) |
3 (Electrohydraulic) |
|
Max Lift Capacity (Rear) |
5500 kg |
|
Max Lift Capacity (Front) |
2250 kg (Optional) |
|
Overall Width |
1888 mm (Narrow); 2288 mm (Standard) |
|
Overall Length |
4397 mm (Max with Weights to Rear Linkage) |
|
Total Height |
2720 mm (Low Roof with 540/65R34 Tyres); 1980 mm (Rear Axle Centre to Low Roof); 2100 mm (Rear Axle Centre to Standard Roof) |
|
Wheelbase |
2490 mm |
|
Turning Radius |
4615 mm (With 4WD/Terraglide™ Front Axle) |
|
Total Weight |
5500 kg (Minimum Shipping); 8800 kg (Max Gross) |
|
Fuel Tank Capacity |
180 Litres (Fuel); 19 Litres (AdBlue) |
|
Exhaust Gas After-Treatment |
SCR ECOBlue™ (DOC + DPF + SCR) |
