Specification

Details

Tractor Model

T5.100

Vehicle Category

Compact Tractor

Fuel Type

Diesel

Application

Mixed Farming, Transport, PTO Work, Front Loader, Green Space Maintenance

Specification

Details

Engine

4 cylinders, Turbocharged, 3.6 L (219.7 cu.in.), F5 by FPT Industrial

Gross Horsepower

101 HP (74 kW) @ 2300 RPM

Transmission Type

Electro Command™ Semi-Powershift, 16x16 (Standard); 32x32 with Creeper (Optional)

Maximum Forward Speed

24.9 mi/h (40 km/h) @ 1970 RPM with R38 Tyres

Minimum Forward Speed

Standard: 1.41 mi/h (2.27 km/h); Creeper: 0.17 mi/h (0.28 km/h)

Specification

Details

Front Axle

Four-Wheel Drive (Standard)

Front Axle Suspension

Terraglide™ (Optional)

Rear Differential Lock

Terralock™ Automatic Management

Brake Type

Heavy-Duty Rear Axle with Large-Diameter Disc Brakes

Trailer Brakes

Hydraulic (Standard); Pneumatic or ABS (Optional)

Parking Brake

Mechanical Locking

Specification

Details

Standard Tyres Rear

540/65R34 (21.26R34) or 16.9R38

1st Option for Rear Tyres

600/60R38, 600/65R34, 540/65R38, 520/70R34, 480/70R38, 480/70R34, 460/85R34, 420/85R38, 440/80R34, 380/80R38, 340/85R38, 13.6R38

Specification

Details

Emissions Level

Phase V

Emissions System

SCR ECOBlue™ 2.0 with Low-Rate EGR

Alternator

120 A (Standard); 200 A (Optional)

Battery Capacity

800 CCA / 140 Ah

Fuel Tank Capacity

174 L (46 gal)

AdBlue Tank Capacity

12 L (3.2 gal)

PTO Type

Electro-Hydraulic Engagement with Soft Start

Rear PTO Speed

540 @ 1938 RPM, 540E @ 1535 RPM, 1000 @ 1926 RPM

Front PTO Speed

1000 RPM (Optional)

PTO Automation

Optional Auto Engage/Disengage

Ground Speed PTO

Optional

Engine Speed Management

Standard, Two Preselectable Speeds

Hydraulic System Type

Closed Centre

Hydraulic Flow (Implement)

80 L/min (21.1 gal/min) @ 190 Bar with MegaFlow™ Pump

Hydraulic Flow (Steering)

43 L/min (11.4 gal/min) @ 170 Bar with Auxiliary Pump

Remote Control Valves

Rear: Up to 3 Valves, 8 Outlets; Mid-Mount: Up to 2 Valves, 4 Outlets

3-Point Hitch

Category II, Electronic Draft Control (EDC)

3-Point Hitch Lift Capacity (Ball Ends)

5200 kg (11464 lb)

3-Point Hitch Lift Capacity (24 in Behind Ball Ends)

4730 kg (10428 lb)

Front Hitch Lift Capacity (Ball Ends)

2250 kg (4960 lb)

Compatible Front Loaders

730TL (Recommended), 740TL (Optional), 750TL (Optional)

730TL Loader: Lift Capacity (Bucket Pivot, Max Height)

2162 kg (4766 lb)

730TL Loader: Max Lift Height (Bucket Pivot)

3700 mm (145.7 in)

740TL Loader: Lift Capacity (Bucket Pivot, Max Height)

2672 kg (5891 lb)

740TL Loader: Max Lift Height (Bucket Pivot)

3700 mm (145.7 in)

750TL Loader: Lift Capacity (Bucket Pivot, Max Height)

2427 kg (5348 lb)

750TL Loader: Max Lift Height (Bucket Pivot)

4100 mm (161.4 in)

Wheelbase

2380 mm (93.7 in)

Length

4191 mm (165 in)

Width

2250 mm (88.6 in)

Height (Top of Cab)

2735 mm (107.7 in) with 540/65R34; 2785 mm (109.6 in) with 16.9R38

Ground Clearance

315–415 mm (12.4–16.3 in)

Weight (Minimum Unballasted)

4550 kg (10031 lb)

Weight (Shipping)

5350 kg (11795 lb)

Gross Vehicle Weight

8000 kg (17637 lb)

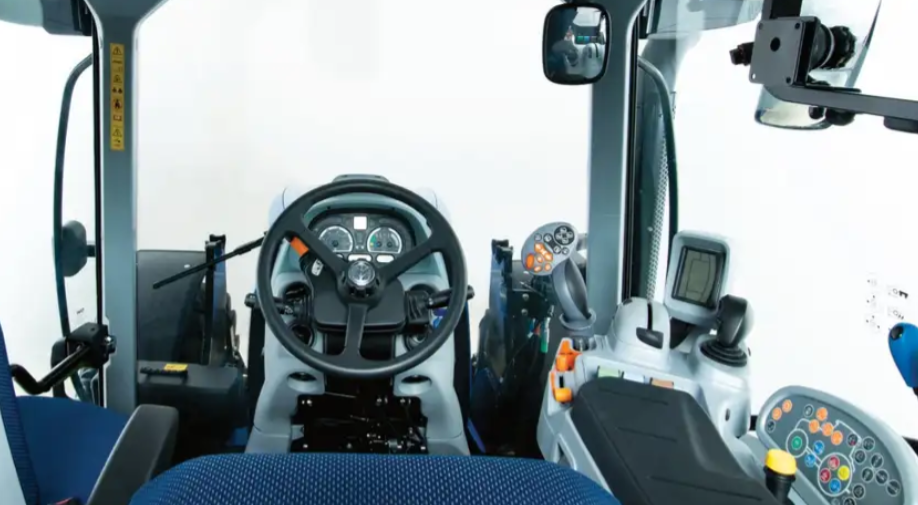

Operator Platform

Deluxe VisionView™ Cab with FOPS (OECD Code 10 Level 1)

Cab Suspension

Comfort Ride™ (Optional)

Seat

Deluxe Pneumatic Suspension with Seat Belt; Optional Heated Deluxe Seat

Instructor Seat

Standard with Seat Belt

Air Conditioning

Standard with Dual Fan Technology

Cab Noise Level

74 dBA

Lighting

8 LED Work Lights (4 Rear, 2 Front, 2 Handrail); LED Signature Headlights

Guidance System

EZ-Pilot™ PRO (Optional) with IntelliView™ IV Monitor; Manual Guidance or Autopilot (Optional)

Telematics

MyPLM®Connect (Optional, Essential or Professional)

ISOBUS Compatibility

Class II (Optional)

Maintenance Interval

600 Hours
