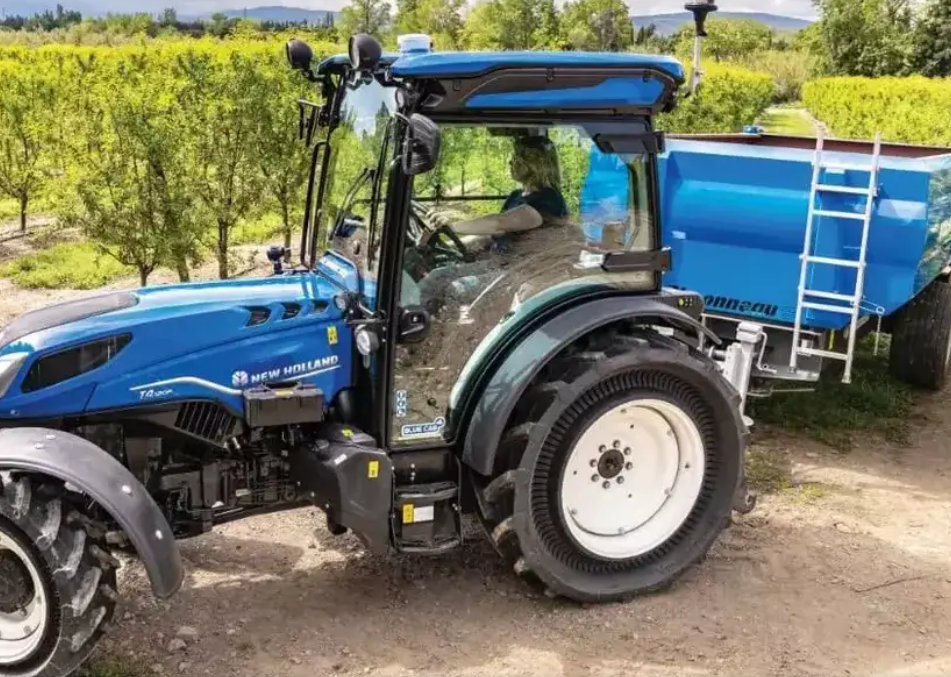

New Holland T4.80 – Specialized Tractor for Vineyards and Orchards

Images:

1

2

Specifications

Specification	Details
Tractor Model	T4.80 (V/N/F - Cab/ROPS)
Vehicle Category	Specialized Tractor
Fuel Type	Diesel
Application	Vineyards, Narrow Orchards, Fruit Orchards, Steep Terrains

Frame & Drivetrain

Specification	Details
Engine Power	75 HP (55 kW) Rated; 76 HP (55 kW) Max at 1900 RPM
Engine Type	FPT F34 (4-cylinder, 2 valves per cylinder)
Engine Capacity	3400 cm³
Engine Speed at Rated Power	2300 RPM
Transmission Type	Powershuttle 16x16 (40 km/h, 0.7 km/h min); Dual Command™ 32x16 (40 km/h, 0.7 km/h min); Dual Command™ 44x16 with Creeper (40 km/h, 0.30 km/h min) [Cab]; Shuttle Command™ 16x16 (40 km/h, 0.7 km/h min); Split Command™ 32x16 (40 km/h, 0.7 km/h min); Shuttle Command™ 28x16 with Creeper (40 km/h, 0.17 km/h min) [ROPS]

Suspension & Brakes

Specification	Details
Front Suspension	Terraglide™ (Optional)

Components & Features

Specification	Details
Drive	4WD (Standard); SuperSteer™ (Optional for N/F)
PTO	540/540E (Standard); 540/540E/1000 Proportional (Optional); Electrohydraulic Engagement with 3 Progressive Modes
Hydraulics Type	Dual Pump with Load Sensing
Hydraulic Pump	64 l/min + 36 l/min (Standard); 80 l/min + 36 l/min (MegaFlow™ Optional)
Max Valves (Rear)	4 (Cab); 3+2/10 (ROPS)
Max Valves (Side)	8 (Cab); 4 (ROPS)
Max Lift Capacity (Rear)	2200 kg
Max Lift Capacity (Front)	1500 kg (Double-Acting)
Wheelbase	2180 mm (4WD); 2436 mm (SuperSteer™)
Overall Width	1061 mm (V), 1229 mm (N), 1380 mm (F) [Cab]; 1061 mm (V), 1229 mm (N), 1380 mm (F), 1472 mm (FL bassotto) [ROPS]
Height	1898 mm (Cab, Rear Axle to Roof); 1011 mm (ROPS V/N), 1011/1026 mm (ROPS F), 965 mm (ROPS FL bassotto)
Total Weight	4500 kg (V/N), 4800 kg (F) [Cab/ROPS]
Fuel Tank Capacity	68 L (V, Cab), 90 L (N, Cab), 104 L (F, Cab); 58 L (V, ROPS), 73 L (N, ROPS), 81 L (F, ROPS), 64 L (FL bassotto, ROPS)
Emissions Compliance	Stage V

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
