New Holland T4.110F S – Specialty Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
T4.110F S |
|
Vehicle Category |
Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchard, Vineyard, Vegetable Production |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

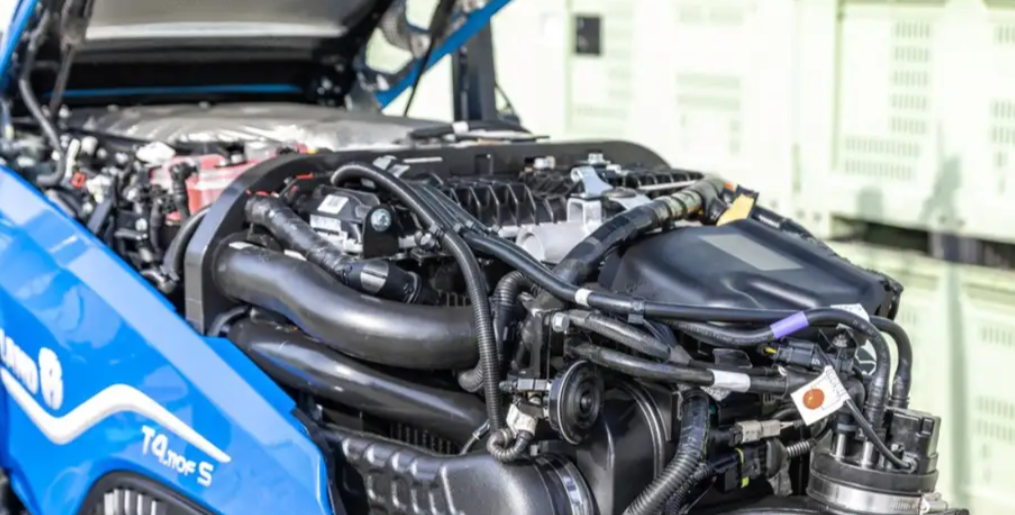

4 cylinders, 3.6 L (219 cu.in.), FPT F36, Turbocharged, EGR, DOC, SCR |
|
Gross Horsepower |
110 HP (81 kW) @ 1900 RPM |
|
Maximum Torque |
490 Nm @ 1300 RPM |
|
Torque Reserve |
46% |
|
Transmission Type |
Synchro Shuttle™ 12x12 or Powershuttle 12x12 |
|
Maximum Forward Speed |
25 mi/h (40 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Park Brake |
Traction Park Brake (Standard) |
|
Differential Lock |
Electro-Hydraulic 4WD and Differential Lock Engagement |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
280/70R20 |
|
Standard Tyres Rear |
420/70R28 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 4B/Final, EGR, DOC, SCR |
|
Fuel Tank Capacity |
19.8 gal (75 L) |
|
DEF Tank Capacity |
2.9 gal (11 L) |
|
PTO Type |
Independent, Servo-Assisted; Rear: 540/540E RPM; Front: 1000 RPM (Optional, Standard and Narrow Axle) |
|
Hydraulic System |
MegaFlow™ |
|
Hydraulic Flow (Service Pump) |
19.3 gal/min (73 L/min) |
|
Steering Pump Flow |
11.5 gal/min (43.6 L/min) |
|
Remote Control Valves |
2, 3, or 4 Rear; Optional Mid-Mount (2 Sets) |
|
3-Point Hitch Lift Capacity |
5511 lb (2500 kg) at 24 in behind ball ends |
|
Front Hitch Lift Capacity |
3306 lb (1800 kg) |
|
Hitch Control |
Mechanical with Lift-O-Matic™ |
|
Wheelbase |
86.4 in (2196 mm) |
|
Gross Vehicle Weight |
9920 lb (4500 kg) |
|
Operator Platform |
Open Platform, Ergonomic Controls |
|
Front Axle |
4WD Standard or Narrow; Steering Angle: 45° |
