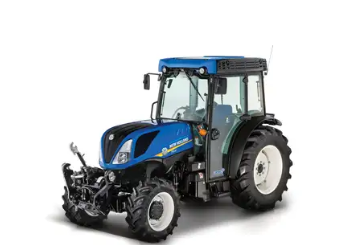

New Holland T4.100 – Specialized Tractor for Vineyards and Orchards
Specifications
|
Specification |
Details |
|
Tractor Model |
T4.100 (V/N/F - Cab/ROPS) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Narrow Orchards, Fruit Orchards, Steep Terrains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
99 HP (73 kW) Rated; 100 HP (73 kW) Max at 1900 RPM |
|

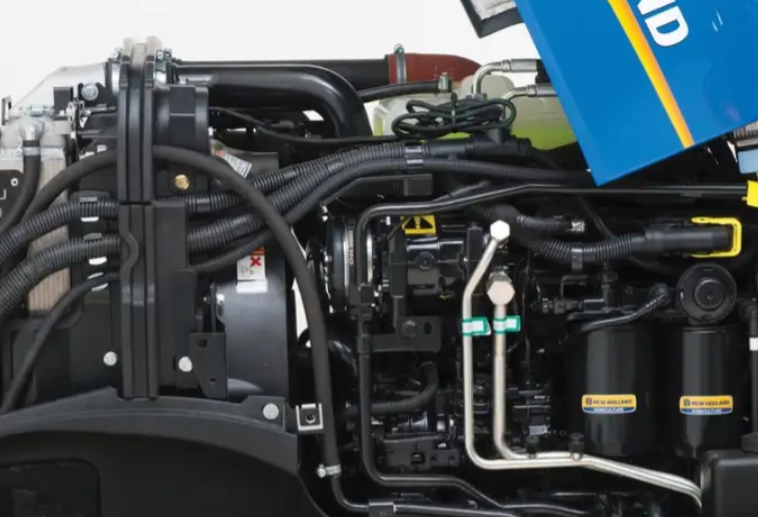

Engine Type |
FPT F36 (4-cylinder, 4 valves per cylinder) |
|
Engine Capacity |
3600 cm³ |
|
Engine Speed at Rated Power |
2300 RPM |
|
Transmission Type |
Powershuttle 16x16 (40 km/h, 0.7 km/h min); Dual Command™ 32x16 (40 km/h, 0.7 km/h min); Dual Command™ 44x16 with Creeper (40 km/h, 0.30 km/h min) [Cab]; Shuttle Command™ 16x16 (40 km/h, 0.7 km/h min); Split Command™ 32x16 (40 km/h, 0.7 km/h min); Shuttle Command™ 28x16 with Creeper (40 km/h, 0.17 km/h min) [ROPS] |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Terraglide™ (Optional) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD (Standard); SuperSteer™ (Optional for N/F) |
|
PTO |
540/540E (Standard); 540/540E/1000 Proportional (Optional); Electrohydraulic Engagement with 3 Progressive Modes |
|
Hydraulics Type |
Dual Pump with Load Sensing |
|
Hydraulic Pump |
64 l/min + 36 l/min (Standard); 80 l/min + 36 l/min (MegaFlow™ Optional) |
|
Max Valves (Rear) |
4 (Cab); 3+2/10 (ROPS) |
|
Max Valves (Side) |
8 (Cab); 4 (ROPS) |
|
Max Lift Capacity (Rear) |
2200 kg (V/N); 2520 kg (F) |
|
Max Lift Capacity (Front) |
1500 kg (Double-Acting) |
|
Wheelbase |
2180 mm (4WD); 2436 mm (SuperSteer™) |
|
Overall Width |
1061 mm (V), 1229 mm (N), 1380 mm (F) [Cab]; 1061 mm (V), 1229 mm (N), 1380 mm (F), 1472 mm (FL bassotto) [ROPS] |
|
Height |
1898 mm (Cab, Rear Axle to Roof); 1011 mm (ROPS V/N), 1011/1026 mm (ROPS F), 965 mm (ROPS FL bassotto) |
|
Total Weight |
4500 kg (V/N), 4800 kg (F) [Cab/ROPS] |
|
Fuel Tank Capacity |
90 L (V, Cab), 60 L (V, SuperSteer™ Cab), 104 L (N/F, Cab); 73 L (V, ROPS), 57 L (V, SuperSteer™ ROPS), 81 L (N/F, ROPS), 65 L (FL bassotto, ROPS) |
|
DEF Capacity |
11 L |
|
Emissions Compliance |
Stage V (HI-eSCR Compact) |
