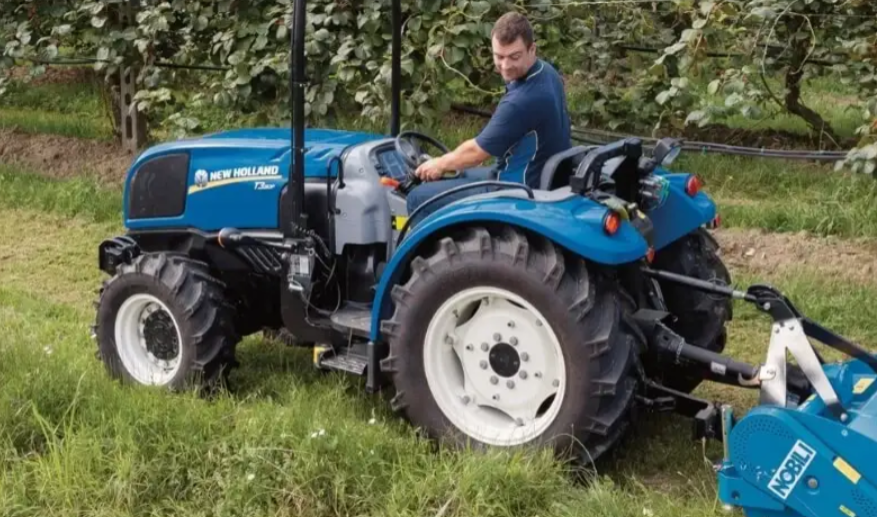

New Holland T3.80F – Compact Specialty Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
T3.80F |
|
Vehicle Category |
Compact Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Hop Yards, Nut Groves, Blueberry Farms, Poultry Houses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
74 HP (55 kW) Gross; 60 HP (45 kW) PTO |
|
Engine Type |
FPT Industrial S8000 (3-cylinder, Turbocharged, Intercooled, 4 valves per cylinder) |
|
Engine Capacity |
2.9 L (179 cu in) |
|
Engine Speed at Rated Power |
2300 RPM |
|
Transmission Type |
Synchro Shuttle™ 12x12 (30 or 40 km/h); 20x20 with Creeper (40 km/h, 0.10 km/h min) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD (Electro-Hydraulic Engagement) |
|
PTO |
60 HP (45 kW); 540/540E (Standard); 540/540E/Proportional Groundspeed (Optional) |
|
Hydraulics Type |
Dual Pump with Load Sensing |
|
Hydraulic Pump |
12.6 gpm (48 l/min) Implement; 7.6 gpm (29 l/min) Service; 20.2 gpm (77 l/min) Total |
|
Max Valves (Rear) |
2 (Standard); 3 (Optional) |
|
Max Lift Capacity (Rear) |
5022 lb (2277 kg) |
|
Wheelbase |
73 in (1866 mm) 4WD |
|
Overall Width |
57 in (1448 mm) Minimum |
|
Overall Height |
54 in (1397 mm) to Steering Wheel; 97 in (2476 mm) to ROPS |
|
Overall Length |
143 in (3637 mm) |
|
Total Weight |
5000 lb (2268 kg) ROPS/4WD |
|
Emissions Compliance |
Stage V (EGR + DOC) |
