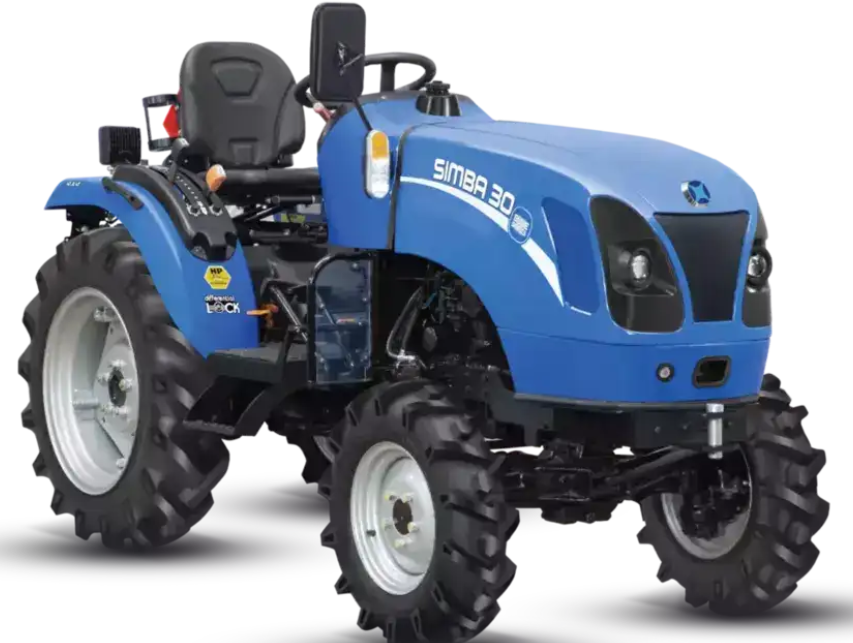

New Holland Simba 30 – Mini Tractor for Small-Scale Farming by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
Simba 30 |
|
Vehicle Category |
Mini Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mini Tractor for Small-Scale Farming |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
Mitsubishi Engine |
|
Number of Engine Cylinders |
3 |
|
Displacement |
1318 cc |
|
Engine Type |
Naturally Aspirated |
|
Engine Power |
29 HP (21.62 kW) |
|
Max. Torque |
82 Nm |
|
Rated RPM |
2800 |
|
Air Cleaner Type |
Dry Type with Clogging Sensor |
|
Clutch |
Single |
|
Transmission Type |
Sliding Mesh, Side Shift |
|
Drive Type |
4WD |
|
Number of Gears |
9 Forward + 3 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
180/85D12, 5 in x 12 in (127 mm x 304.8 mm) - Narrow track |
|
Rear Tyres |
8.3 in x 20 in (210.82 mm x 508 mm), 8 in x 18 in (203.2 mm x 457.2 mm) - Narrow track |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
ADDC 750 kg |
|
PTO Type |
540 & 1000 |
|
PTO HP |
22.2 HP (16.55 kW) |
|
Fuel Tank Capacity |
20 L |
|
Battery |
12 V & 65 Ah |
|
Overall Length |
2745 mm |
|
Width |
1040 mm / 930 mm (Narrow Track) |
|
Height |
1435 mm |
|
Wheelbase |
1490 mm |
|
Ground Clearance |
245 mm |
|
Weight |
920 kg |
|
Turning Radius |
2.4 m |
|
Additional Features |
Adjustable Rim, TT Pipe, Differential Lock, Power Steering, Best in Class Ergonomics, LED Turn Indicator & Plough Lamp, Projector Head Lamp |
|
Optional Features |
28 inch (0.71 m) Track width option |
