Specification

Details

Tractor Model

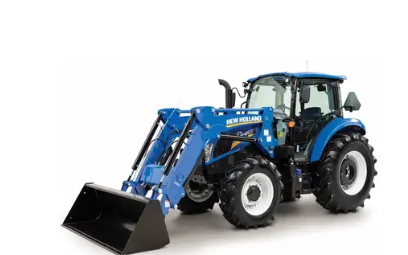

PowerStar 75

Vehicle Category

Compact Tractor

Fuel Type

Diesel

Application

Haymaking, Livestock Management, Mixed Farming, Loading, Field Work

Specification

Details

Engine

4 cylinders, Turbocharged, 3.4 L (207 cu.in.), F5C by FPT

Gross Horsepower

74 HP

PTO Power

65 HP

Transmission Type

12x12 with Power Shuttle

Maximum Forward Speed

4WD: 27 mi/h (43 km/h); 2WD: 20 mi/h (30 km/h)

Minimum Forward Speed

Creeper: 0.15 mi/h (0.24 km/h) with 20x20 Transmission

Specification

Details

Front Axle

2WD or 4WD with Limited Slip (Standard); 4WD with Electro-Hydraulic Engagement

Specification

Details

Emissions System

DOC + CEGR, Tier 4B

Fuel Tank Capacity

23.8 gal (90 L)

PTO Type

Independent Hydraulic, 540 RPM

Hydraulic Flow (Implement)

12.9 gal/min (48.9 L/min)

Hydraulic Flow (Steering)

9.5 gal/min (36 L/min)

Total Hydraulic Flow

22.4 gal/min (84.8 L/min)

Remote Control Valves

2 (Standard); 3 (Optional)

3-Point Hitch Lift Capacity (24 in Behind Ball Ends)

3664 lb (1662 kg)

3-Point Hitch Category

Category 2

710LU Loader: Max Lift Height

3209 mm (126.3 in) (NSL)

710LU Loader: Lift Capacity (Pivot Pins)

3461 lb (1572 kg)

710LU Loader: Lift Capacity (800 mm from Pivot)

2478 lb (1124 kg)

715LU Loader: Max Lift Height

3199 mm (125.9 in) (MSL)

715LU Loader: Lift Capacity (Pivot Pins)

3573 lb (1621 kg)

715LU Loader: Lift Capacity (800 mm from Pivot)

3179 lb (1442 kg)

Loader Bucket Width

2134 mm (84 in)

Loader Bucket Capacity (Level)

0.68 yd³ (0.52 m³)

Loader Bucket Capacity (Heaped)

0.91 yd³ (0.70 m³)

Wheelbase

4WD: 2132 mm (83.9 in); 2WD: 2180 mm (85.8 in)

Length

4WD: 3836 mm (151.0 in); 2WD: 3884 mm (152.9 in)

Width

1922 mm (75.6 in)

Height (Top of Cab)

2486 mm (97.9 in)

Weight

Cab/4WD: 2830 kg (6239 lb); Cab/2WD: 2550 kg (5622 lb)

Operator Platform

VisionView™ Cab with Command Arc Console

Lift Control

Lift-O-Matic™ Plus

Maintenance Interval

600 Hours
