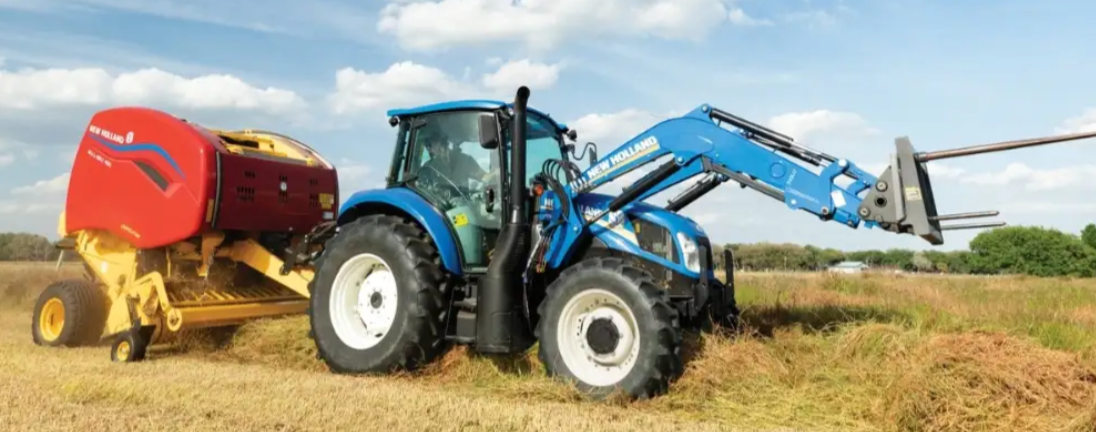

New Holland PowerStar™ 100 – Compact Tractor for Mixed Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
PowerStar 100 |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Haymaking, Livestock Management, Mixed Farming, Loading, Field Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, Turbocharged, 3.4 L (207 cu.in.), F5C by FPT |
|
Gross Horsepower |
99 HP |
|
PTO Power |
85 HP |
|
Transmission Type |
12x12 with Power Shuttle |
|
Maximum Forward Speed |
4WD: 27 mi/h (43 km/h); 2WD: 20 mi/h (30 km/h) |
|
Minimum Forward Speed |
Creeper: 0.15 mi/h (0.24 km/h) with 20x20 Transmission |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
2WD or 4WD with Limited Slip (Standard); 4WD with Electro-Hydraulic Engagement |
Components & Features
|
Specification |
Details |
|
Emissions System |
HI-eSCR ECOBlue™ with Cooled Low-Rate EGR, Tier 4B |
|
Fuel Tank Capacity |
30.3 gal (114.7 L) |
|
DEF Tank Capacity |
2.8 gal (10.6 L) |
|
PTO Type |
Independent Hydraulic, 540/1000 RPM (Optional) |
|
Hydraulic Flow (Implement) |
16.9 gal/min (63.8 L/min) |
|
Hydraulic Flow (Steering) |
9.7 gal/min (37 L/min) |
|
Total Hydraulic Flow |
26.6 gal/min (100.8 L/min) |
|
Remote Control Valves |
2 (Standard); 3 (Optional) |
|
3-Point Hitch Lift Capacity (24 in Behind Ball Ends) |
5620 lb (2549 kg) |
|
3-Point Hitch Category |
Category 2 |
|
710LU Loader: Max Lift Height |
3209 mm (126.3 in) (NSL) |
|
710LU Loader: Lift Capacity (Pivot Pins) |
3461 lb (1572 kg) |
|
710LU Loader: Lift Capacity (800 mm from Pivot) |
2478 lb (1124 kg) |
|
715LU Loader: Max Lift Height |
3199 mm (125.9 in) (MSL) |
|
715LU Loader: Lift Capacity (Pivot Pins) |
3573 lb (1621 kg) |
|
715LU Loader: Lift Capacity (800 mm from Pivot) |
3179 lb (1442 kg) |
|
720LU Loader: Max Lift Height |
3405 mm (134 in) (NSL) |
|
720LU Loader: Lift Capacity (Pivot Pins) |
3849 lb (1746 kg) |
|
720LU Loader: Lift Capacity (800 mm from Pivot) |
2632 lb (1194 kg) |
|
725LU Loader: Max Lift Height |
3430 mm (135 in) (MSL) |
|
725LU Loader: Lift Capacity (Pivot Pins) |
4204 lb (1907 kg) |
|
725LU Loader: Lift Capacity (800 mm from Pivot) |
3428 lb (1555 kg) |
|
Loader Bucket Width |
2134 mm (84 in) |
|
Loader Bucket Capacity (Level) |
0.68 yd³ (0.52 m³) |
|
Loader Bucket Capacity (Heaped) |
0.91 yd³ (0.70 m³) |
|
Wheelbase |
4WD: 2285 mm (89.9 in); 2WD: 2343 mm (92.2 in) |
|
Length |
4WD: 4086 mm (160.9 in); 2WD: 4144 mm (163.1 in) |
|
Width |
1923 mm (75.7 in) |
|
Height (Top of Cab or ROPS) |
Cab: 2594 mm (102.1 in); ROPS: 2706 mm (106.5 in) |
|
Weight |
Cab/4WD: 3700 kg (8157 lb); Cab/2WD: 3390 kg (7473 lb); ROPS/4WD: 3480 kg (7672 lb); ROPS/2WD: 3170 kg (6988 lb) |
|
Operator Platform |
VisionView™ Cab or ROPS with Command Arc Console |
|
Lift Control |
Lift-O-Matic™ Plus |
|
Maintenance Interval |
600 Hours |
