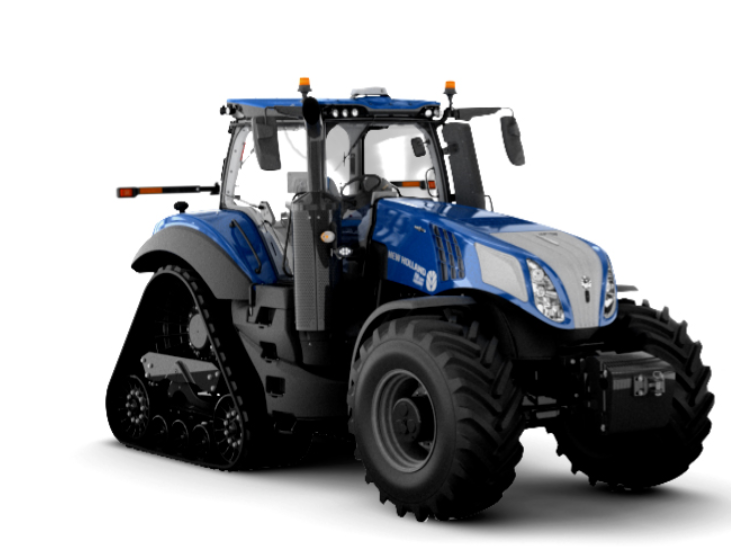

New Holland GENESIS® T8.435 SMARTTRAX™ – Row Crop Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
GENESIS® T8.435 SMARTTRAX™ |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Large-Scale Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
380 HP (279 kW) Auto Command™, 396 HP (295 kW) Ultra Command™ Rated; 435 HP (320 kW) Max with EPM |
|
Engine Type |
FPT Cursor 9 (6-cylinder, Turbocharged, Aftercooler) |
|
Engine Capacity |
8.7 Litres |
|
Engine Speed at Rated Power |
2000 RPM |
|
Engine Speed at Max Power |
1800 RPM |
|
Transmission Type |
Auto Command CVT |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Terraglide™ (Standard) |
|
Braking System |
Air Brakes, Brake Assist |
Components & Features
|
Specification |
Details |
|
Drive |
2 Rear Tracks + 2 MFD Front Tires |
|
Rear PTO |
540/1000 RPM (315 HP/235 kW) |
|
Hydraulics Type |
Closed Centre Load Sensing |
|
Hydraulic Pump |
223.3 l/min (59 gal/min) Standard; 325.5 l/min (86 gal/min) MegaFlow™ |
|
Max Valves (Rear) |
6 |
|
Overall Length |
6120 mm (241 in) |
|
Total Height |
3375 mm (132.9 in) |
|
Wheelbase |
3555 mm (140 in) |
|
Total Weight |
16500 kg (36376 lb) |
|
Fuel Tank Capacity |
617 L (163 gal) |
|
DEF Capacity |
99 L (26 gal) |
|
Emissions Compliance |
Tier 4B (ECOBlue™ HI-eSCR) |
