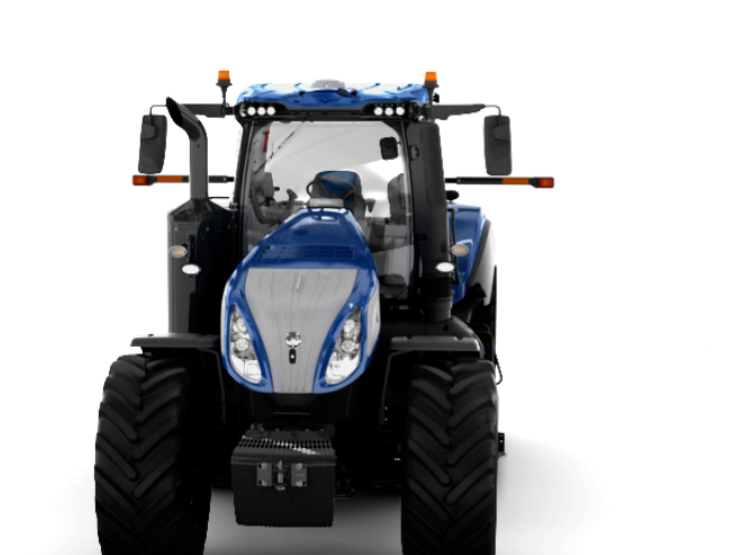

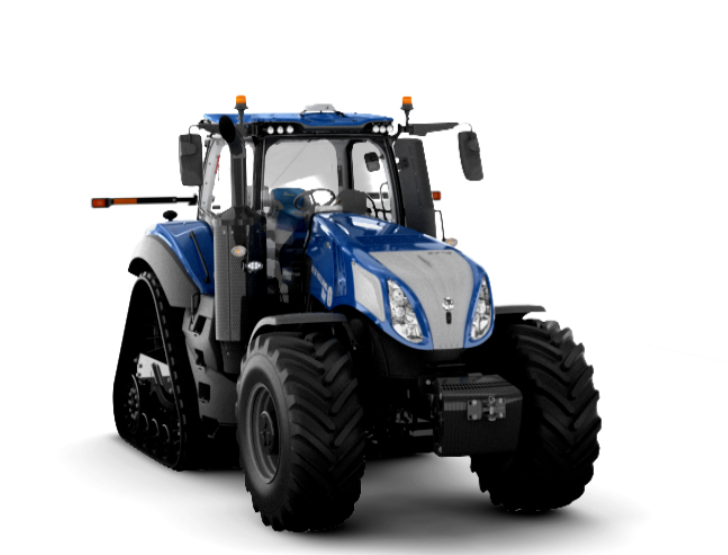

New Holland GENESIS® T8.410 SMARTTRAX™ – Row Crop Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
GENESIS® T8.410 SMARTTRAX™ |
|
Vehicle Category |
Row Crop Tractor |
|
Fuel Type |
Diesel |
|
Application |
Large-Scale Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
340 HP (250 kW) Rated; 409 HP (301 kW) Max with EPM |
|
Engine Type |
FPT Cursor 9 (6-cylinder, Turbocharged, Aftercooler) |
|
Engine Capacity |
8.7 Litres |
|
Engine Speed at Rated Power |
2000 RPM |
|
Engine Speed at Max Power |
1800 RPM |
|
Transmission Type |
Ultra Command 18x4 Powershift (Standard); Optional: Auto Command CVT |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Terraglide™ (Standard) |
|
Braking System |
Air Brakes, Brake Assist |
Components & Features
|
Specification |
Details |
|
Drive |
2 Rear Tracks + 2 MFD Front Tires |
|
Rear PTO |
540/1000 RPM (290 HP/216 kW) |
|
Hydraulics Type |
Closed Centre Load Sensing |
|
Hydraulic Pump |
223.3 l/min (59 gal/min) Standard; 325.5 l/min (86 gal/min) MegaFlow™ |
|
Max Valves (Rear) |
6 |
|
Overall Length |
6120 mm (241 in) |
|
Total Height |
3375 mm (132.9 in) |
|
Wheelbase |
3555 mm (140 in) |
|
Total Weight |
16233 kg (35788 lb) |
|
Fuel Tank Capacity |
678 L (179 gal) |
|
DEF Capacity |
99 L (26 gal) |
|
Emissions Compliance |
Tier 4B (ECOBlue™ HI-eSCR) |
