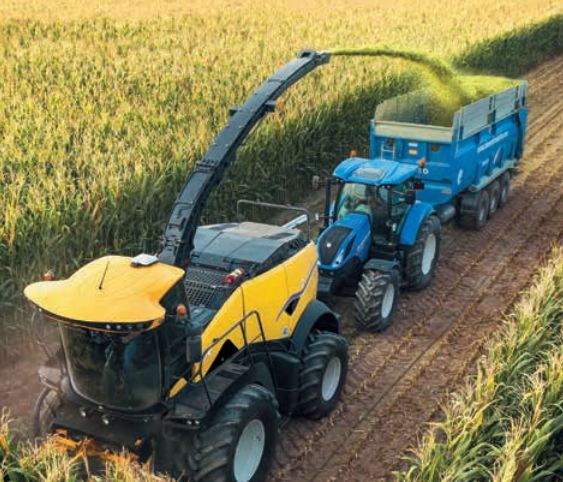

New Holland FR780 – 775 HP Forage Harvester for High-Capacity Harvesting
Specifications
|
Specification |
Details |
|
Model |
New Holland FR780 |
|
Vehicle Category |
Forage Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grass, maize, whole, biomass |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT V20, V8 cylinders, 20.1 L, Common Rail injection, Stage V ECOBlue™ HI-eSCR 2 |
|
Gross Horsepower |
721 HP (530 kW) at 2100 RPM, 775 HP (570 kW) max at 1700-1900 RPM |
|
Torque |
3202 Nm at 1700 RPM, 3323 Nm max at 1500 RPM, 48% torque rise (2100-1500 RPM) |
|
Transmission Type |
Hydrostatic, 4-speed gearbox, Optional mechanical 4WD with Terralock™ traction management, Optional differential lock |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Feedroll suspension dampening system |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
710/70R42, 800/70R38, or 900/60R38 |
Components & Features
|
Specification |
Details |
|
Feeding System |
HydroLoc™ drive, 4 feed rolls, Feed opening width: 860 mm, Anti-wrap filler sections, Replaceable wear bars, High performance feedroll module, Power Reverse hydraulic header reverser, Hydraulic quick coupler, Automatic pick-up speed synchronization, Compatible headers: UltraFeed™ pick-up (3.0-4.0 m), Pro Series maize (4.5-9 m, 6-12 rows), Varifeed™ combine-type, 130FB coppice |
|

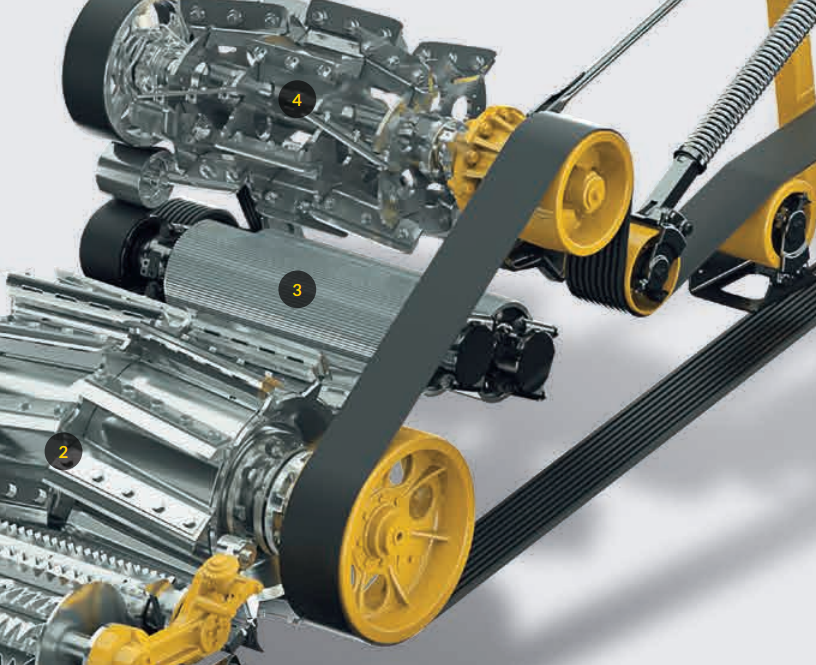

Chopping System |
V-shaped knife drum with 2 rows, Frame width: 900 mm, Cylinder width: 884 mm, Diameter: 710/690 mm, Speed: 1300 RPM, 2x20 knives (26000 cuts/min, 2-13 mm LOC), Adjust-O-Matic™ shearbar setting, Automatic knife sharpening system with reverse drive, MetaLoc™ metal detection (6 zones), RockAlert™ stone detection |
|
Crop Processor |
DuraCracker™ heavy duty crop processor, Roll diameter: 250 mm, Two chrome roll system with saw tooth (100/130 teeth) or DuraShredder™ spiral cut (110/145 teeth), Width: 750 mm, 30% or 40% speed differential, Roll clearance: 1-4 mm, Remote electro-hydraulic clearance control |
|
Blower |
Rotor diameter: 525 mm, Width: 750 mm, Speed: 2119 RPM at 2100 engine RPM |
|
Spout |
Max height: 6400 mm, Rotation angle: 210°, Spout extension: 720 mm (10-row), 1380 mm (12-row), Automatic home/work positions, Side collision protection, Optional heavy-duty wear liner |
|
Fuel Tank Capacity |
1200 L (standard) / 1500 L (optional), AdBlue: 200 L |
|
Width |
3190 mm or 3290 mm (transport) |
|
Wheelbase |
3200 mm |
|
Height |
3820 mm or 3840 mm (transport) |
|
Weight |
13650 kg (minimum, basic grass configuration) |
|
Features |
Forage Suite cab (6.8 m² glass, 76 dB(A) noise), Standard cloth air-suspension seat, Optional deluxe/leather seats, IntelliView IV Plus monitor (12” touchscreen), CommandGrip handle, Autofloat™, IntelliFill III (210° trailer filling), IntelliSteer, IntelliField, FieldOps, NutriSense NIR sensor, Automatic engine bay cleaning, LED lighting pack, Staircase illumination, Automatic greasing, Reversing camera, Air compressor, Dual-trumpet air horn, MP3 Bluetooth DAB radio, 2 USB ports, Rear bumper storage, ECO engine mode, Power Cruise II, CustomSteer™, VariBlade™ cooling fan, 240 A alternator, 3x800 CCA/107 Ah batteries |
