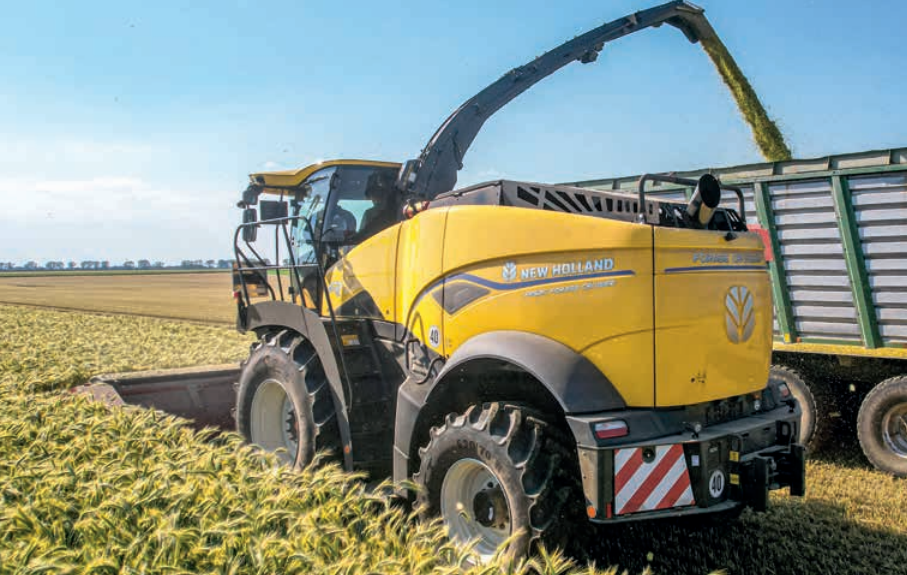

New Holland FR480 – 476 HP Forage Harvester for High-Capacity Harvesting
Specifications
|
Specification |
Details |
|
Model |
New Holland FR480 |
|
Vehicle Category |
Forage Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grass, maize, whole crop, biomass |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT Cursor 13, In-line 6 cylinders, 12.9 L, Common Rail injection, Stage V ECOBlue™ HI-eSCR 2 |
|
Gross Horsepower |
435 HP (320 kW) at 2100 RPM, 476 HP (350 kW) max at 1700-1900 RPM |
|
Torque |
1966 Nm at 1700 RPM, 2003 Nm max at 1500 RPM, 38% torque rise (2100-1500 RPM) |
|
Transmission Type |
Hydrostatic, 4-speed gearbox, Optional differential lock |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Feedroll suspension dampening system |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
680/85R32 |
Components & Features
|
Specification |
Details |
|
Feeding System |
HydroLoc™ drive, 4 feed rolls, Feed opening width: 860 mm, Anti-wrap filler sections, Replaceable wear bars, Standard feedroll module, Power Reverse hydraulic header reverser, Hydraulic quick coupler, Automatic pick-up speed synchronization, Compatible headers: UltraFeed™ pick-up (3.0-4.0 m), Pro Series maize (4.5-9 m, 6-12 rows), Varifeed™ combine-type, 130FB coppice |
|
Chopping System |
V-shaped knife drum with 2 rows, Frame width: 900 mm, Cylinder width: 884 mm, Diameter: 710/690 mm, Speed: 1130 RPM, 2x10 knives (11320 cuts/min, 5-26 mm LOC), Adjust-O-Matic™ shearbar setting, Automatic knife sharpening system, MetaLoc™ metal detection (6 zones), RockAlert™ stone detection |
|
Crop Processor |
Standard crop processor, Roll diameter: 250 mm, Two-roll system with saw tooth profile (99/126 teeth), Width: 750 mm, 22% speed differential, Manual clearance control (optional 200 mm rolls), Variflow™ system (mavedere meno maize/grass settings) |
|
Blower |
Rotor diameter: 525 mm, Width: 750 mm, Speed: 2119 RPM at 2100 engine RPM |
|
Spout |
Max height: 6400 mm, Rotation angle: 210°, Automatic home/work positions, Side collision protection, Optional heavy-duty wear liner |
|
Fuel Tank Capacity |
1200 L (standard) / 1500 L (optional), AdBlue: 200 L |
|
Width |
2970 mm (transport) |
|
Wheelbase |
3200 mm |
|
Height |
3860 mm (transport) |
|
Weight |
13050 kg (minimum, basic grass configuration) |
|
Features |
Forage Suite cab (6.8 m² glass, 76 dB(A) noise), Standard cloth air-suspension seat, Optional deluxe/leather seats, IntelliView IV Plus monitor (12” touchscreen), CommandGrip handle, Autofloat™, IntelliFill III (210° trailer filling), IntelliSteer, IntelliField, FieldOps, NutriSense NIR sensor, Automatic engine bay cleaning, LED lighting pack, Staircase illumination, Automatic greasing, Reversing camera, Air compressor, Dual-trumpet air horn, MP3 Bluetooth DAB radio, 2 USB ports, Rear bumper storage, ECO engine mode, Power Cruise II, 240 A alternator, 2x800 CCA/107 Ah batteries |
