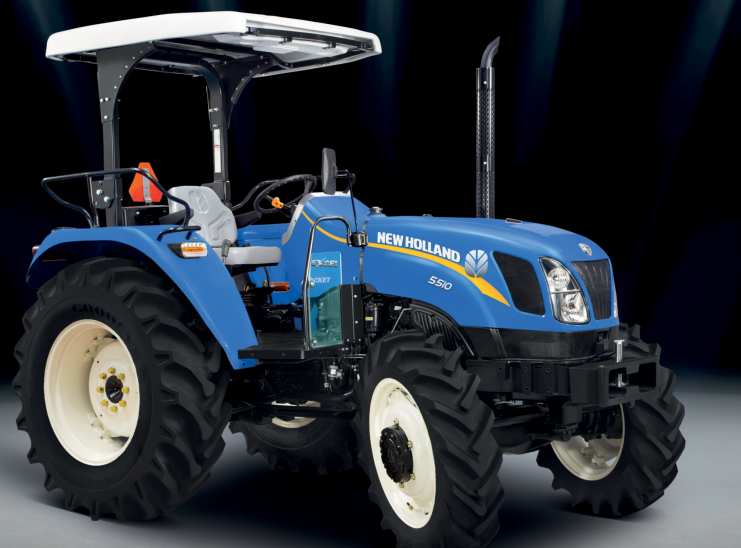

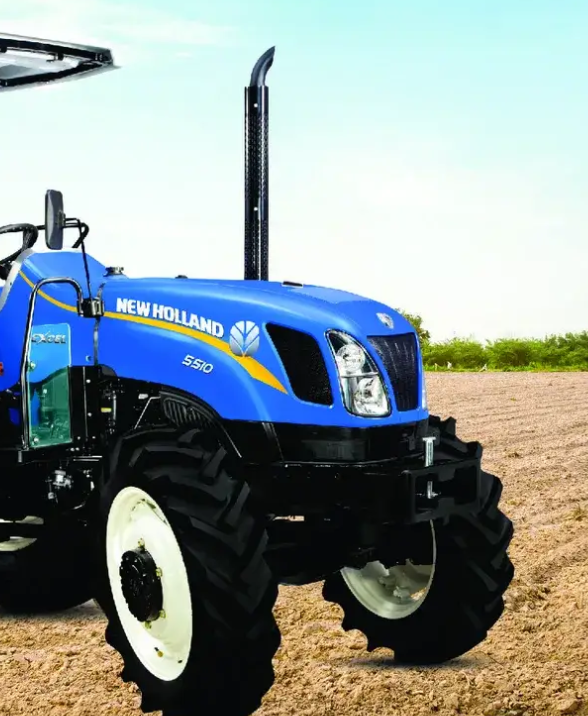

New Holland Excel Ultima 5510 4WD Rocket – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
Excel Ultima 5510 4WD Rocket |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT S8000 series |
|
Engine Type |
Rotary FIP with Turbocharger |
|
Engine Power |
36.94 kW (49.5 HP) |
|
Rated RPM |
2100 |
|
Air Cleaner Type |
Dry Type with Pre-cleaner |
|
Clutch |
Double Clutch with Independent PTO Clutch Lever |
|
Transmission Type |
Fully Synchromesh with Mechanical Shuttle |
|
Number of Gears |
12 Forward + 12 Reverse |
|
Rear Axle Type |
Heavy Duty Straight Axle Planetary Drive |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Real Oil Immersed Multi Disk Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
16.9 in x 28 in (429.26 mm x 711.2 mm) |
|
Rear Tyres |
9.5 in x 24 in (241.3 mm x 609.6 mm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
High Precision 2000 kg |
|
Lift-O-Matic with DRC & Isolator Valve |
Yes |
|
PTO Type |
540 |
|
PTO HP |
46 HP (34.3 kW) |
|
Fuel Tank Capacity |
60 L |
|
Battery & Alternator |
88 Ah Battery & 45 Amp Alternator |
|
Overall Length |
3900 mm |
|
Width |
2010 mm |
|
Height |
2455 mm |
|
Wheelbase |
2030 mm |
|
Ground Clearance |
390 mm |
|
Weight |
2720 kg |
|
Additional Features |
LED Fender Lamps, International Looks, CAT Eye Headlamps, Deluxe Driver Seat, Softek Clutch, Flat Platform with Floor Mat, Suspended Clutch & Brake Pedal, Synchro Shuttle, Hydraulic Actuated Brakes, Remote Valve up to 6 ports, ROPS with Fiber Canopy, Stabilizer, 55 kg Front Weight Carrier, Double Metal Face Sealing |
|
Optional Features |
20 Forward + 20 Reverse Creeper Gears, 24 Forward + 24 Reverse Multispeed Gears, Power Shuttle, 540E PTO, RPTO/GSPTO, High Precision 2500 kg with Assist Ram, 100 L Fuel Tank |
