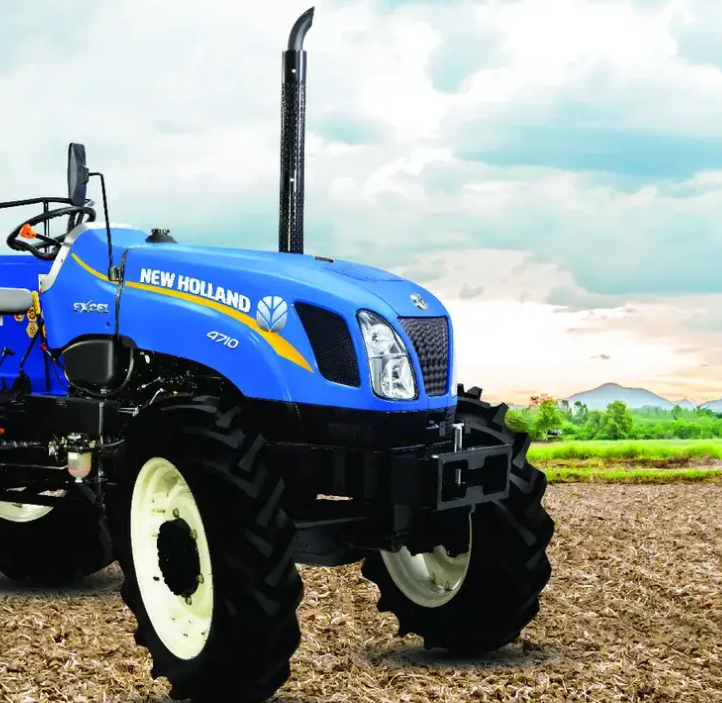

New Holland Excel 4710 2WD – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
Excel 4710 2WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT 8035.05D.943 |
|
Engine Type |
Naturally Aspirated |
|
Engine Power |
35.1 kW (47 HP) |
|
Rated RPM |
2100 |
|
Air Cleaner Type |
Dry Air Cleaner with Clogging Sensor |
|
Clutch |
Double Clutch with IPTO Lever |
|
Transmission Type |
Constant Mesh AFD Side Shift |
|
Number of Gears |
8 Forward + 8 Reverse |
|
Rear Axle Type |
Straight Axle Planetary Drive |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Multi Disc Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.5 in x 16 in (165.1 mm x 406.4 mm) |
|
Rear Tyres |
14.9 in x 28 in (378.46 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
1800 kg High Precision Hydraulic |
|
Lift-O-Matic |
Yes |
|
PTO Type |
Eptraa PTO - 540S |
|
PTO HP |
43 HP (32.06 kW) |
|
Fuel Tank Capacity |
60 L |
|
Battery & Alternator |
88 Ah & 35 Amp |
|
Overall Length |
3515 mm |
|
Width |
2080 mm |
|
Height |
2420 mm |
|
Wheelbase |
2104 mm |
|
Ground Clearance |
435 mm |
|
Weight |
2010 kg |
|
Additional Features |
International EXCEL Style, CAT EYE Headlamps, LED Fender Lamps, Synchro Shuttle, Heavy Duty Front Axle Support, Multisensing with DRC Valve, Tipping Trailer Pipe, Hot Air Deflector, Exhaust Muffler, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform, Polymer Fuel Tank |
|
Optional Features |
Economy PTO, ROPS with Canopy, Deluxe Seat with Belt, Potato Special Axle 48", Paddy Special - Double Metal Face Sealing, 90 kg HD Front Bumper, 8 Forward + 2 Reverse Gears, 16 Forward + 4 Reverse Gears, 16 Forward + 16 Reverse Gears, 540E PTO, Reverse PTO, GSPTO |
