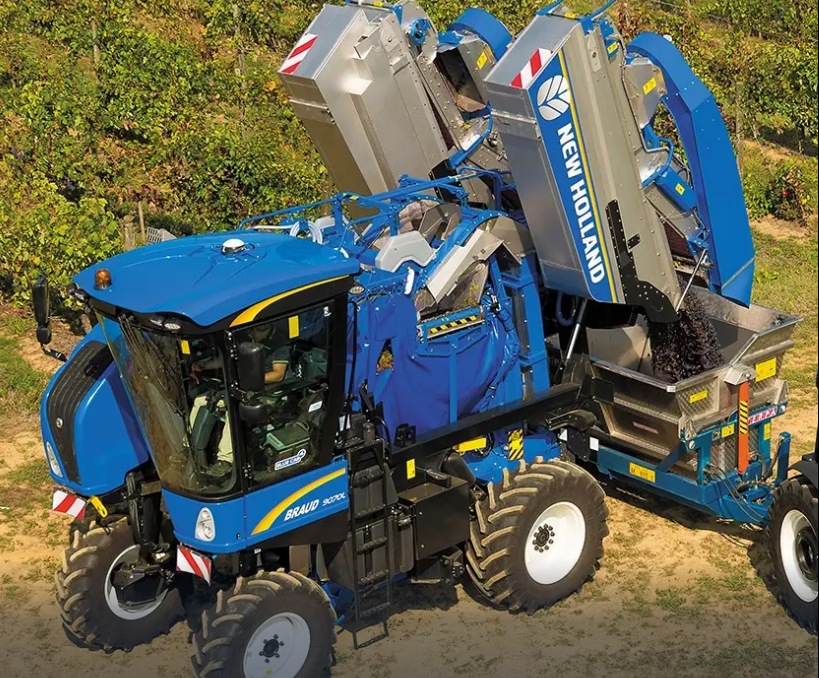

New Holland Braud 9090X Twin Hopper – 182 HP Grape Harvester for Extra High Capacity Vineyards
Specifications
|
Specification |
Details |
|
Model |
New Holland Braud 9090X Twin Hopper |
|
Vehicle Category |
Grape Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grapes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, 6 cylinders, Turbo with Intercooler, Stage V ECOBlue™ HI-eSCR 2 |
|
Gross Horsepower |
182 HP (134 kW) |
|
Transmission Type |
Heavy duty high-efficiency hydrostatic with Poclain Twin Lock, 30 kph (18.6 mph) road speed (market dependent), Cruise control with radar |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Optional front axle suspension |
|
Brakes |
Electric park brake with brake pedal and seat button |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
400/80R24 |
|
Rear Tyres |
540/65R28TL or 600/65R28TL |
Components & Features
|
Specification |
Details |
|
Harvesting Head |
Vineyard row spacing: >2.2 m, 24 SDC shakers, Semi-quick coupling, Hydraulic extra wide frame width adjustment pinch, Optional quick release shaker plates, Ground sensor for auto-leveling, Automatic swing lock system, Compatible implements: Berthoud Cruis’air sprayer, Provitis leaf remover (LR 350), trimmer (ST 120), pre-pruner (MP 122), GRV spreaders, Optional front multifunction tool carrier |
|
Shaking System |
SDC (Shaking Dynamic Control), 24 shakers, Flexible rear shaker fixation, Extra large shaker frame, 1500 mm max shaker height, Automated Crop Setup (ACS) |
|
Collection System |
Noria bucket system, 2x68 XXL buckets with 4 clips, 2499 mm sealed length, Tool-free tensioning system, Quick bucket clip, Noria pressure sensor |
|
Cleaning System |
High capacity cleaning conveyors (701 mm), 4 cleaning fans (2 upper 63.5 cm, 2 lower), Upper fans with rear exhaust, Pre-sorting system with rollers, Optional hydraulic cane removers, Adjustable flap for crop distribution, Auger |
|
Destemmer |
Optional SOCMA destemmer, Tool-free rotor height adjustment, 99.56% impurity elimination, MOG transfer auger, Optional crop repartitor for non-destemming from cab, Up to 25 tons/hour throughput |
|
Hopper |
2 stainless steel hoppers, 4000 L (2000 L per hopper), Progressive bin level indicator, 2 infrared level sensors (75% and 100% full) |
|
Washing System |
Pre-washing system with 6 nozzles, Rinse hose and valves, Wireless remote control, Washing suits (M-L, XL-XXL), 20-minute cycle time, Washing platform with folding handrails, Integrated storage compartment |
|
Fuel Tank Capacity |
270 L (diesel), 41 L (AdBlue) |
|
Width |
3180 mm (base unit), 2920 mm (min at rear wheels, narrow track) |
|
Wheelbase |
3300 mm |
|
Height |
3930 mm (max with cab, harvesting head on ground), Hopper tipping: 3100 mm (under hopper), 3280 mm (tipping axis) |
|
Ground Clearance |
2200-2970 mm (under tractor frame) |
|
Features |
IntelliView IV touchscreen monitor (26.4 cm), IMS 2.0, Automated Crop Setup (ACS), Blue Cab 4 (optional, Cat 2/4 filtration, auto air-con, heated/ventilated seat, LED lights, cool box), 2 cameras (optional +2), 12 LED lights with Light Control Panel, Bluetooth radio, 2 USB connections, Fold-down laptop table, Coat hook, Elastic stowage net, Front/rear sunshades, Electrically actuated ladder with LED light, Retractable right mirrors, Optional Row Tracking System (RTS), Optional grape weighing system with printer, Optional MyPLM Connect Telematics, Optional CustomSteer, Optional IntelliField, Centralized greasing, 600h service intervals |
