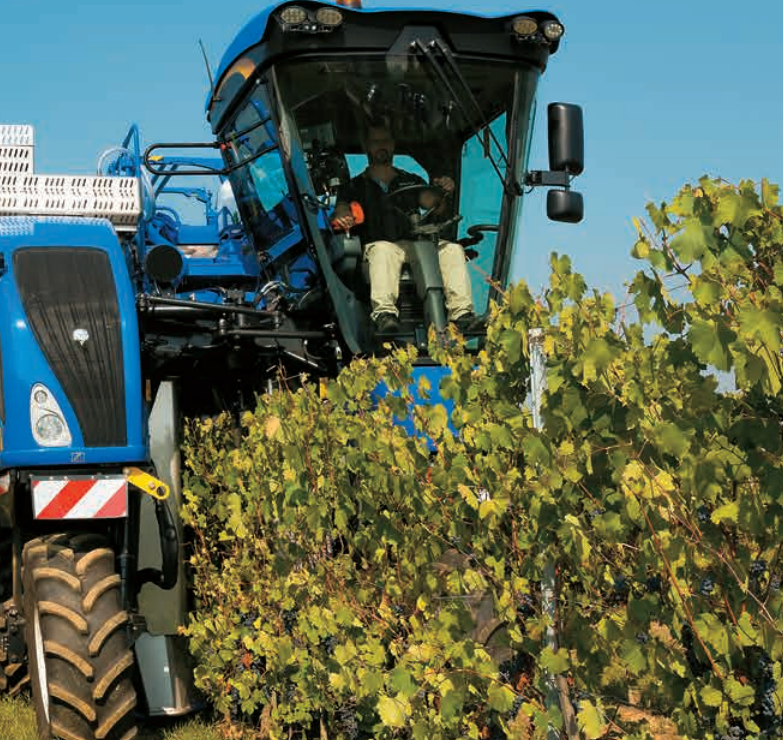

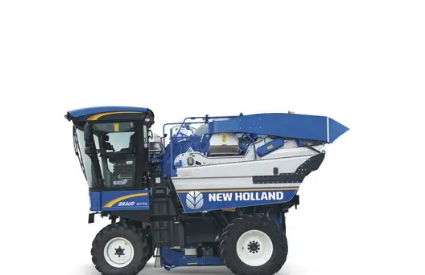

New Holland Braud 9070L – 164 HP Grape Harvester for High-Capacity Harvesting
Specifications
|
Specification |
Details |
|
Model |
New Holland Braud 9070L |
|
Vehicle Category |
Grape Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grapes, olives, almonds |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, 6 cylinders, Turbo Intercooler, Stage V ECOBlue™ HI-eSCR 2 |
|
Gross Horsepower |
164 HP (121 kW) |
|
Transmission Type |
Heavy Duty Hydrostatic with Anti-Skid Twin-Lock system, Road speed: 25 kph at 1800 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Optional front wheel hydropneumatic suspension |
|
Brakes |
Electric park brake |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
340/85R24, 400/80R24, or 420/70R24 |
|
Rear Tyres |
440/80R28, 480/70R28, 540/65R28, or 600/65R28 |
Components & Features
|
Specification |
Details |
|
Harvesting Head |
Vineyard row spacing: Large (>1.60 m), 14 SDC shakers (optional 16 or 18), Semi-quick coupling, Electric shaker pinch system, Ground sensor for autolevelling, Automatic swing lock system, Compatible implements: Berthoud Cruis’air sprayer, Provitis leaf remover (LR 350), trimmer (ST 120), pre-pruner (MP 122), GRV spreaders, Rear multifunction tool carrier |
|
Shaking System |
SDC (Shaking Dynamic Control), 14 shakers (optional 16 or 18), Low grape shaking (40 mm above bucket top), Fixed or adjustable shaker plate, Adjustable rod aperture via 2 electric actuators |
|
Collection System |
Noria basket system, 2x63 baskets, XXL 4-clip baskets, 2300 mm sealed length, Tool-free tensioning system, Quick bucket clip, Noria pressure sensor |
|
Cleaning System |
High capacity cleaning conveyors (700 mm), Upper cleaning fans with rear exhaust, Optional lower cleaning fans, Optional cane remover, Optional auger, Adjustable flap for crop repartition |
|
Destemmer |
Optional SOCMA evolution destemmer, Tool-free rotor height adjustment, Blue/white/pink mesh options, 99.56% impurity elimination, MOG transfer auger, Optional contractor pack (crop distributor, infrared sensors, non-destemming mode) |
|
Hopper |
2 stainless steel hoppers, 3100/3600 L (except with Opti-Grape™ II), Grape level sensors (75% and 100% full) |
|
Washing System |
Pre-washing system with 6 droplets, Rinse hose and valves, Wireless remote control, 20-minute cycle time, Washing platform with folding handrails |
|
Fuel Tank Capacity |
240 L (diesel), 41 L (AdBlue) |
|
Width |
2990 mm (base unit), 2530 mm (with harvesting head at rear wheels) |
|
Wheelbase |
2930 mm |
|
Height |
3690 mm (max with cab, harvesting head on ground), Hopper tipping: 2700 mm (under hopper), 2880 mm (tipping axis) |
|
Ground Clearance |
2000-2600 mm |
|
Features |
IMS 2.0 (Intelligent Management System 2.0), IntelliView IV touchscreen monitor (26.4 cm), Automated Crop Setup (ACS), Blue Cab 4 (Cat 2/4 filtration, auto air-con, air purging valve), 2 cameras (optional +2), 12 LED lights with Light Control Panel, Bluetooth radio, 2 USB ports, Fold-down laptop table, Coat hook, Elastic stowage net, Front/rear sunshades, Electrically actuated ladder, Retractable right mirrors, Optional Row Tracking System (RTS), Optional grape static weighing system with printer, MyPLM Connect Telematics, Optional CustomSteer, Optional IntelliField, Centralized greasing, 600h service intervals, Integrated storage compartment |
