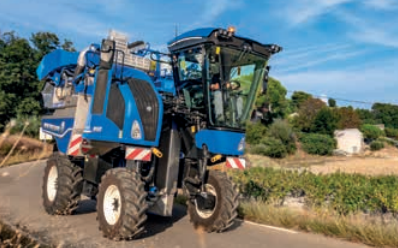

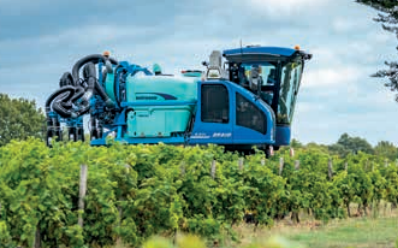

New Holland Braud 7.50M – 144 HP Grape Harvester for Narrow Vineyards
Specifications
|
Specification |
Details |
|
Model |
New Holland Braud 7.50M |
|
Vehicle Category |
Grape Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grapes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, 4 cylinders, Common Rail injection, Stage V ECOBlue™ Compact HI-eSCR |
|
Gross Horsepower |
144 HP (106 kW) |
|
Transmission Type |
Hydrostatic with anti-skid braking |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Optional front axle suspension |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
320/70R20 or 340/85R24 |
|
Rear Tyres |
340/85R24 or 460/70R24 |
Components & Features
|
Specification |
Details |
|
Harvesting Head |
Vineyard row spacing: Intermediate (>1.3 m), 10 SDC shakers (max 14), Sealing length: 1.9 m, Compatible implements: Berthoud sprayers, Provitis leaf remover, trimmer, pre-pruner |
|
Shaking System |
SDC (Shaking Dynamic Control), 10 shakers (max 14), Electric shaker rod aperture adjustment, Jackless shaking system, Fixed or optimized shaking plate, Three silent blocks for vibration isolation |
|
Collection System |
Noria basket conveyor system, Flexible polyurethane baskets |
|
Cleaning System |
High capacity cleaning conveyors (450 mm) |
|
Destemmer |
Standard destemmer, Optional Opti-Grape™ II (finger rotor with mesh, turbine air cushion), MOG transfer auger |
|
Hopper |
Stainless steel hoppers, 2800 L |
|
Fuel Tank Capacity |
160 L (diesel), 41 L (AdBlue) |
|
Width |
2770 mm (base unit), 2150 mm (with harvesting head at rear wheels) |
|
Wheelbase |
2780 mm |
|
Height |
3600 mm (max with cab, harvesting head on ground), Hopper tipping: 2420 mm (under hopper), 2690 mm (tipping axis) |
|
Ground Clearance |
1850-2350 mm |
|
Features |
IntelliView IV Plus touchscreen monitor (12”), IMS 2.0, Auto Comfort seat (heated/ventilated), Blue Cab 4, 12 LED headlights, Bluetooth radio, 2 cameras (optional +2), Electric ladder platform, Safety belt, Emergency hammer, Operator presence sensor, Optional Row Tracking System (RTS), Optional FieldOps telematics, Reversible cooling fan, Right-hand side deflector, CDHA auto height/tilt correction (500 mm lift) |
