New Holland Braud 10.90X Olive Side Conveyor – 182 HP Olive Harvester for Super High Density Orchards
Specifications
|
Specification |
Details |
|
Model |
New Holland Braud 10.90X Olive Side Conveyor |
|
Vehicle Category |
Olive Harvester |
|
Fuel Type |
Diesel |
|
Application |
Super High Density olive orchards |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, 6 cylinders, Turbo with Intercooler, Stage V ECOBlue™ HI-eSCR 2 |
|
Gross Horsepower |
182 HP (134 kW) |
|
Transmission Type |
Heavy duty high-efficiency hydrostatic with Poclain Twin Lock, 30 kph road speed (market dependent), Cruise control with radar |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front axle hydraulic suspension |
|
Brakes |
Electric park brake with brake pedal and seat button |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
400 mm |
|
Rear Tyres |
600 mm |
Components & Features
|
Specification |
Details |
|
Harvesting Head |
Super High Density olive orchard (1-1.35 m row spacing, 3.5-4 m height), 42 SDC shakers, Quick coupling, Hydraulic horizontal shaking rod spacing, Ground sensor for autolevelling, Automatic swing lock system, Front tunnel for tree entry |
|
Shaking System |
SDC (Shaking Dynamic Control), 42 shakers, Flexible rear rod fixation, 2000 mm shaker height, 99.9% olive detachment |
|
Collection System |
Noria basket system, 2x71 XXL baskets, 2500 mm sealed length, Tool-free tensioning system, Noria pressure sensor |
|
Cleaning System |
High capacity central cleaning conveyors (460 mm), Secondary lateral dispatching conveyors (230 mm), Upper cleaning fan with rear exhaust |
|
Hopper |
1 stainless steel hopper (2000 L), Right side conveyor (5.2 m), Hydraulic heavy duty auger |
|
Fuel Tank Capacity |
270 L (diesel), 41 L (AdBlue) |
|
Width |
3000 mm (base unit), 3240 mm (min at rear wheels with 600 mm tyres) |
|
Wheelbase |
3300 mm |
|
Height |
4040 mm (max with cab, harvesting head on ground), Hopper tipping: 3100 mm (under hopper), 3330 mm (tipping axis) |
|
Ground Clearance |
2310-3060 mm (under tractor frame) |
|
Features |

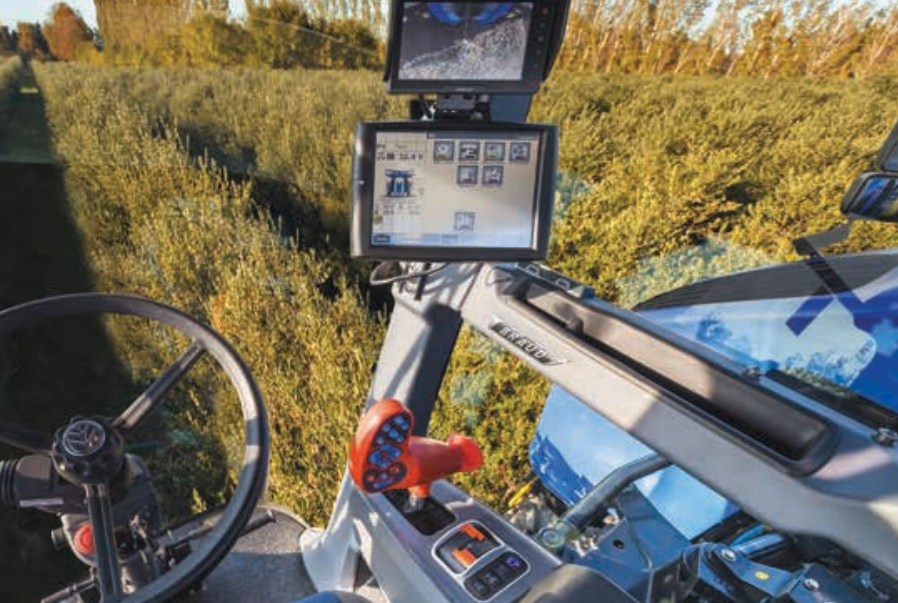

IntelliView IV touchscreen monitor (26.4 cm), IMS 2.0, Automated Crop Setup (ACS), Blue Cab 4 (optional, Cat 2/4 filtration, auto air-con, heated/ventilated seat, LED lights, cool box), 2 cameras (optional +2), 12 LED lights with Light Control Panel, Bluetooth radio, 2 USB plugs, Fold-down laptop table, Coat hook, Elastic stowage net, Front/rear sunshades, Electrically actuated ladder with LED light, Retractable right mirrors, Optional Row Tracking System (RTS), Optional MyPLM Connect Telematics, Centralized greasing, 600h service intervals |
