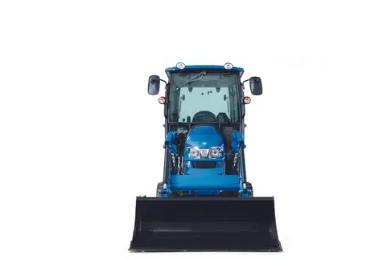

New Holland Boomer™ 50 – Compact Tractor for Landscaping and Horticulture
Specifications
|
Specification |
Details |
|
Tractor Model |
Boomer™ 50 |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Landscaping, Property Maintenance, Small Horticulture, Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, Turbocharged, 1.9 L (114.7 cu.in.) |
|
Gross Horsepower |
50 HP (37.3 kW) @ 2600 RPM |
|
PTO Power |
Gear: 42.5 HP (31.7 kW); Hydrostatic: 40.0 HP (29.8 kW) @ 540 RPM |
|
Transmission Type |
16x16 Gear or 3-Range Hydrostatic |
|
Maximum Forward Speed |
Gear: 17.0 mi/h (27.3 km/h); Hydrostatic: 17.9 mi/h (28.8 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four-Wheel Drive (Standard) |
|
Rear Differential Lock |
Mechanical |
|
Brake Type |
Wet, Multi-Disc |
Components & Features
|
Specification |
Details |
|
Emissions Level |
Tier 4B Final |
|
Alternator |
70 A |
|
Fuel Tank Capacity |
ROPS: 40 L (10.5 gal); Cab: 47 L (12.4 gal) |
|
PTO Type |
Independent Electro-Hydraulic Engagement |
|
Rear PTO Speed |
540 RPM |
|
Mid PTO Speed |
2000 RPM |
|
Cruise Control |
Standard on Hydrostatic Models |
|
Engine Speed Management |
Standard |
|
Hydraulic Flow (Implement) |
8.2 gal/min (31 L/min) |
|
Hydraulic Flow (Steering) |
Gear: 4.2 gal/min (15.9 L/min); Hydrostatic: 5.3 gal/min (19.9 L/min) |
|
Total Hydraulic Flow |
Gear: 12.4 gal/min (46.8 L/min); Hydrostatic: 13.5 gal/min (50.8 L/min) |
|
Remote Control Valves |
1 Standard; 2 Optional |
|
3-Point Hitch |
Category I, Telescopic Stabilizers, Flexible Link Ends |
|
3-Point Hitch Lift Capacity (Ball Ends) |
1250 kg (2756 lb) |
|
3-Point Hitch Lift Capacity (24 in Behind Ball Ends) |
960 kg (2116 lb) |
|
Compatible Front Loaders |
260TLA |
|
260TLA Loader: Lift Capacity (500 mm Forward, Max Height) |
839 kg (1849 lb) |
|
260TLA Loader: Lift Capacity (Bucket Pivot, Max Height) |
1076 kg (2371 lb) |
|
260TLA Loader: Breakout Force (500 mm Forward) |
1447 kg (3191 lb) |
|
260TLA Loader: Breakout Force (Bucket Pivot) |
1851 kg (4081 lb) |
|
260TLA Loader: Max Lift Height (Bucket Pivot) |
2769 mm (109 in) |
|
260TLA Loader: Max Dump Angle |
56 degrees |
|
260TLA Loader: Max Rollback Angle |
28 degrees |
|
260TLA Loader: Lift Time |
3.8 seconds |
|
260TLA Loader: Lowering Time |
2.0 seconds |
|
260TLA Loader: Bucket Dump Time |
3.5 seconds |
|
260TLA Loader: Bucket Retract Time |
2.2 seconds |
|
Wheelbase |
1860 mm (73.2 in) |
|
Length |
3254 mm (128.1 in) |
|
Width |
1755 mm (69.1 in) |
|
Height (Top of Cab or ROPS) |
ROPS: 2466 mm (97.1 in); Cab: 2388 mm (94 in) |
|
Weight |
ROPS: Gear: 3424 kg (1553 lb); Hydrostatic: 3490 kg (1583 lb); Cab: 1903 kg (4194 lb) |
|
Operator Platform |
Cab or Foldable ROPS |
