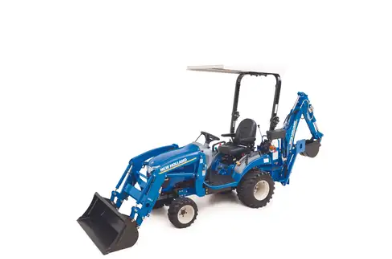

New Holland Boomer™ 40 – Compact Tractor for Landscaping and Horticulture
Specifications
|
Specification |
Details |
|
Tractor Model |
Boomer™ 40 |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Landscaping, Property Maintenance, Small Horticulture, Agriculture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, Turbocharged, 1.9 L (114.7 cu.in.) |
|
Gross Horsepower |
40 HP (29.2 kW) @ 2600 RPM |
|
PTO Power |
Gear: 34.0 HP (25.4 kW); Hydrostatic: 32.0 HP (23.9 kW) @ 540 RPM |
|
Transmission Type |
12x12 Gear or 3-Range Hydrostatic |
|
Maximum Forward Speed |
Gear: 14.2 mi/h (22.9 km/h); Hydrostatic: 14.8 mi/h (23.9 km/h) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four-Wheel Drive (Standard) |
|
Rear Differential Lock |
Mechanical |
|
Brake Type |
Wet, Multi-Disc |
Components & Features
|
Specification |
Details |
|
Emissions Level |
Tier 4B Final |
|
Alternator |
70 A |
|
Fuel Tank Capacity |
ROPS: 40 L (10.5 gal); Cab: 47 L (12.4 gal) |
|
PTO Type |
Independent Electro-Hydraulic Engagement |
|
Rear PTO Speed |
540 RPM |
|
Mid PTO Speed |
2000 RPM |
|
Cruise Control |
Standard on Hydrostatic Models |
|
Engine Speed Management |
Standard |
|
Hydraulic Flow (Implement) |
8.2 gal/min (31 L/min) |
|
Hydraulic Flow (Steering) |
Gear: 4.2 gal/min (15.9 L/min); Hydrostatic: 5.3 gal/min (19.9 L/min) |
|
Total Hydraulic Flow |
Gear: 12.4 gal/min (46.8 L/min); Hydrostatic: 13.5 gal/min (50.8 L/min) |
|
Remote Control Valves |
1 Standard; 2 Optional |
|
3-Point Hitch |
Category I, Telescopic Stabilizers, Flexible Link Ends |
|
3-Point Hitch Lift Capacity (Ball Ends) |
820 kg (1808 lb) |
|
3-Point Hitch Lift Capacity (24 in Behind Ball Ends) |
610 kg (1345 lb) |
|
Compatible Front Loaders |
250TLA |
|
250TLA Loader: Lift Capacity (500 mm Forward, Max Height) |
614 kg (1354 lb) |
|
250TLA Loader: Lift Capacity (Bucket Pivot, Max Height) |
826 kg (1822 lb) |
|
250TLA Loader: Breakout Force (500 mm Forward) |
1109 kg (2444 lb) |
|
250TLA Loader: Breakout Force (Bucket Pivot) |
1477 kg (3257 lb) |
|
250TLA Loader: Max Lift Height (Bucket Pivot) |
2642 mm (104 in) |
|
250TLA Loader: Max Dump Angle |
48 degrees |
|
250TLA Loader: Max Rollback Angle |
30 degrees |
|
250TLA Loader: Lift Time |
3.8 seconds |
|
250TLA Loader: Lowering Time |
2.0 seconds |
|
250TLA Loader: Bucket Dump Time |
3.5 seconds |
|
250TLA Loader: Bucket Retract Time |
2.2 seconds |
|
Wheelbase |
1676 mm (66 in) |
|
Length |
3023 mm (119 in) |
|
Width |
1687 mm (66.4 in) |
|
Height (Top of Cab or ROPS) |
ROPS: 2355 mm (92.7 in); Cab: 2286 mm (90 in) |
|
Weight |
ROPS: Gear: 2804 kg (1272 lb); Hydrostatic: 2870 kg (1302 lb); Cab: 1622 kg (3574 lb) |
|
Operator Platform |
Cab or Foldable ROPS |
