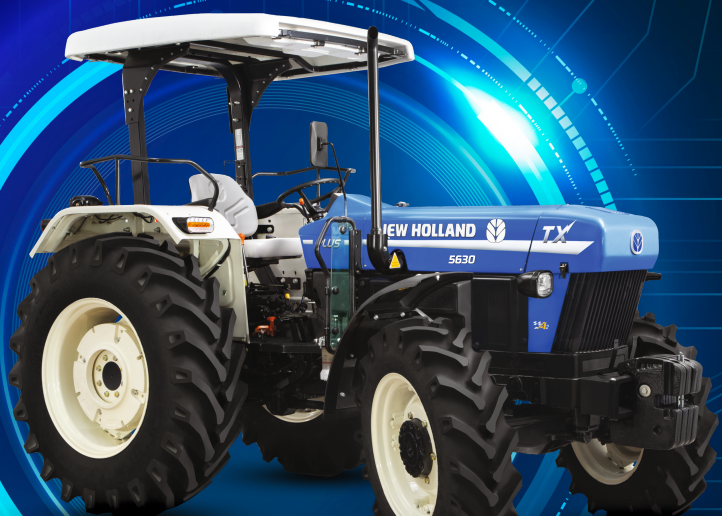

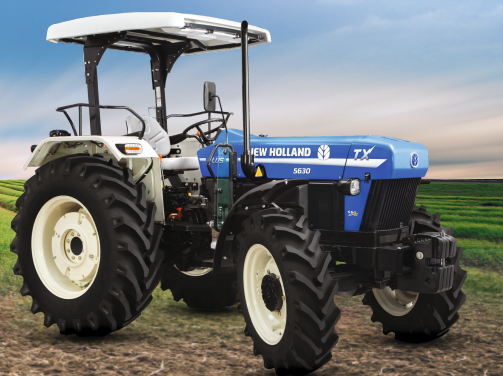

New Holland 5630 TX Plus TREM-IV 2WD – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
5630 TX Plus TREM-IV 2WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT S8000 series 12 Valve HPCR Engine |
|
Engine Type |
High Pressure Common Rail (TREM IV) |
|
Engine Power |
55 kW (75 HP Cat.) |
|
Rated RPM |
2300 |
|
Air Cleaner Type |
8 inch (0.20 m) Dual Element, Dry Type |
|
Clutch |
Double Clutch with Independent Clutch Lever |
|
Transmission Type |
Partial Synchro Mesh |
|
Number of Gears |
12 Forward + 3 Reverse UG |
|
Rear Axle Type |
Heavy Duty Hub Reduction |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Multi Disk Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.5 in x 20 in (165.1 mm x 508 mm) |
|
Rear Tyres |
18.4 in x 30 in (467.36 mm x 762 mm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
Sensomatic24 Hydraulic with 2000 kg Lift capacity |
|
Lift-O-Matic Height Limiter with DRC & Isolator Valve |
Yes |
|
PTO Type |
540 + GSPTO |
|
PTO HP |
69 HP (51.45 kW) |
|
Fuel Tank Capacity |
70 L |
|
Battery & Alternator |
100 Ah Battery & 55 Amp Alternator |
|
Overall Length |
3780 mm |
|
Width |
2000 mm |
|
Height |
2600 mm |
|
Wheelbase |
2065 mm |
|
Ground Clearance |
530 mm |
|
Weight |
2635 kg |
|
Additional Features |
Multiple Engine Modes, DRL, Telescopic Stabilizer |
|
Optional Features |
12 Forward + 3 Reverse Creeper, 7.5 in x 16 in (190.5 mm x 406.4 mm) Front Tyres, RPTO (with UG Gear Box Only), Remote Valve up to 4 Ports, Swinging Drawbar, ROPS with Canopy, Front Fender |
