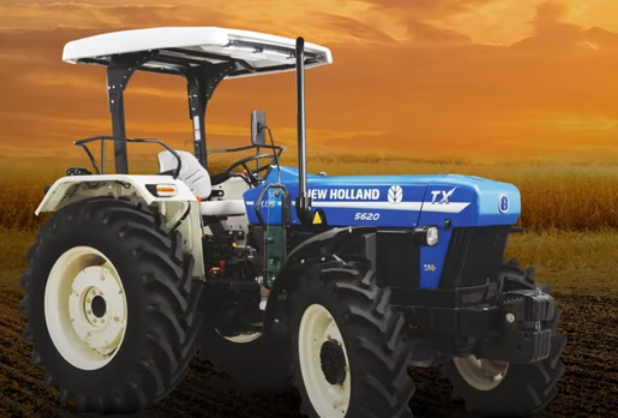

New Holland 5620 TX Plus TREM-IV – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
New Holland 5620 TX Plus TREM-IV 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT S8000 series 12 Valve HPCR Engine |
|
Engine Type |
High Pressure Common Rail (TREM IV) |
|
Engine Rated RPM |
2300 |
|
Clutch Type |
Double with Independent Clutch Lever |
|
Transmission Type |
Partial Synchro Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
12F + 3R UG |
|
Optional Transmission |
12F + 3R Creeper |
|
Power Range |
65 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Multi Disk Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
11.2 x 24 in (284.48 mm x 609.6 mm) |
|
Rear Tyres |
16.9 x 30 in (429.26 mm x 762 mm) |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2000 kg |
|
Hydraulic Control System |
Sensomatic24 with DRC & Isolator Valve, Lift-O-Matic with Height Limiter |
|
PTO Power |
64 HP |
|

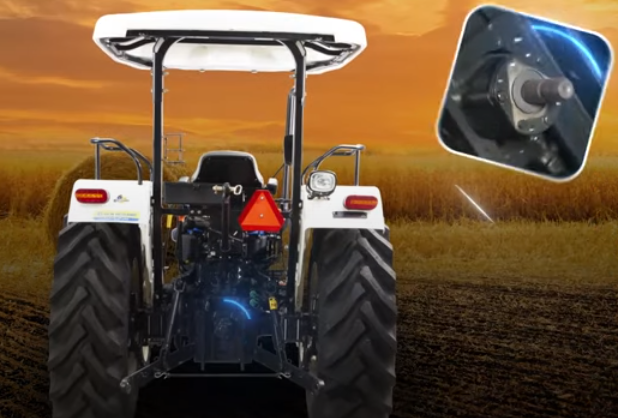

PTO Type |
540 + GSPTO/RPTO (RPTO with UG Gearbox Only) |
|
PTO Clutch Lever |
Independent |
|
Fuel Tank Capacity |
70 L |
|
Battery |
100 Ah |
|
Alternator |
55 Amp |
|
Air Cleaner Type |
8 inch (0.20 m) Dual Element, Dry Type |
|
Rear Axle Type |
Heavy Duty Hub Reduction |
|
Power Steering |
Power Steering |
|
Multiple Engine Modes |
Yes |
|
Daytime Running Lights (DRL) |
Yes |
|
Telescopic Stabilizer |
Yes |
|
Remote Valve |
Up to 4 Ports (Optional) |
|
Swinging Drawbar |
Yes (Optional) |
|
ROPS with Canopy |
Yes (Optional) |
|
Front Fender |
Yes (Optional) |
|
Overall Length |
3750 mm |
|
Width |
1985 mm |
|
Height |
2565 mm |
|
Wheelbase |
2045 mm |
|
Ground Clearance |
405 mm |
|
Weight |
2750 kg |
