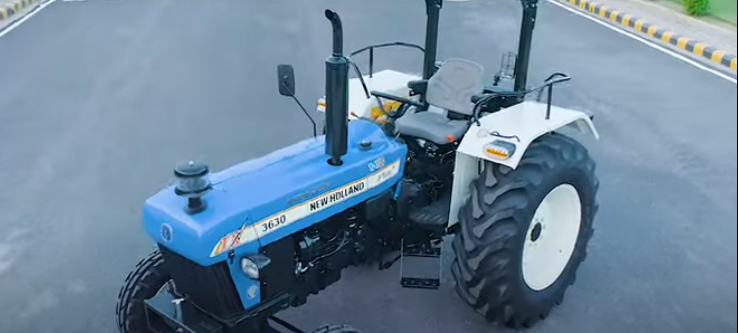

New Holland 3630 TX Plus Special Edition – 2WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
New Holland 3630 TX Plus Special Edition 2WD |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT S8000 series |
|
Engine Type |
Rotary FIP with Turbocharger |
|
Engine Rated RPM |
2100 |
|
Clutch Type |
Double with Independent PTO Clutch Lever |
|
Transmission Type |
Constant Mesh/Partial Synchro Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8F + 2R |
|
Optional Transmission |
12F + 3R UG |
|
Optional Transmission |
12F + 3R Creeper |
|
Power Range |
49.5 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Real Oil Immersed Multi Disk Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.5 x 16 in (190.5 mm x 406.4 mm) |
|
Rear Tyres |
16.9 x 28 in (429.26 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1700 kg / 2000 kg (Optional) |
|
Hydraulic Control System |
Sensomatic24 with DRC & Isolator Valve, Lift-O-Matic with Height Limiter |
|
PTO Power |
46 HP |
|
PTO Type |

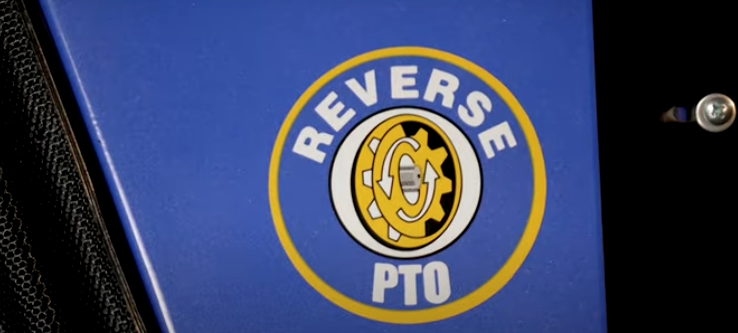

540 + GSPTO/RPTO (RPTO with UG Gearbox Only) |
|
PTO Clutch Lever |
Independent |
|
Fuel Tank Capacity |
60 L |
|
Battery |
88 Ah |
|
Alternator |
45 Amp |
|
Air Cleaner Type |
Dry Type Air Cleaner |
|
Rear Axle Type |
Outboard Reduction |
|
Power Steering |
Power Steering |
|
Softek Clutch |
Yes |
|
Clutch Safety Lock |
Yes |
|
Front Weight Carrier |
55 kg |
|
Remote Valve |
Yes |
|
Double Metal Face Sealing |
Yes |
|
ROPS with Fiber Canopy |
Yes |
|
Clear-lens Headlamp with DRL |
Yes |
|
LED Fender Lamps |
Yes |
|
Potato Special Axle |
48 inches |
|
Overall Length |
3700 mm |
|
Width |
1960 mm |
|
Height |
2280 mm |
|
Wheelbase |
2040 mm |
|
Ground Clearance |
505 mm |
|
Weight |
2195 kg |
