New Holland 3600 TX Super Heritage Edition 2WD – Agricultural Tractor by New Holland

Images:

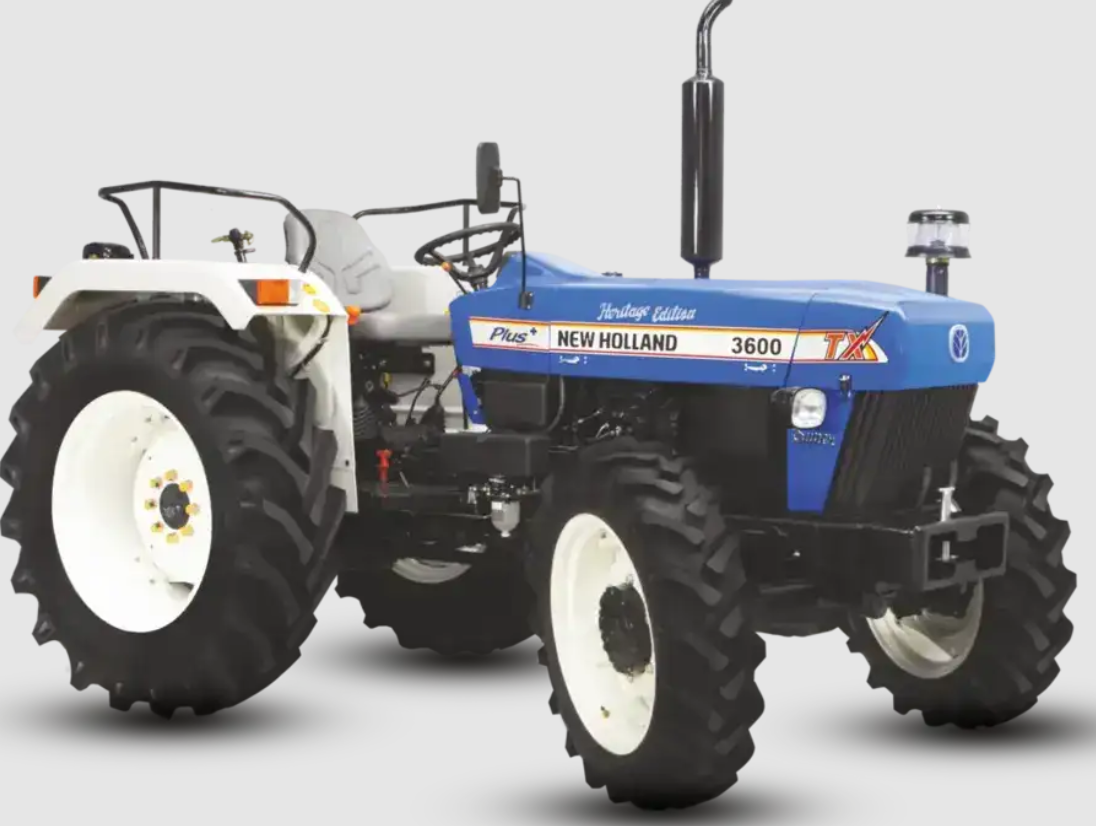

1

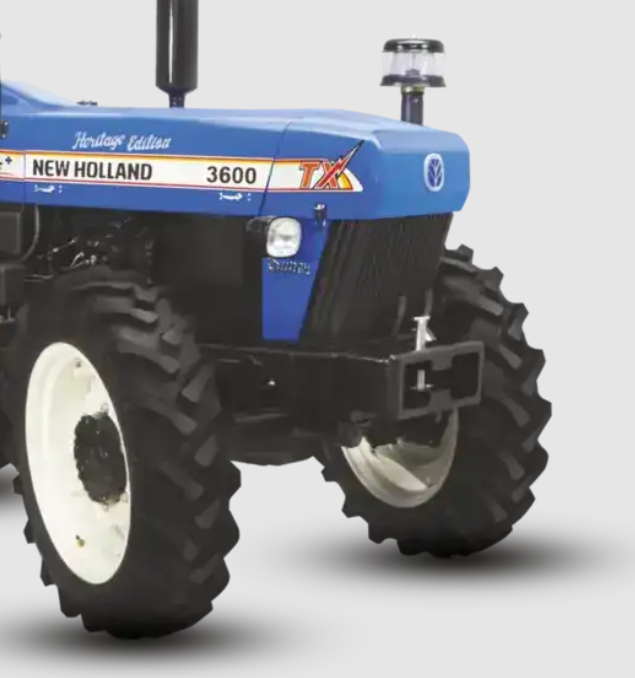

2

Specifications

Specification	Details
Tractor Model	3600 TX Super Heritage Edition 2WD
Vehicle Category	Tractor
Fuel Type	Diesel
Application	Agricultural Tractor

Frame & Drivetrain

Specification	Details
Engine Model	FPT 8035.05D.943
Engine Type	Naturally Aspirated
Engine Power	35.1 kW (47 HP)
Rated RPM	2100
Air Cleaner Type	Oil Bath Type with Pre-cleaner
Clutch	Single Clutch
Transmission Type	Constant Mesh AFD Side Shift
Number of Gears	8 Forward + 2 Reverse
Rear Axle Type	Straight Axle Planetary Drive

Suspension & Brakes

Specification	Details
Brake Type	Oil Immersed Multi Disc Brake
Steering Type	Power Steering

Wheels & Tyres

Specification	Details
Front Tyres	6.5 in x 16 in (165.1 mm x 406.4 mm)
Rear Tyres	14.9 in x 28 in (378.46 mm x 711.2 mm)

Components & Features

Specification	Details
Lift Capacity	1800 kg High Precision Hydraulic
Lift-O-Matic	Yes
PTO Type	Eptraa PTO - 540S, Reverse PTO
PTO HP	43 HP (32.06 kW)
Fuel Tank Capacity	55 L
Battery & Alternator	88 Ah & 35 Amp
Overall Length	3490 mm
Width	1800 mm
Height	2350 mm
Wheelbase	2104 mm
Ground Clearance	430 mm
Weight	1965 kg
Additional Features	Heavy Duty Front Axle Support, Softek Clutch, Multisensing with DRC Valve, Tipping Trailer Pipe, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform, Polymer Fuel Tank
Optional Features	Double Clutch with IPTO Lever, Speedtech 16 Forward + 4 Reverse Gears, 8 Forward + 8 Reverse Gears, Economy PTO, Synchro Shuttle 8F+8R, 540E PTO, GSPTO, Remote Valve, 90 kg HD Front Bumper, 55kg FWC, Potato Special Axle 48", Paddy Special - Double Metal Face Sealing, Deluxe Driver Seat, 7.5 in x 16 in (190.5 mm x 406.4 mm) Front Tyres, 6 in x 16 in (152.4 mm x 406.4 mm) Front Tyres, 13.6 in x 28 in (345.44 mm x 711.2 mm) Rear Tyres
