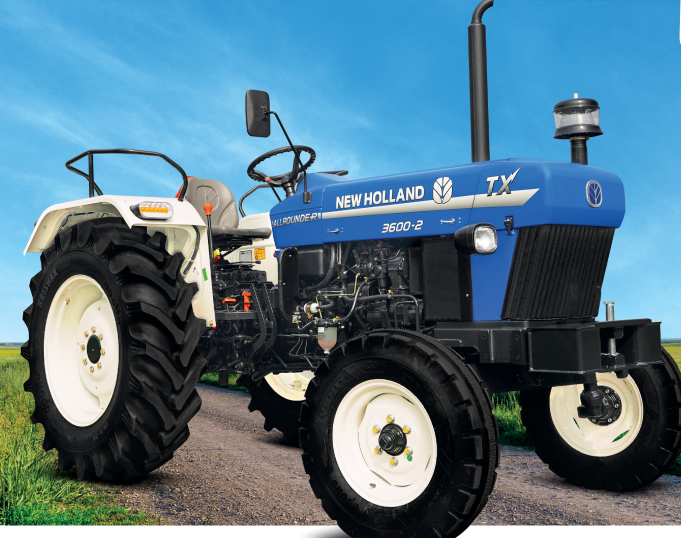

New Holland 3600-2 TX All Rounder Plus 4WD – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
3600-2 TX All Rounder Plus 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT S8000 series |
|
Engine Type |
Naturally Aspirated |
|
Engine Power |
36.94 kW (49.5 HP) |
|
Rated RPM |
2100 |
|
Air Cleaner Type |
Oil Bath Type with Pre-Cleaner |
|
Clutch |
Double Clutch with Independent PTO Clutch Lever |
|
Transmission Type |
Constant Mesh |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Rear Axle Type |
Outboard Reduction |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Real Oil Immersed Multi Disk Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
9.5 in x 24 in (241.3 mm x 609.6 mm) |
|
Rear Tyres |
14.9 in x 28 in (378.46 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
Sensomatic24 Hydraulic (1700 kg) |
|
Lift-O-Matic with DRC & Isolator Valve |
Yes |
|
PTO Type |
540 + GSPTO |
|
PTO HP |
46 HP (34.3 kW) |
|
Fuel Tank Capacity |
60 L |
|
Battery & Alternator |
88 Ah Battery & 45 Amp Alternator |
|
Overall Length |
3440 mm |
|
Width |
1840 mm |
|
Height |
2430 mm |
|
Wheelbase |
1920 mm |
|
Ground Clearance |
390 mm |
|
Weight |
2460 kg |
|
Additional Features |
Clear-lens Head Lamp with DRL, LED Fender Lamps, New Side Muffler, Heat Guards, Improved platform height with double footsteps, Softek Clutch with Safety lock, 55 kg Front Weight Carrier, Lift-O-Matic with Height Limiter |
|
Optional Features |
12 Forward + 3 Reverse Creeper Gears, 12 Forward + 3 Reverse UG Gears, Partial Synchro Mesh Transmission, Sensomatic24 Hydraulic (2000 kg), Reverse PTO (with UG Gear Box), ROPS with Fiber Canopy, Remote Valve, Double Metal Face Sealing |
