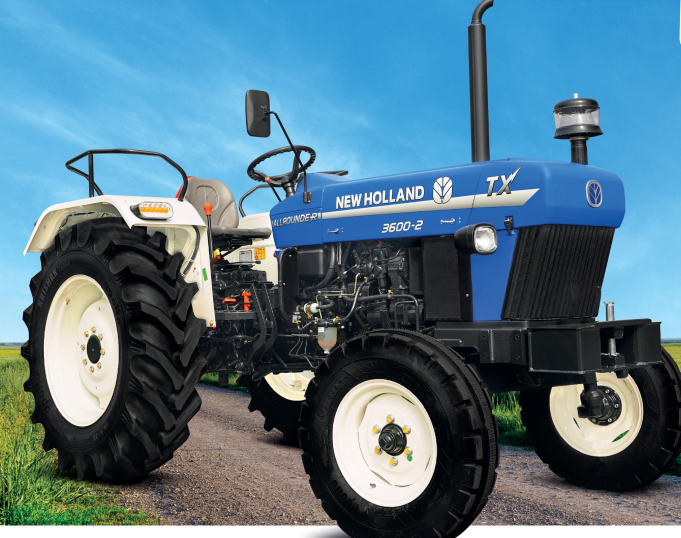

New Holland 3600-2 TX All Rounder Plus 2WD – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
3600-2 TX All Rounder Plus 2WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT S8000 series |
|
Engine Type |
Naturally Aspirated |
|
Engine Power |
36.94 kW (49.5 HP) |
|
Rated RPM |
2100 |
|
Air Cleaner Type |
Oil Bath Type with Pre-Cleaner |
|
Clutch |
Double Clutch with Independent PTO Clutch Lever |
|
Transmission Type |
Constant Mesh |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Rear Axle Type |
Outboard Reduction |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Real Oil Immersed Multi Disk Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.5 in x 16 in (165.1 mm x 406.4 mm) |
|
Rear Tyres |
14.9 in x 28 in (378.46 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
Sensomatic24 Hydraulic (1700 kg) |
|
Lift-O-Matic with DRC & Isolator Valve |
Yes |
|
PTO Type |
540 + GSPTO |
|
PTO HP |
46 HP (34.3 kW) |
|
Fuel Tank Capacity |
60 L |
|
Battery & Alternator |
88 Ah Battery & 45 Amp Alternator |
|
Overall Length |
3465 mm |
|
Width |
1815 mm |
|
Height |
2390 mm |
|
Wheelbase |
2040 mm |
|
Ground Clearance |
445 mm |
|
Weight |
2060 kg |
|
Additional Features |
Clear-lens Head Lamp with DRL, LED Fender Lamps, New Side Muffler, Heat Guards, Improved platform height with double footsteps, Softek Clutch with Safety lock, 55 kg Front Weight Carrier, Lift-O-Matic with Height Limiter |
|
Optional Features |
12 Forward + 3 Reverse Creeper Gears, 12 Forward + 3 Reverse UG Gears, Partial Synchro Mesh Transmission, Sensomatic24 Hydraulic (2000 kg), Reverse PTO (with UG Gear Box), Potato Special Axle 48", ROPS with Fiber Canopy, Remote Valve, Double Metal Face Sealing, 7.5 in x 16 in (190.5 mm x 406.4 mm) Front Tyres |
