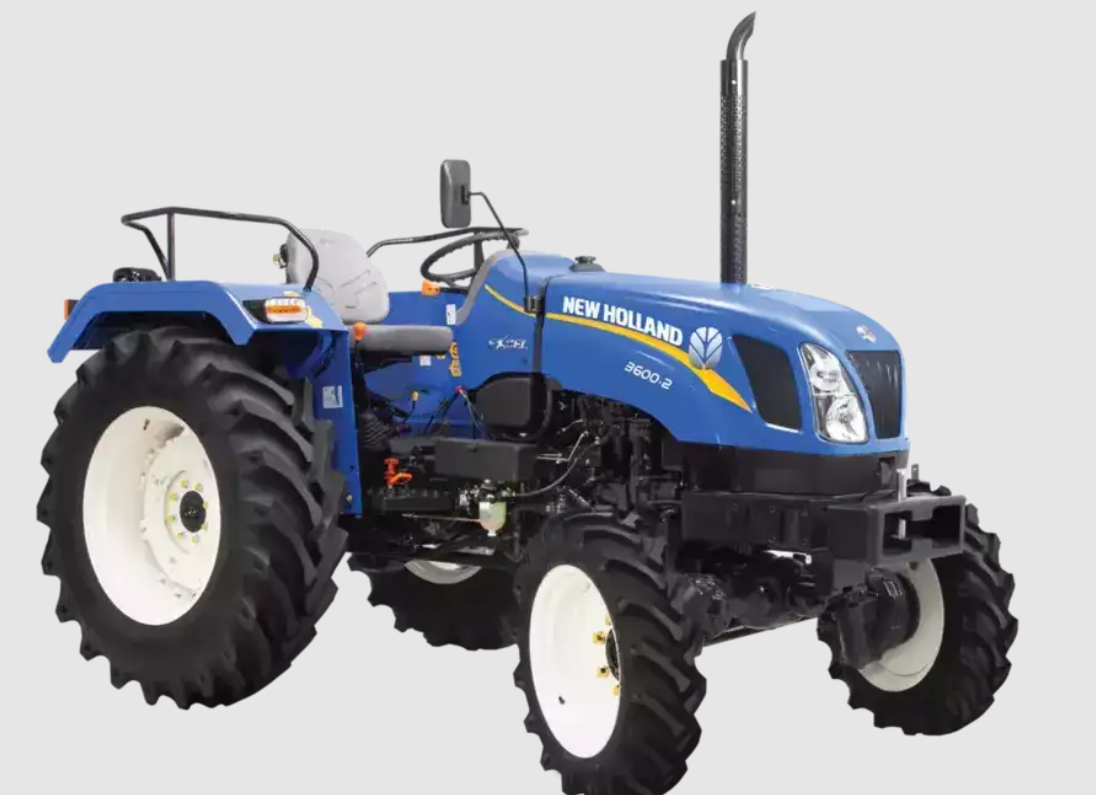

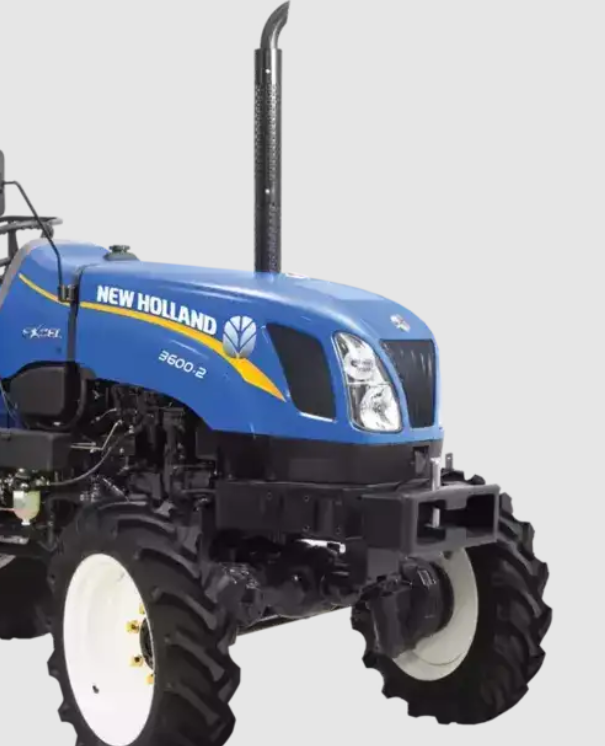

New Holland 3600-2 Excel 4WD – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
3600-2 Excel 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
FPT S8000 series |
|
Engine Type |
Naturally Aspirated |
|
Engine Power |
36.94 kW (49.5 HP) |
|
Rated RPM |
2100 |
|
Air Cleaner Type |
Dry Type Air Cleaner |
|
Clutch |
Double Clutch with Independent PTO Clutch Lever |
|
Transmission Type |
Constant Mesh AFD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Rear Axle Type |
Straight Axle Planetary Drive |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Real Oil Immersed Multi Disk Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
9.5 in x 20 in (241.3 mm x 508 mm) |
|
Rear Tyres |
14.9 in x 28 in (378.46 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
High Precision (1800 kg) |
|
Lift-O-Matic with DRC & Isolator Valve |
Yes |
|
PTO Type |
540 Std & Rev PTO |
|
PTO HP |
46 HP (34.3 kW) |
|
Fuel Tank Capacity |
60 L |
|
Battery & Alternator |
88 Ah Battery & 45 Amp Alternator |
|
Overall Length |
3610 mm |
|
Width |
1810 mm |
|
Height |
2370 mm |
|
Wheelbase |
2040 mm |
|
Ground Clearance |
385 mm |
|
Weight |
2145 kg |
|
Additional Features |
LED Fender Lamps, Deluxe Driver Seat, Softek Clutch with Safety Lock, Multisensing with DRC Valve, Tipping Trailer Pipe, Neutral Safety Switch, 55 kg Front Weight Carrier, Rear Weight (32 Kg each side), Double Metal Face Sealing |
|
Optional Features |
8 Forward + 8 Reverse Gears, 16 Forward + 4 Reverse Gears, 16 Forward + 16 Reverse Gears, EPTRA PTO (7 PTO Speed Options), Synchro Shuttle, Speed Tech Gear Box, Potato Special Axle 48", Stabilizer Bar, Remote Valve, MHD & STS Axle, 9.5 in x 24 in (241.3 mm x 609.6 mm) Front Tyres, 15.9 in x 28 in (403.86 mm x 711.2 mm) Rear Tyres |
