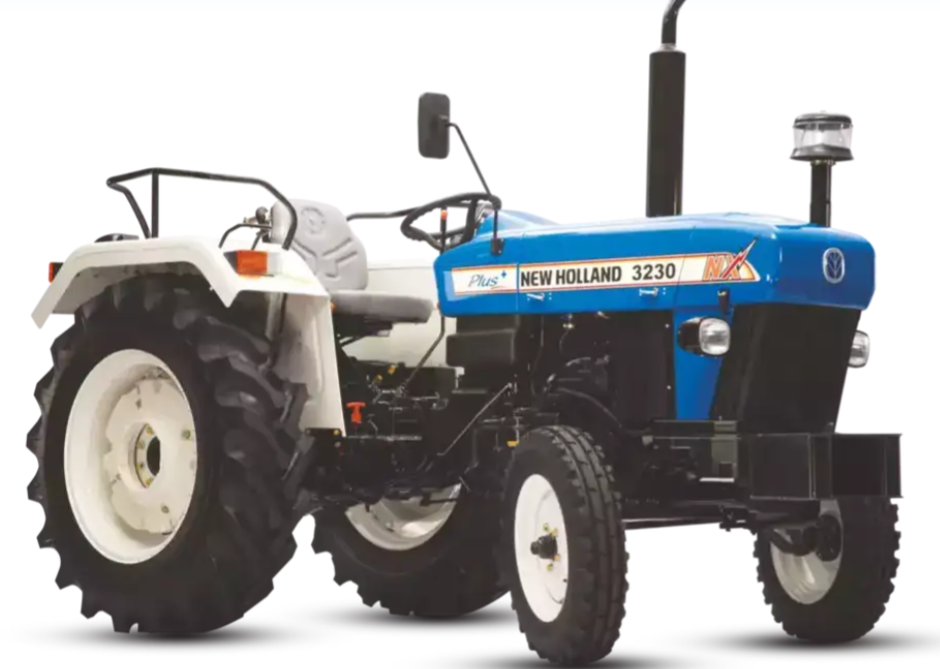

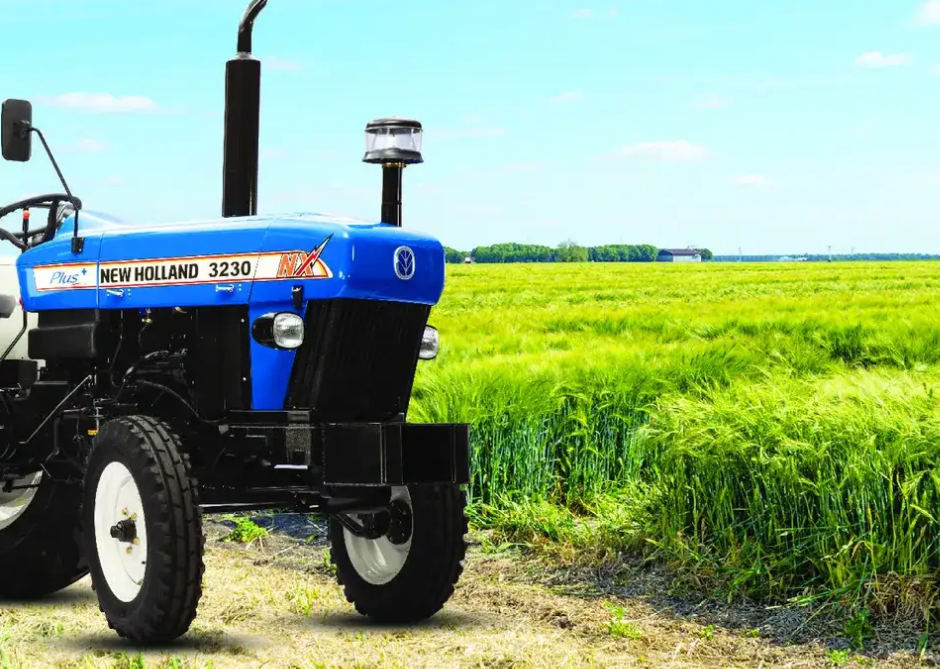

New Holland 3230 NX – Agricultural Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
3230 NX |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
T-IIIA, Simpson 325 |
|
Engine Type |
Naturally Aspirated |
|
Engine Power |
31.31 kW (42 HP) |
|
Rated RPM |
2000 |
|
Air Cleaner Type |
Oil bath type with Pre-cleaner |
|
Clutch |
Single Clutch |
|
Transmission Type |
Constant Mesh AFD Side Shift |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Rear Axle Type |
Outboard Reduction |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Multi Disc Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 in x 16 in (152.4 mm x 406.4 mm) |
|
Rear Tyres |
13.6 in x 28 in (345.44 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
1500 kg Normal Hydraulic |
|
Lift-O-Matic |
Yes |
|
PTO Type |
540S |
|
PTO HP |
39 HP (29.08 kW) |
|
Fuel Tank Capacity |
42 L |
|
Battery & Alternator |
88 Ah & 35 Amp |
|
Overall Length |
3270 mm |
|
Width |
1680 mm |
|
Height |
2260 mm |
|
Wheelbase |
1920 mm |
|
Ground Clearance |
385 mm |
|
Weight |
1750 kg |
|
Max Road Speed |
33.06 KMPH @ Rated RPM |
|
Additional Features |
Heavy Duty Front Axle Support, Softek Clutch, Multisensing with DRC Valve, Tipping Trailer Pipe, Neutral Safety Switch, Antiglare Rear View Mirror, Polymer Fuel Tank |
|
Optional Features |
Double Clutch with IPTO, Mechanical Steering, Independent PTO Clutch Lever, PTO 540E |
