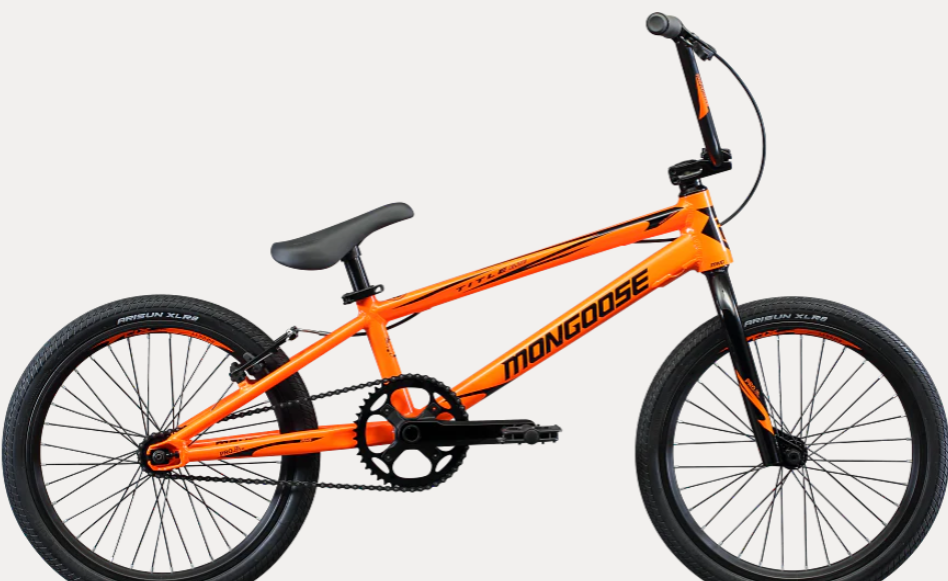

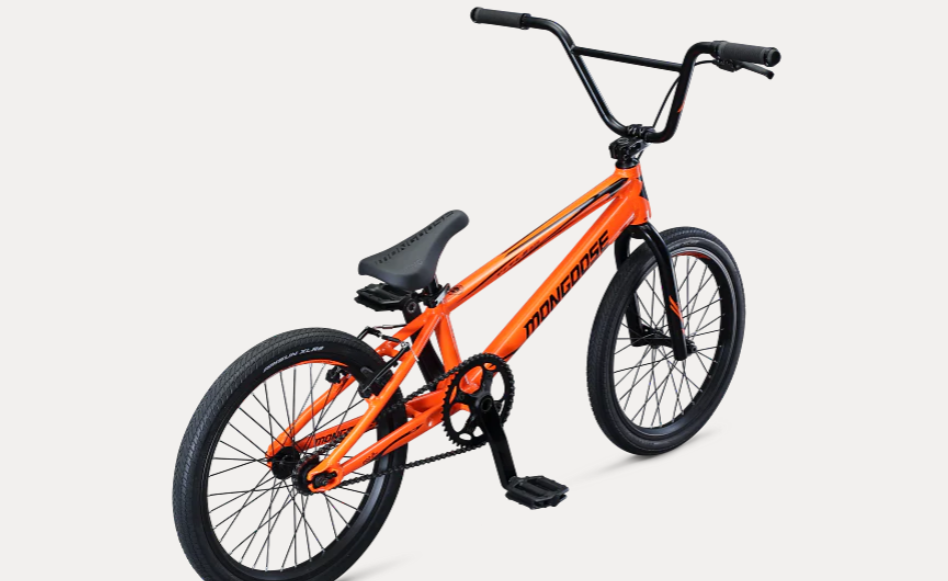

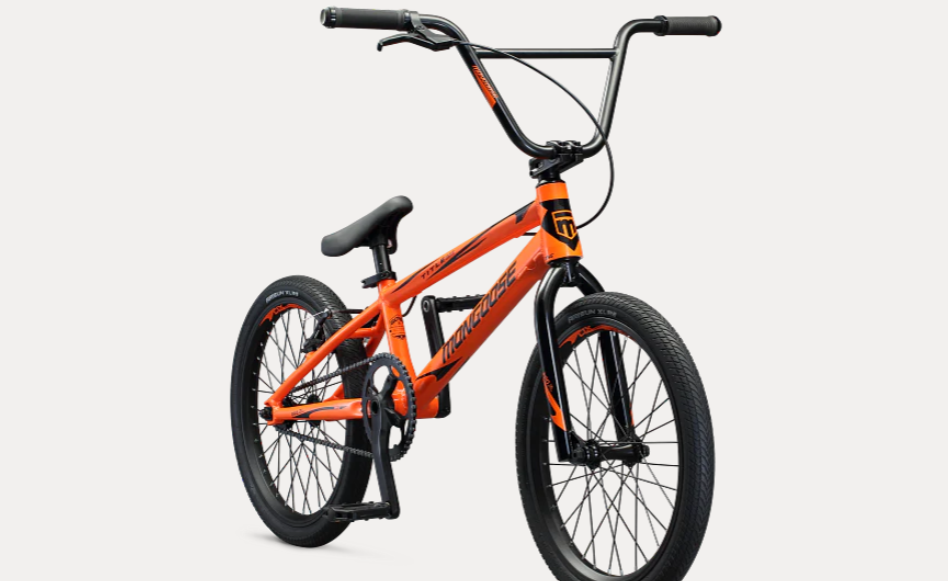

2025 Mongoose Title Elite Pro XL 20in – BMX Bike
Specifications
|
Specification |
Details |
|
Model |
Title Elite Pro XL 20in |
|
Vehicle Category |
BMX Bike |
|
Application |
BMX racing |
|
Starting Price (2025) |
$649.99 USD |
|
Color Options |
Orange |
|
Sizes |
One size (5'7" - 6'0") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Tectonic T1, aluminum biaxial hydroformed and butted, BMX Race geometry, 86mm press fit BB shell, internal cable routing, 3D Forged, 10 mm dropout, tapered headtube |
|

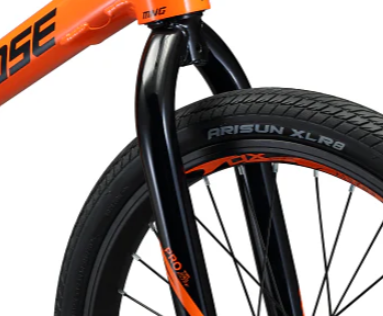

Fork |
4130 chromoly |
|
Crank |
Samox 2-piece, aluminum 175 mm, 24 mm hollow spindle, 4-arm with 44T chainring |
|
Chain |
KMC S1 |
|
Bottom Bracket |
BB86 press-fit sealed bearing |
|
Shifters |
Single-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Mongoose Unifier Pro, 1 piece rails |
|
Wheels/Tyres |
Arisun XLR8, 20 in x 1.95 in front, 1.75 in rear, wire bead |
|
Wheel Size |
20" front, 20" rear |
|
Brakes |
Linear pull, aluminum |
|
Brake Levers |
Aluminum |
|

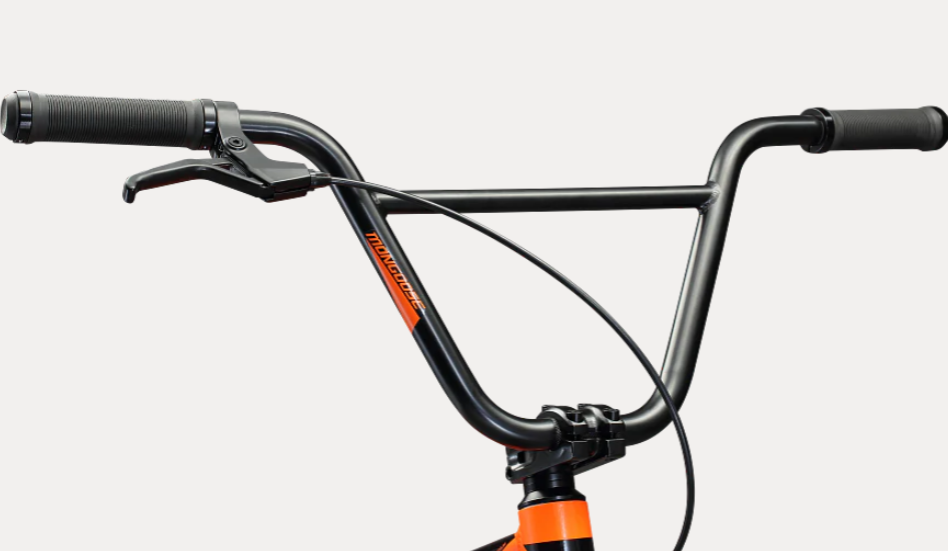

Handlebar |
Mongoose 4130, 4130 chromoly, 27.5 in width, 8.5 in rise |
|
Stem |
Mongoose, threadless top load, 50 mm |
|
Headset |
Threadless, 1-1/8" sealed integrated, taper compatible |
|
Saddle |
Mongoose Unifier Pro, 1 piece rails |
|
Seatpost |
Aluminum, 250 mm, 27.2 mm |
|
Grips |
Mongoose Gate, lock-on, 140 mm |
|
Front Hub |
Aluminum, sealed-bearing, 3/8 in bolt, 32H |
|
Rear Hub |
Aluminum, sealed-bearing cassette, 3/8 in axle, 36H |
|
Rims |
Xposure Infinity-XD, aluminum double wall, 30 mm ID, 32H front, 36H rear |
|
Spokes |
14G, steel, black |
|
Pedals |
Mongoose, nylon |
|
Exterior Features |
QR seat clamp |
|
Weight |
3.3 lbs (frame only) |
