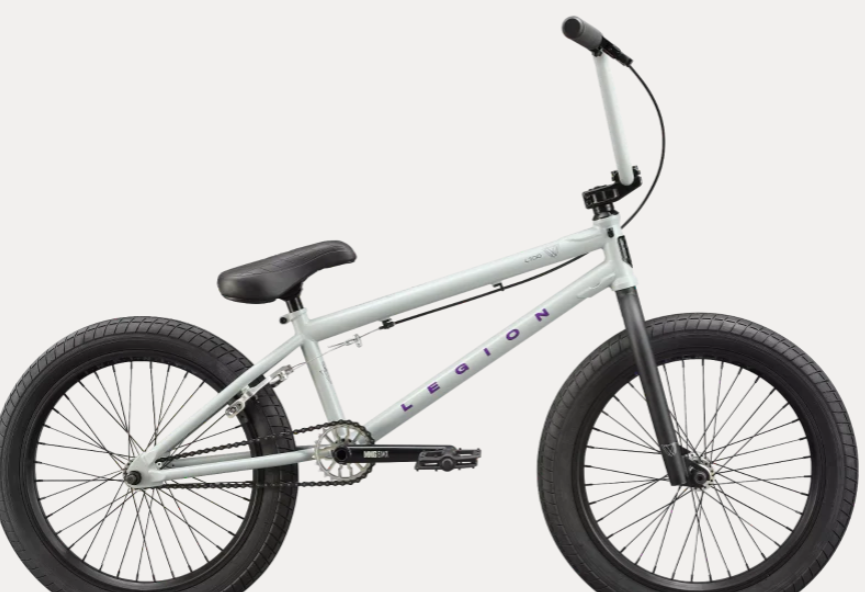

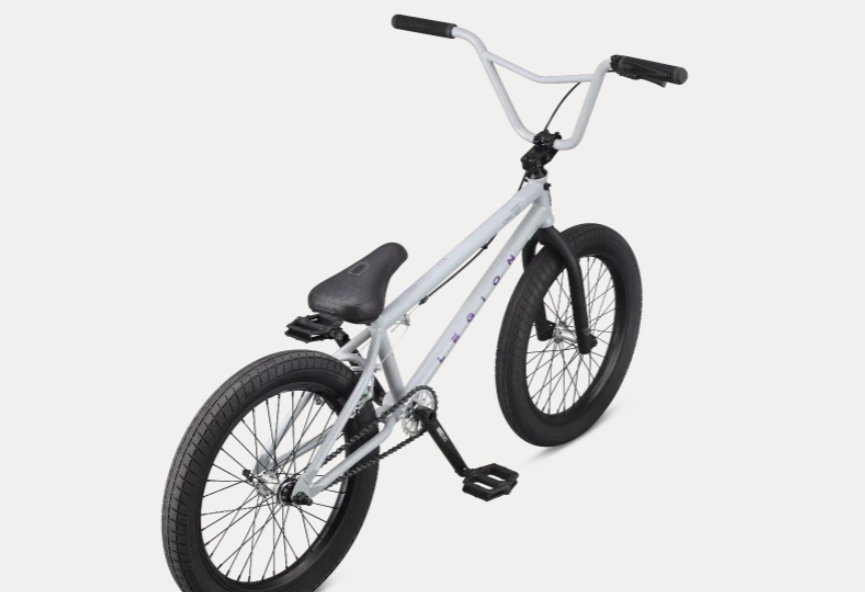

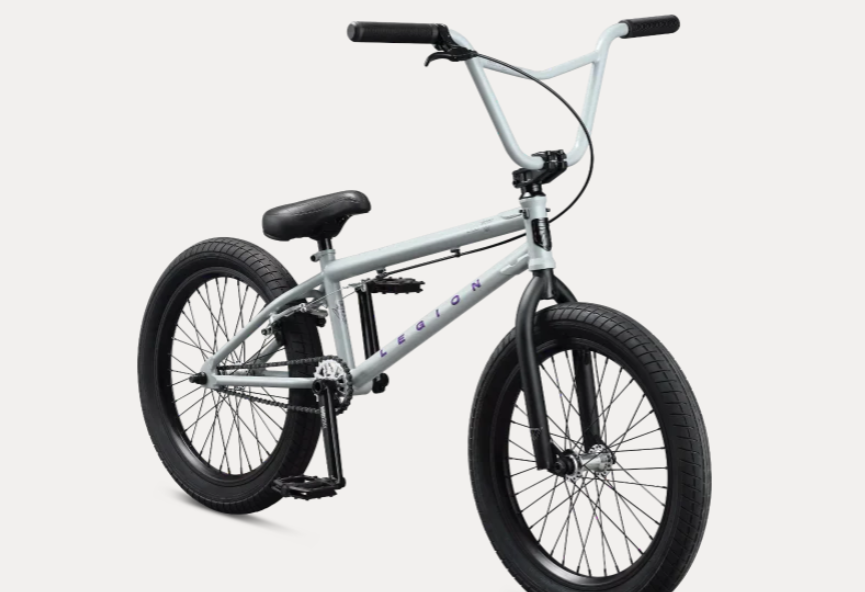

2025 Mongoose Legion L100 – BMX Bike
Specifications
|
Specification |
Details |
|
Model |
Legion L100 |
|
Vehicle Category |
BMX Bike |
|
Application |
Freestyle BMX (park, street, dirt) |
|
Starting Price (2025) |
$569.99 USD |
|
Color Options |

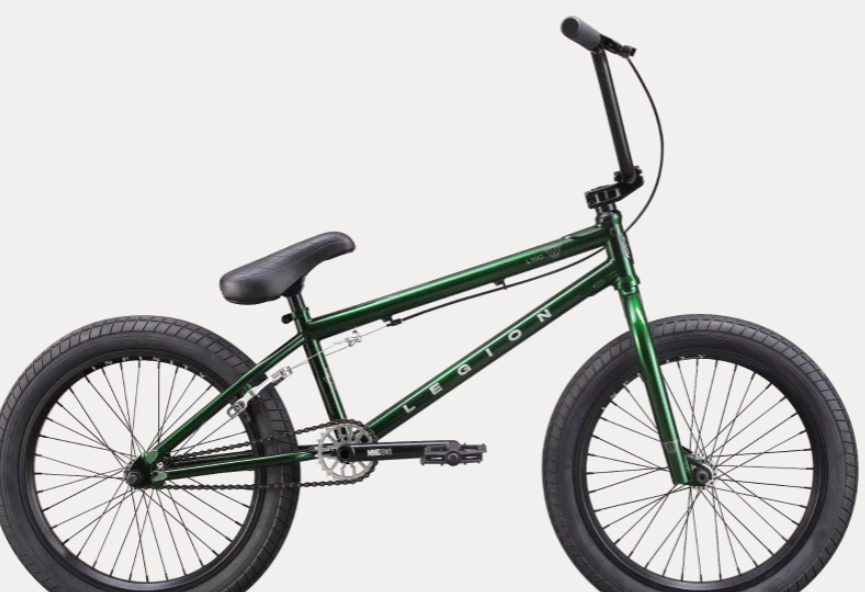

Grey Green |
|
Sizes |
One size (20" wheels, 5'8" and up riders) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
4130 chromoly, BMX freestyle geometry, removable brake mounts, integrated headset, mid BB shell |
|
Fork |
4130 chromoly |
|
Crank |
2-piece, tubular chromoly hollow spindle, 175 mm, 25T aluminum chainring |
|
Chain |
KMC S1 |
|
Bottom Bracket |
Mid sealed bearing, 8-spline spindle |
|
Shifters |
Single-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Mongoose Pivotal |
|
Wheels/Tyres |
20 in x 2.4 in, wire bead |
|
Wheel Size |
20" front, 20" rear |
|
Brakes |
U-brake, aluminum |
|

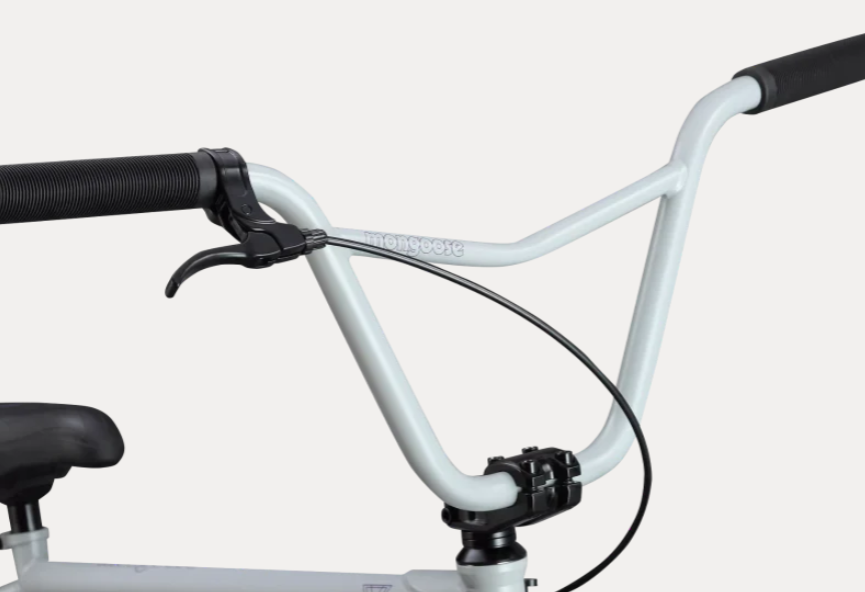

Handlebar |
Mongoose, 4130 chromoly, 29 in width, 8.75 in rise |
|
Stem |
Mongoose, threadless top load, 50 mm |
|
Headset |
Threadless, integrated 1-1/8”, cartridge bearing |
|
Saddle |
Mongoose Pivotal |
|
Seatpost |
Pivotal, steel, 250 mm, 25.4 mm |
|
Grips |
Mongoose MushXL, 160 mm |
|
Front Hub |
Aluminum, ball bearing, 3/8 in axle, 36H |
|
Rear Hub |
Aluminum, sealed-bearing cassette, 14 mm axle, 36H |
|
Rims |
Xposure Infinity-XD, aluminum double wall, 30 mm ID, 36H |
|
Spokes |
14G, steel, black |
|
Pedals |
Mongoose, nylon |
