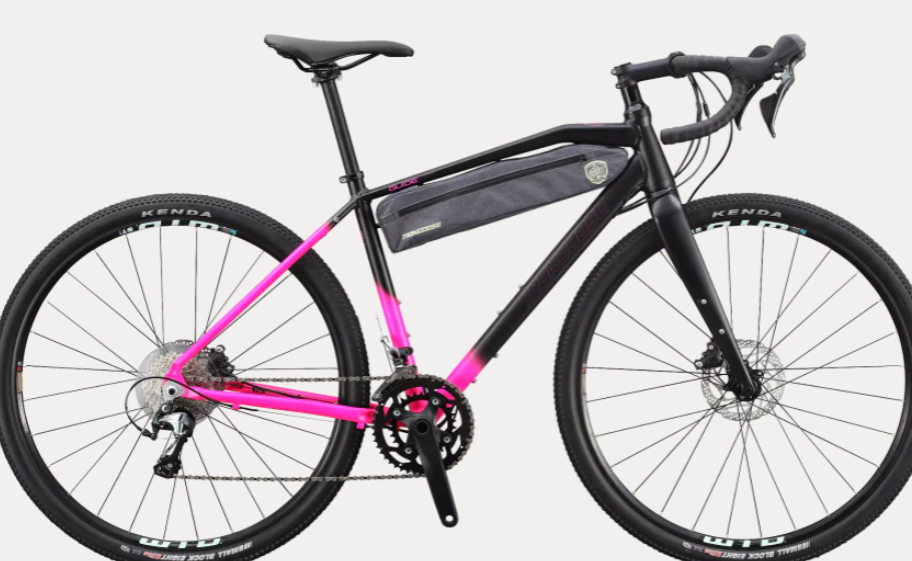

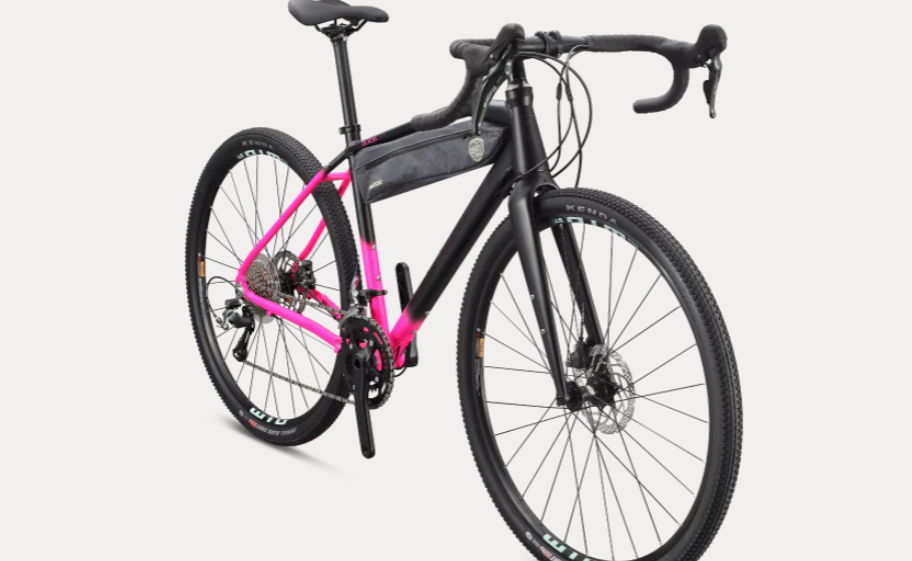

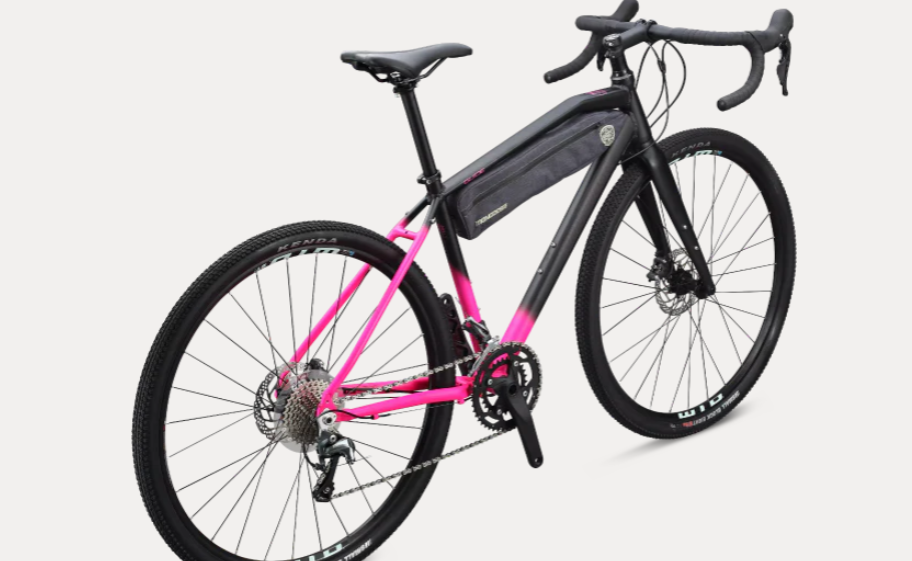

2025 Mongoose Guide Comp – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Guide Comp |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel riding and bikepacking |
|
Starting Price (2025) |
$1,099.99 USD |
|
Sizes |
XS, SM, LG, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Tectonic T2, aluminum, 700c adventure geometry, internal cable routing, 12 mm x 148 mm dropout, replaceable hanger, tapered headtube |
|
Fork |
Mongoose, 700c, carbon, 12 mm x 100 mm, thru axle, rigid |
|

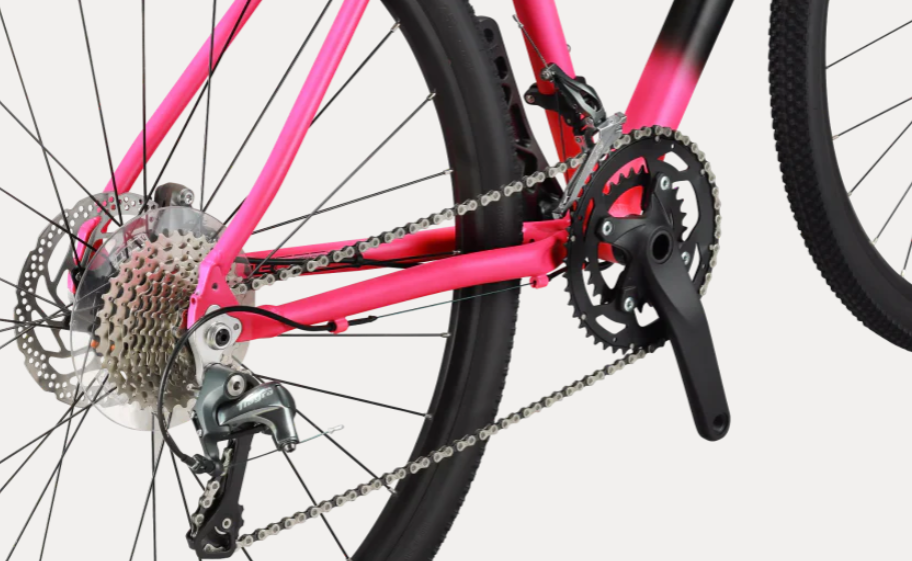

Crank |
Samox TAM31-232, aluminum, 46/30T |
|
Chain |
KMC X10 |
|
Bottom Bracket |
Samox, external, 3-piece, threaded 68 mm shell |
|

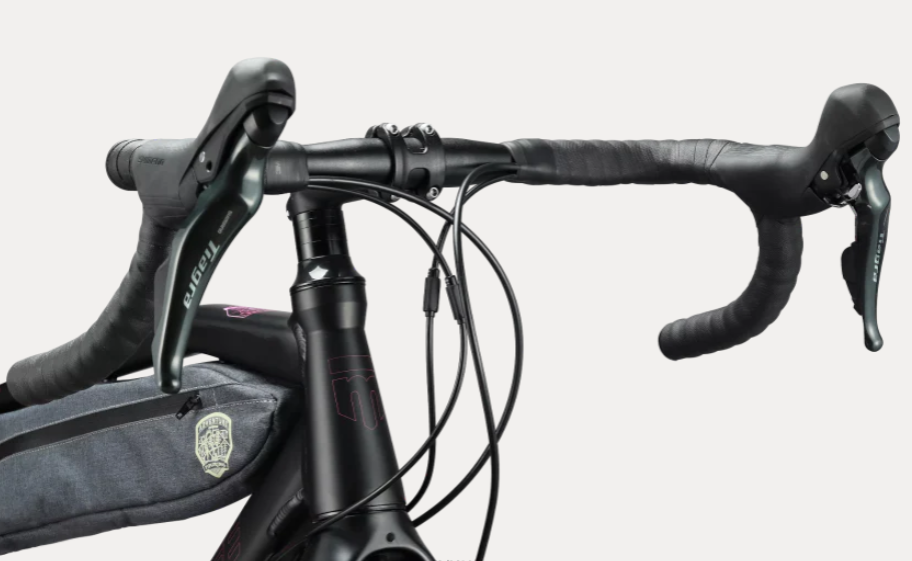

Shifters |
Shimano Tiagra ST-RS405, 2 x 10 |
|
Front Derailleur |
Shimano FD-4700, band clamp |
|
Rear Derailleur |
Shimano Tiagra RD-4601 |
Components & Features
|
Specification |
Details |
|
Seating |
Mongoose adventure, steel rails |
|
Wheels/Tyres |
Kenda Small Block, 700 x 47c, wire bead |
|
Wheel Size |
700c front, 700c rear |
|
Brakes |
Shimano BR-S405 flat mount, hydraulic, aluminum, 160 mm rotor |
|
Brake Levers |
Shimano BR-S405, integrated with shifters |
|
Handlebar |
Xposure, aluminum, 450 mm - 510 mm width, 31.8 mm clamp |
|
Stem |
Xposure diecast, threadless, 90 mm/100 mm, 7°, 31.8 mm clamp |
|
Headset |
Threadless, ZS44/ZS56, retainer bearing |
|
Saddle |
Mongoose adventure, steel rails |
|
Seatpost |
Xposure, aluminum, 350 mm, zero offset, 31.6 mm |
|
Grips |
Xposure, non-slip tape |
|
Front Hub |
Xposure, aluminum, ball bearing, 12 mm x 100 mm, 32H, 6-bolt |
|
Rear Hub |
Xposure, aluminum, ball bearing, 12 mm x 142 mm, 32H, 6-bolt |
|
Rims |
WTB ST-19, aluminum double wall, 19 mm ID, 32H, tubeless compatible |
|
Spokes |
14G, stainless steel |
|
Pedals |
Mongoose, nylon |
|
Exterior Features |
Frame bag |
