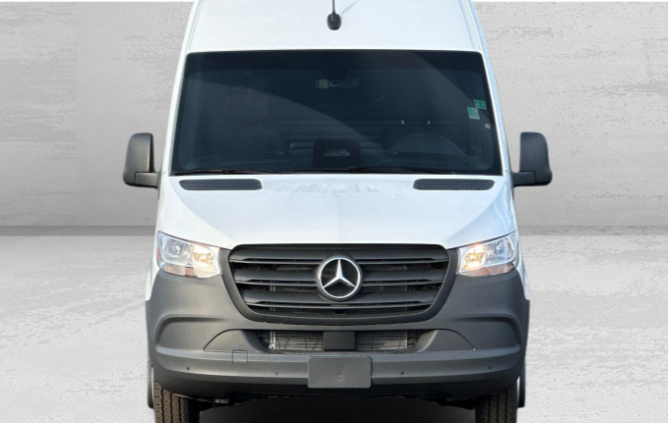

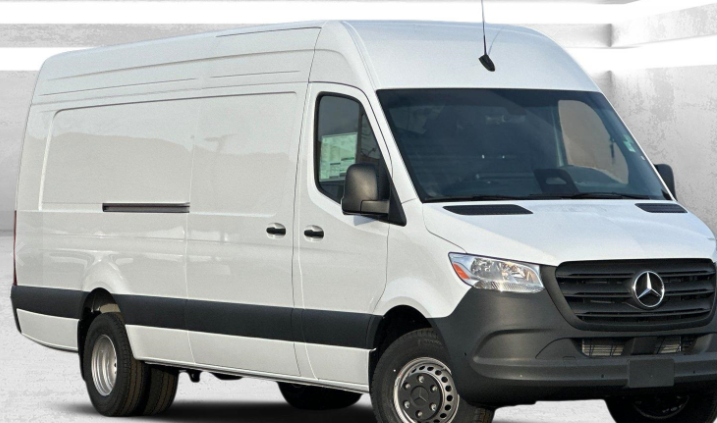

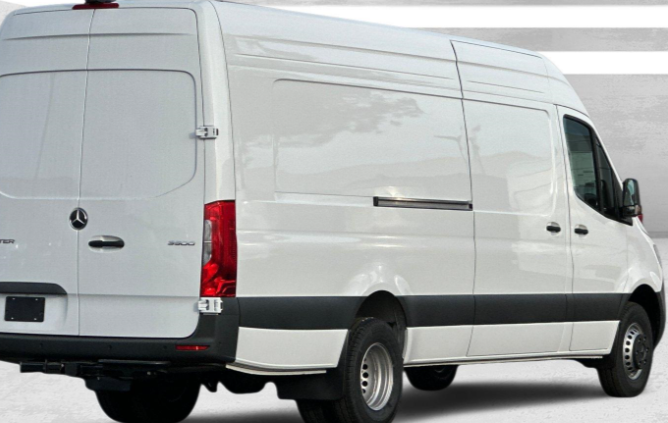

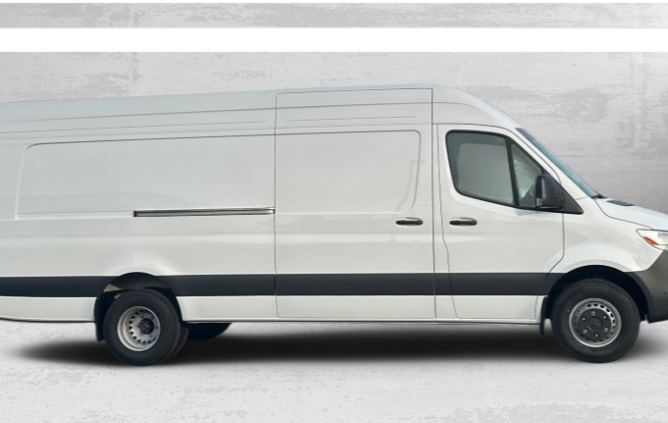

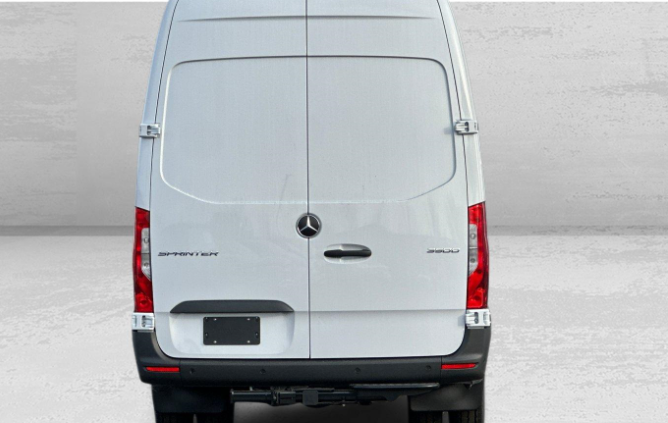

Mercedes-Benz Sprinter 2500 2025 – Commercial Van
Specifications
|
Specification |
Details |
|
Engine |
2.0L 4-cylinder turbodiesel, Standard Output: 170 hp @ 3800 rpm, 295 lb-ft @ 1400 rpm; High Output: 211 hp @ 3800 rpm, 332 lb-ft @ 1400 rpm |
|
Transmission |
9-speed automatic (9G-TRONIC) |
|
Drivetrain |
Rear-wheel drive (standard), All-wheel drive (optional with High Output engine) |
|
Wheelbase |
144 in, 170 in (Cargo Van also available in 170 in extended) |
|
Roof Height |
Standard (~100 in), High (~107–111 in, configuration-dependent) |
|
Overall Length |
234 in (144" WB), 274 in (170" WB), 290 in (170" WB extended, Cargo only) |
|
Overall Width |
92 in (with mirrors) |
|
Cargo Volume |
Cargo: 319 cu ft (144" WB, standard roof), 374 cu ft (144" WB, high roof), 488.1 cu ft (170" WB, high roof), 533 cu ft (170" WB extended, high roof); Crew: ~370 cu ft |
|
Payload Capacity |
4,211 lbs (standard roof), 4,134 lbs (high roof) |
|
Towing Capacity |
5,000 lbs |
|
Seating Capacity |
Cargo: 2–3; Crew: Up to 5; Passenger: Up to 15 |
|
Fuel Tank Capacity |
24.5 gallons |
|
Curb Weight |
4,839 lbs (standard roof), 4,916 lbs (high roof) |
|
GVWR |
9,050 lbs |
|
Price (MSRP) |
Cargo: $50,900–$69,650; Crew: $56,195–$63,605; Passenger: $59,850–$78,301(Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Body-on-frame, steel construction |
|
Engine Type |
2.0L 4-cylinder turbodiesel, DOHC, direct injection |
|
Transmission |
9-speed automatic with torque-on-demand AWD |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent, MacPherson struts, coil springs |
|
Rear Suspension |
Leaf springs, rigid axle |
|
Brakes |
Four-wheel disc brakes with ABS, Active Brake Assist |
Wheels & Tires
|
Specification |
Details |
|
Wheels |
16-inch steel wheels, optional alloy |
|
Tires |
LT245/75R16 |
Components & Features
|
Specification |
Details |
|
Infotainment |
MBUX system, 7-inch or 10.3-inch touchscreen, voice control (“Hey Mercedes”), Bluetooth, optional navigation |
|
Safety Features |
Active Brake Assist, Crosswind Assist, Blind Spot Assist, Rear Cross Traffic Alert, 360-degree camera, Lane Keeping Assist, tire pressure monitoring |
|
Comfort Features |
Heated driver’s seat, multifunction steering wheel with capacitive sensors, USB-C ports, optional heated steering wheel, optional wireless charging |
Available Colors
|
Specification |
Details |
|
Colors |
Arctic White, Hightech Silver, Jet Black, Blue Grey, Steel Blue, Black Blue, Graphite Grey, Silver Grey, more |
