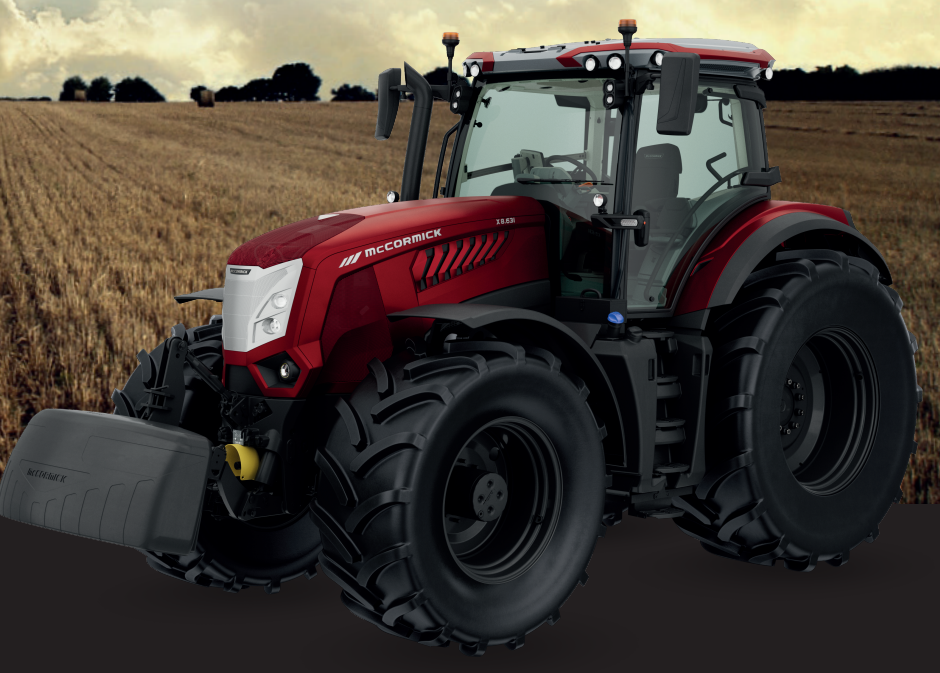

McCormick X8.627 VT-Drive – High-End Agricultural Tractor for Heavy-Duty Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
X8.627 VT-Drive |
|
Vehicle Category |
High-End Agricultural Tractor |
|
Fuel Type |
Diesel |
|
Application |
Heavy-Duty Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 6.7 L, FPT N67, Iso-Mounted on Cast Iron Chassis, eVGT with Intercooler |
|
Rated Horsepower |
250 HP (184 kW) |
|
Maximum Horsepower |
273 HP (201 kW) @ 1800 RPM |
|
Maximum Torque |
1173 Nm @ 1400 RPM |
|
Transmission Type |
VT-Drive, Continuously Variable Transmission, 4 Stages |
|
Transmission Control |
EasyPilot with Multifunction Armrest |
|
Minimum Speed |
40 m/h @ 2200 RPM |
|
Engine Speed at 40 km/h |
1300 RPM (Standard), 1580 RPM (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Parallelogram Suspension System |
|
Rear Axle |
Flanged Type (Standard), Bar Axle Type (Optional) |
|
Braking System |
Oil-Bath Disc Brakes (Front), Pneumatic Brake System with 2 or 2+1 Lines, with or without 2-Line Hydraulic Brake System (Optional), Engine Brake (Standard) |
|
Cab Suspension |
Clever Cab, 4-Post with McCormick Semi-Active Electrohydraulic Suspension |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres Front |
650/65R34 (IR 775 mm) |
|
Standard Tyres Rear |
900/60R42 (IR 1025 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V - Tier 4 Final, HI-eSCR2 |
|
Maintenance Interval |
1000 hours (BIC - Best in Class System) |
|
Fuel Tank Capacity |
550 L (145.3 gal) |
|
AdBlue/DEF Tank Capacity |
71 L (18.8 gal) |
|
PTO Type |
Rear: 540E/1000/1000E RPM, Front: Electrohydraulic Multidisc Clutch with Modulated Engagement, 1000 RPM (Optional) |
|
Hydraulic System |
CCLS Closed Center Load Sensing, 212 L/min, 4+3 Electrohydraulic Remote Valves, 140 L/min (Standard), 6+3 Electrohydraulic Remote Valves (Optional), Flow Divider with 3 Sections, 60 L/min per Section (Optional) |
|
Rear 3-Point Hitch |
Category III (Standard), IV N (Optional), Electronically-Controlled with Lower Link Draft Control, Position Control, Mixed Control, Float Position, 12000 kg, 120 mm Ram |
|
Front 3-Point Hitch |
Electronically-Controlled with Position Control, 5000 kg |
|
Wheelbase |
3000 mm |
|
Shipping Weight |
11000 kg (24251 lb) |
|
Gross Vehicle Weight |
16000 kg (35274 lb) |
|
Operator Platform |
Clever Cab, 4-Post with Semi-Active Electrohydraulic Suspension, In-Cab Noise Level 67 dB(A), EasyPilot with Multifunction Armrest, DSM Data Screen Manager with 12" Touchscreen Monitor (Standard), DSM Plus with 12" Digital Instrument Cluster and 12" Main Touchscreen Monitor (Optional), Alpine Touchscreen DAB Radio with Apple CarPlay, Android Auto, 4 Alpine Speakers, Bluetooth, Integrated Microphone, 20 LED Work Lights |
|
Onboard Technology |
PSM Precision Steering Management, Rear ISOBus, EazySteer with EGNOS Full Kit (20 cm Precision) or RTK NTRIP Full Kit (2 cm Precision) (Optional), McCormick Fleet and Remote Diagnostics Management Ready (1 Year Standard, 3 or 5 Years Optional), McCormick Farm Pro Pack (Selected Markets) |
