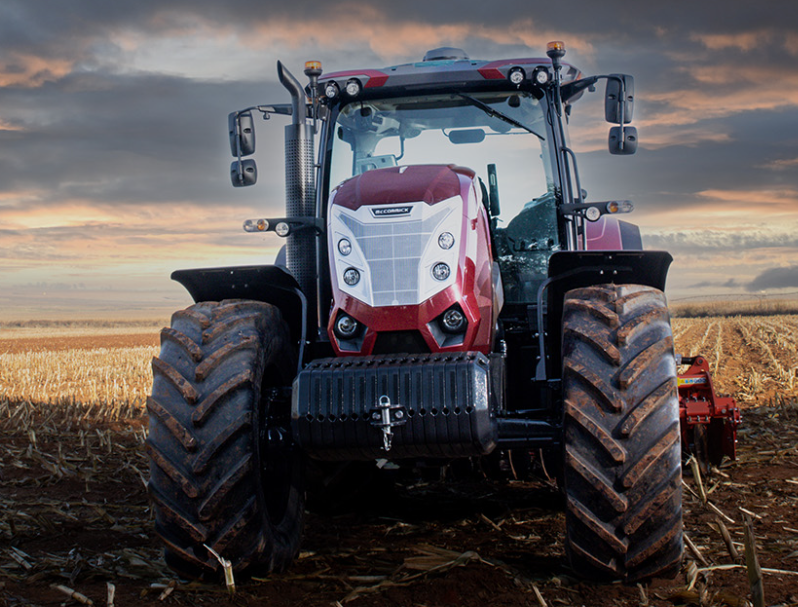

McCormick X7.623 VT-Drive – Utility Tractor for Heavy-Duty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
X7.623 VT-Drive |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Farming, Contracting, Heavy-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 6.7 L, FPT N67, 24 Valves, Turbo Intercooler, Electronically-Controlled High Pressure Common Rail, Iso-Mounted on Cast Iron Chassis |
|
Rated Horsepower |
205 HP (151 kW) @ 2200 RPM |
|
Maximum Horsepower |
230 HP (169 kW) @ 1900 RPM |
|
Maximum Torque |
966 Nm @ 1400 RPM |
|
Torque Backup |
36% (41% with EPM) |
|
Transmission Type |
VT-Drive Continuously Variable, 4-Stage |
|
Transmission Control |
EasyPilot with Multi-Function Armrest, Auto/Manual/PTO/Cruise Modes |
|
Minimum Speed |
40 m/h @ 2200 RPM |
|
ECO Engine Speed at 40 km/h |
1550 RPM |
|
ECO Engine Speed at 50 km/h |
1690 RPM (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid (Standard), IFS Independent Front Wheel Suspension (Optional), Electrohydraulic 4WD Engagement |
|
Front Differential Lock |
Fully Electrohydraulic |
|
Rear Axle |
Flanged (Standard), Bar Axle (Optional), Fully Electrohydraulic Differential Lock |
|
Braking System |
5 Oil-Cooled Discs (Rear), Automatic 4WD Engagement While Braking (Front), Engine Brake, Pneumatic Brake System with 2 or 2+1 Lines per MR or 2-Line Hydraulic Brake System per MR (Optional, 40 km/h only) |
|
Cab Suspension |
4-Post with Mechanical Suspension (Standard), Electronically-Controlled Electrohydraulic Semi-Active Suspension (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
600/60R30 (IR 700 mm) |
|
Rear Tyre Size |
710/60R42 (IR 925 mm) |
|
Max Track Width |
2550 mm |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3 |
|
Maintenance Interval |
1000 hours |
|
Fuel Tank Capacity |
350 L |
|
AdBlue/DEF Tank Capacity |
52 L |
|
Cooling System Capacity |
29 L |
|
PTO Type |
Rear: Electrohydraulic Multidisc Clutch with Modulated Engagement, 540/540E/1000/1000E, Front: Electrohydraulic Multidisc Clutch with Modulated Engagement, 1000 RPM (Optional) |
|
PTO Speeds |
Rear: 540/540E/1000/1000E (2005/1608/1995/1600 RPM), Front: 1000 RPM (1920 RPM) |
|
Hydraulic System |
Closed-Centre Load Sensing (CCLS), 123 L/min (Standard), 160 L/min (Optional), 52 L/min Steering Pump, 3-6 Electrohydraulic Remote Valves (100 L/min), 3-Section Flow Divider with 60 L/min per Section (Optional), Free Flow Return, Power Beyond Ready (Optional), 2 Electrohydraulic Mid-Mounted Remote Valves with Multi-Function Joystick (100 L/min, Optional) |
|
Rear 3-Point Hitch |
Electronically-Controlled, Category III, Ball Ends with Quick-Hitch Hooks, Lower Link Draft/Position/Mixed/Float Control, 9300 kg Lift Capacity (100 mm Ram) |
|
Front 3-Point Hitch |
Electronically-Controlled, Category III N, Ball Ends with Quick-Hitch Hooks, Position Control, 3500 kg Lift Capacity (Optional) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2820 mm |
|
Height from Top of Cab to Rear Axle Centre |
2180 mm (2295 mm with PSM) |
|
Max Height over Cab |
3044 mm (3159 mm with PSM) |
|
Overall Length with Front Weights |
5360 mm |
|
Shipping Weight |
8300 kg |
|
Gross Vehicle Weight |
13000 kg |
|
Operator Platform |
Première 4-Post Cab, In-Cab Noise Level 70 dB(A), Automatic Climate Control, Deluxe Air Suspension Seat (Optional Super Deluxe with Dynamic Damping, Alcantara, Ventilation), Hide-Away Buddy Seat, Radio DAB MP3 with Bluetooth (Standard), 18 Halogen or 20 LED Work Lights (Optional), Beacon Lights |
|
Onboard Technology |
DSM 12" Touch Screen Monitor, MyFunctions, MyLights, MyHMF, MyUser, Front/Rear ISObus (Optional), PSM Precision Steering Management (EGNOS or RTK NTRIP, Optional), Fleet & Remote Diagnostics Management (1-Year Standard, 3/5-Year Optional) |
