Specification

Details

Tractor Model

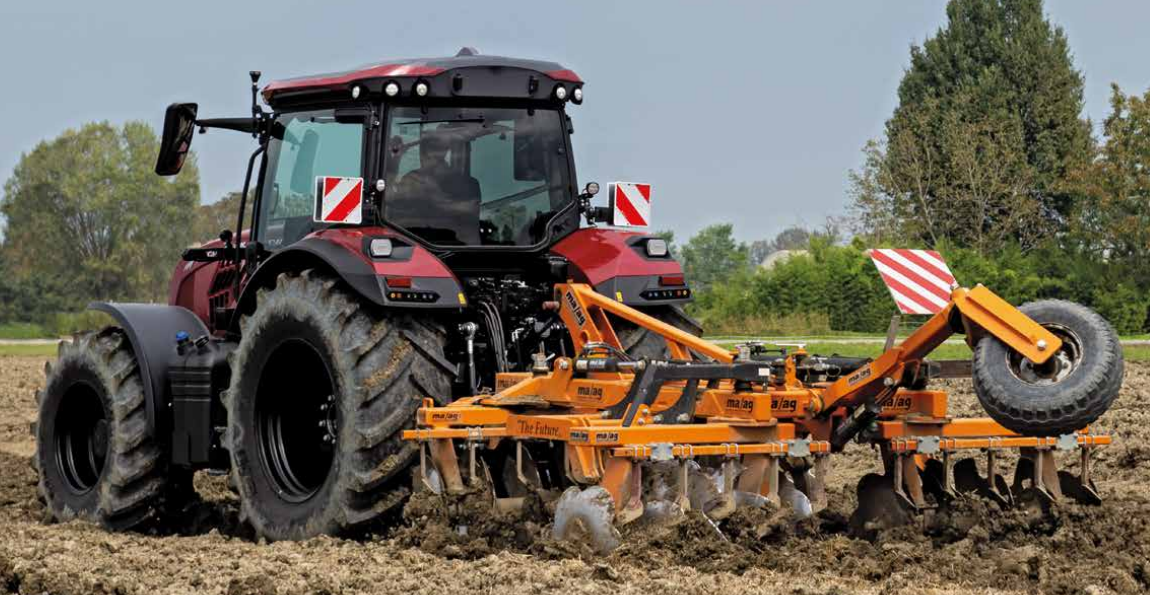

X7.620 P6-Drive

Vehicle Category

High-End Agricultural Tractor

Fuel Type

Diesel

Application

Heavy-Duty Agricultural Tasks

Specification

Details

Engine

6 cylinders, 6.7 L, FPT N67, Iso-Mounted on Cast Iron Chassis, Turbo Intercooler, Common Rail

Rated Horsepower

175 HP (129 kW)

Maximum Horsepower

180 HP (132 kW), 190 HP (140 kW) with EPM @ 1900 RPM

Maximum Torque

756 Nm, 778 Nm with EPM @ 1400 RPM

Transmission Type

P6-Drive, 6 Powershift Speeds, 5 Robotised Ranges, 30 FWD + 15 REV, 54 FWD + 27 REV with Creeper

Transmission Control

EasyPilot with Multifunction Armrest, Electrohydraulic Forward/Reverse Shuttle with Modulation Control, APS Auto PowerShift

Minimum Speed

40 m/h @ 2200 RPM

Engine Speed at 40 km/h

1300 RPM (Standard), 1580 RPM (Optional)

Specification

Details

Front Axle

Rigid (Standard), Independent Front Wheel Suspension System (IFS, Optional), Electrohydraulic 4WD, Fully Electrohydraulic Differential Lock

Rear Axle

Flanged Type (Standard), Bar Axle Type (Optional), Fully Electrohydraulic Differential Lock

Braking System

Automatic 4WD Engagement While Braking, 5 Oil-Bath Discs (Rear), Pneumatic Brake System with 2 or 2+1 Lines, with or without 2-Line Hydraulic Brake System (Optional), Engine Brake (Standard)

Cab Suspension

Clever Cab, 4-Post with McCormick Mechanical Suspension (Standard), Semi-Active Electrohydraulic Suspension (Optional)

Specification

Details

Standard Tyres Front

600/60R30 (IR 700 mm)

Standard Tyres Rear

710/60R42 (IR 925 mm)

Specification

Details

Emissions System

Stage V - Tier 4 Final, HI-eSCR2

Maintenance Interval

1000 hours (BIC - Best in Class System)

Fuel Tank Capacity

320 L (84.5 gal)

AdBlue/DEF Tank Capacity

52 L (13.7 gal)

Cooling System Capacity

29 L (7.7 gal)

PTO Type

Rear: Electrohydraulic Multidisc Clutch, 540/540E/1000/1000E RPM, 1-3/8” Shaft with 6 or 21 Splines, Front: Electrohydraulic Multidisc Clutch, 1000 RPM, 1-3/8” Shaft with 6 Splines (Optional)

Hydraulic System

CCLS Closed Center Load Sensing, 160 L/min, Steering Pump 52 L/min, 4 Electrohydraulic Remote Valves, 100 L/min (Standard), 5 or 4+2 Electrohydraulic Remote Valves (Optional), 2 Mid-Mounted Electrohydraulic Valves with Multifunction Joystick, 100 L/min (Optional), Flow Divider with 3 Sections, 60 L/min per Section (Optional), Free-Flow Return (Standard), Power Beyond Adaptor (Optional)

Rear 3-Point Hitch

Category III, Electronically-Controlled with Lower Link Draft Control, Position Control, Mixed Control, Float Position, 9300 kg, 100 mm Ram

Front 3-Point Hitch

Category III N, Electronically-Controlled with Position Control, 3500 kg (Optional)

Front Loader Ready Kit

Mid-Mounted Valves Only (Optional)

Wheelbase

2820 mm

Max Height

3044 mm (without Beacon Lights, with Tyres 540/65R30 - 650/65R42)

Max Length

5360 mm (with Front Weights)

Max Width

2550 mm (with Tyres 600/60R30 - 710/60R42)

Steering Radius

5400 mm (with Tyres 540/65R30 - 650/65R42)

Shipping Weight

8000 kg (17637 lb)

Gross Vehicle Weight

13500 kg (29762 lb)

Operator Platform

Clever Cab, 4-Post, In-Cab Noise Level 68 dB(A), Automatic Climate Control, Deluxe Air Suspension Seat (Standard), Super Deluxe Air Suspension Seat with Dynamic Damping, Alcantara Upholstery (Optional), Trainer Seat, EasyPilot with Multifunction Armrest, DSM Data Screen Manager with 12” Touchscreen Monitor (Standard), DSM Plus with 12” Digital Dashboard and 12” Touchscreen Monitor (Optional), MyFunctions, MyLights, MyHMF, Alpine Touchscreen DAB Radio with Apple CarPlay, Android Auto, 4 Alpine Speakers, Bluetooth, Aux-In, Integrated Microphone, 18 Halogen or 20 LED Work Lights, LED Beacon Lights (Left and Right)

Onboard Technology

Front and Rear ISOBus Connection (Optional), PSM Precision Steering Management, Rear ISOBus, EazySteer with EGNOS Full Kit (20 cm Precision) or RTK NTRIP Full Kit (2 cm Precision) (Optional), McCormick Fleet & Remote Diagnostics Management Ready (1 Year Standard, 3 or 5 Years Optional), McCormick Farm Pro Pack (Selected Markets)
