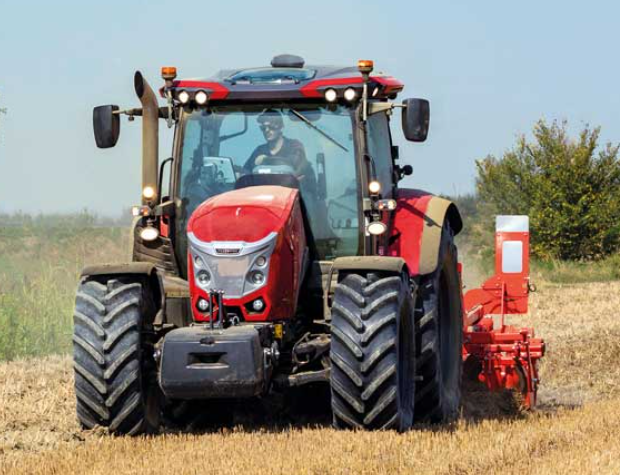

McCormick X7.618 P6-Drive – High-End Agricultural Tractor for Heavy-Duty Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
X7.618 P6-Drive |
|
Vehicle Category |
High-End Agricultural Tractor |
|
Fuel Type |
Diesel |
|
Application |
Heavy-Duty Agricultural Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 6.7 L, FPT N67, Structural Engine, Turbo Intercooler |
|
Maximum Horsepower |
165 HP (122 kW), 175 HP (129 kW) with EPM @ 1900 RPM |
|
Maximum Torque |
694 Nm, 737 Nm with EPM @ 1400 RPM |
|
Transmission Type |
P6-Drive, 6 Powershift Speeds, 5 Robotised Ranges, 30 FWD + 15 REV, 54 FWD + 27 REV with Creeper |
|
Transmission Control |
EasyPilot with Multifunction Armrest, APS Auto PowerShift |
|
Minimum Speed |
3.2 km/h without Creeper, 0.4 km/h with Creeper |
|
Engine Speed at 40 km/h |
1577 RPM (Standard), 1971 RPM (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Independent Front Wheel Suspension System (IFS, Optional) |
|
Rear Axle |
Flanged Type (Standard), Bar Axle Type (Optional) |
|
Braking System |
Automatic 4WD Engagement While Braking, Pneumatic Brake System with 2 or 2+1 Lines, with or without 2-Line Hydraulic Brake System (Optional), Engine Brake (Standard) |
|
Cab Suspension |
Clever Cab, 4-Post with McCormick Mechanical Suspension |
Wheels & Tyres
|
Specification |
Details |
|
Standard Tyres Front |
600/60R28 (IR 675 mm) |
|
Standard Tyres Rear |
710/60R38 (IR 875 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V - Tier 4 Final, HI-eSCR2 |
|
Maintenance Interval |
500 hours |
|
Fuel Tank Capacity |
280 L (73.9 gal) |
|
AdBlue/DEF Tank Capacity |
46 L (12.2 gal) |
|
PTO Type |
Rear: 540/540E/1000/1000E RPM, Front: Electrohydraulic Multidisc Clutch, 1000 RPM (Optional) |
|
Hydraulic System |
CCLS Closed Center Load Sensing, 123 L/min (Standard), 160 L/min (Optional), 3 Electrohydraulic Remote Valves, 100 L/min (Standard), 4, 5, 3+2, or 4+2 Electrohydraulic Remote Valves (Optional), Flow Divider with 3 Sections, 60 L/min per Section (Optional) |
|
Rear 3-Point Hitch |
Category III, Electronically-Controlled with Lower Link Draft Control, Position Control, Mixed Control, Float Position, 9300 kg, 100 mm Ram |
|
Front 3-Point Hitch |
Electronically-Controlled with Position Control, 3500 kg (Optional) |
|
Wheelbase |
2760 mm |
|
Shipping Weight |
7000 kg (15432 lb) |
|
Gross Vehicle Weight |
11500 kg (25353 lb) |
|

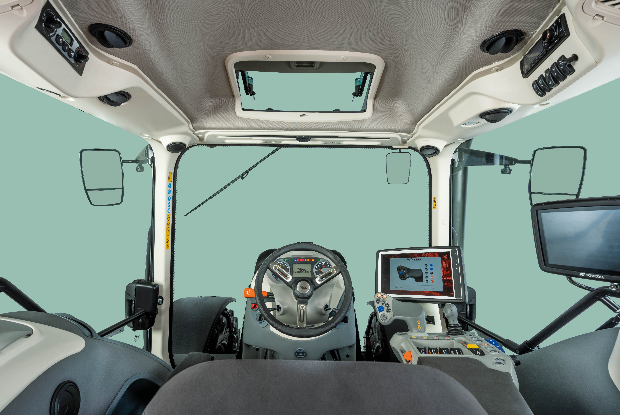

Operator Platform |
Clever Cab, 4-Post with McCormick Mechanical Suspension, In-Cab Noise Level 68 dB(A), EasyPilot with Multifunction Armrest, DSM Data Screen Manager with 12” Touchscreen Monitor (Standard), DSM Plus with 12” Digital Instrument Cluster and 12” Main Touchscreen Monitor (Optional), Alpine Touchscreen DAB Radio with Apple CarPlay, Android Auto, 4 Alpine Speakers, Bluetooth, Integrated Microphone, 18 Halogen or 20 LED Work Lights |
|
Onboard Technology |
PSM Precision Steering Management, Rear ISOBus, EazySteer with EGNOS Full Kit (20 cm Precision) or RTK NTRIP Full Kit (2 cm Precision) (Optional), McCormick Fleet & Remote Diagnostics Management (1 Year Standard, 3 or 5 Years Optional), McCormick Farm Pro Pack (Selected Markets) |
