McCormick X7.145 T-TRONIC – Utility Tractor for Modern Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
X7.145 T-TRONIC |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Modern Farming and Contracting |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 6.7 L, FPT NEF 2V, 104 mm Bore, 132 mm Stroke, Water Cooling, Dry Air Filter 11” with Ejector |
|
Maximum Horsepower |
141 HP (104 kW) @ 2200 RPM |
|
Maximum Torque |
625 Nm (461 lb) @ 2200 RPM |
|
Transmission Type |
Xtrashift 3-Powershift + Power Shuttle, 54 FWD + 18 REV (Standard), 105 FWD + 36 REV with Creeper (Optional) |
|
Clutch |
Multi-Disc Wet Clutch, De-Clutch Control Button-Operated |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid Type, Electrohydraulic 4WD Engagement, Max Steering Angle 55° |
|
Differential Locks |
Twin-Lock Electrohydraulic Diff-Locks |
|
Braking System |
Rear Graphite Wet Disc Brakes (10 Discs), Front Graphite Wet Disc Brakes (4 Discs) |
|
Trailer Braking System |
Hydraulic Trailer Brake (Optional), Pneumatic Trailer Brake (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
480/65R28 |
|
Rear Tyres |
600/65R38 |
|
Overall Width (Min - Max) |
2220 - 2520 mm (56.5 - 64 in) |
|
Front Track Adjustment |
1590 - 2208 mm (62.5 - 87 in) |
|
Rear Track Adjustment |
1764 - 2264 mm (69.5 - 89 in) |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
260 L (68 gal) |
|
PTO Type |
Electrohydraulic Control, Hydra-PTO with Wet Multidisc Clutch |
|
PTO Speeds |
540/1000 RPM |
|
PTO Shaft |
1”3/8 (34.9 mm) with 21 Splines (Standard), 1”3/8 (34.9 mm) with 6 Splines (Optional) |
|
Net PTO Power |
120 HP (88 kW) |
|
Hydraulic System |
CCLS with Electrohydraulic Rear Hitch, 110 + 38 L/min, 3 Auxiliary Valves (Standard), 5 (Optional) |
|
Rear Hydraulic Hitch |
Electrohydraulic, Functions: Position and Mixed Control, Float Position, Shock Absorber, Category 2 Three-Point Linkage, Lifting Capacity 8400 kg (18480 lb) with 2 Assistor Rams Ø 100 mm, Hydraulic Levelling Rod & Hydraulic Top Link (Optional) |
|
Front Hydraulic Hitch |
Mechanically Operated, Raising/Lowering and Float Position, Lightweight Type, 2800 kg (6160 lb) Lifting Capacity, Category 2 Three-Point Linkage (Optional) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2800 mm (110 in) |
|
Height over Cab |
2980 mm (117.5 in) |
|
Ground Clearance |
500 mm (19.5 in) |
|
Overall Length with Ballast Weights |
5400 mm (212.5 in) |
|
Total Weight (without Ballast Weights) |
6000 kg (13200 lb) |
|

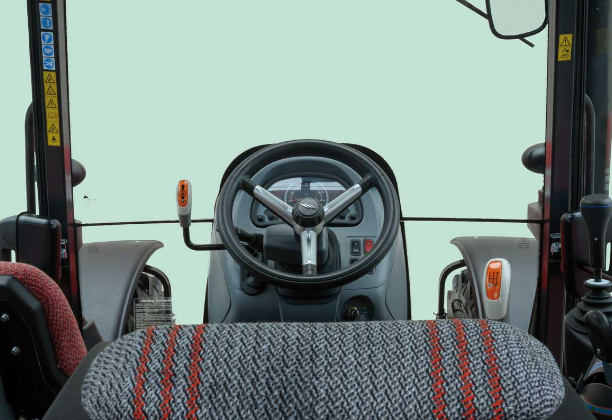

Operator Platform |
Deluxe Cab with Radio Ready, Air-Conditioning (Cab Version), Platform Version, Mechanical Suspension Seat (Standard), Air Suspension Seat (Optional) |
|
Onboard Technology |
Digital Dashboard |
|
Front Weights |
10 x 42 kg, Front Hitch Ballast 300 kg (Optional) |
